9.18. Replacement of Regulator
Diode (D5801)
• Refer to “Disassembly of SMPS P.C.B.”.

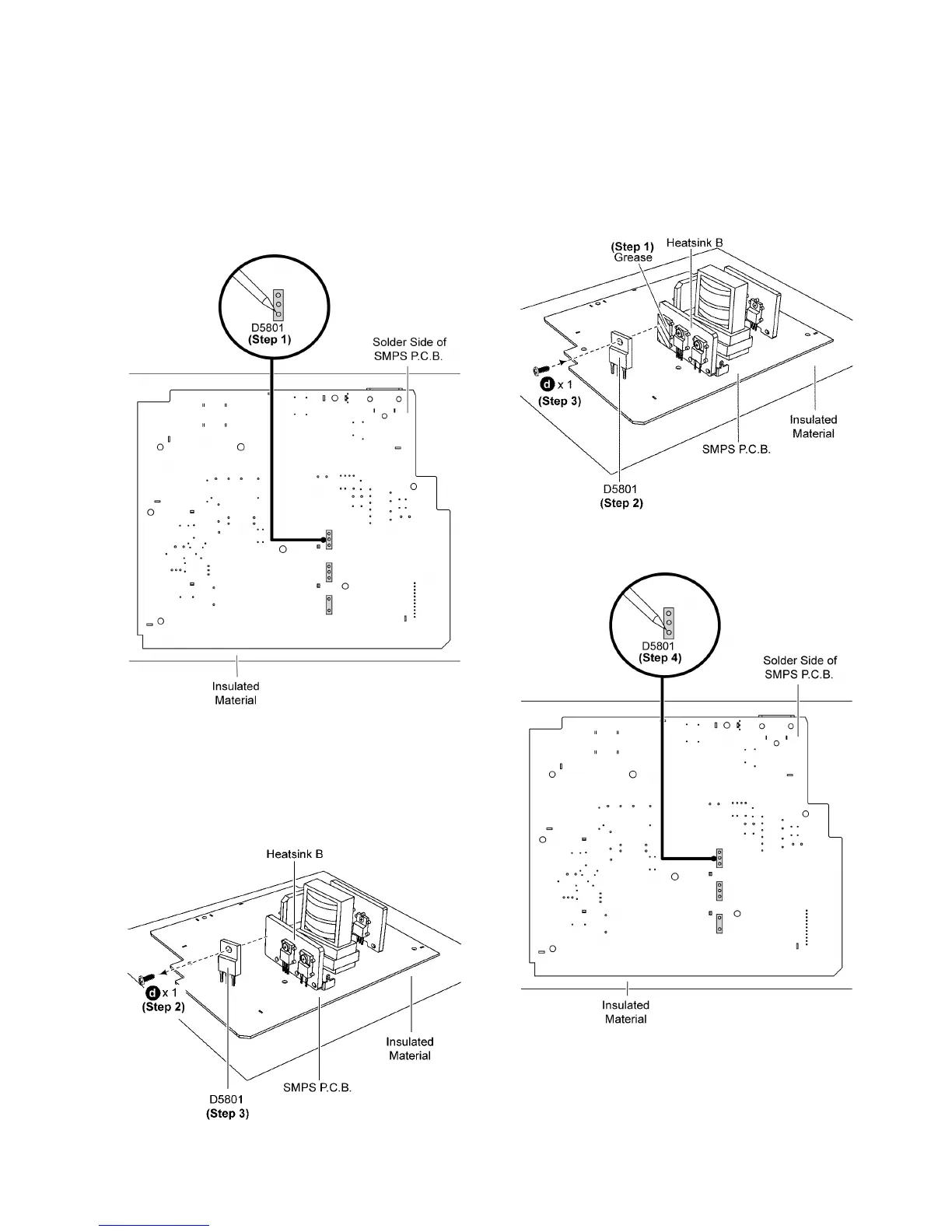

9.18.1. Disassembly of Regulator Diode
(D5801)
Step 1 Desolder pins of the Regulator Diode (D5801) on the
solder side of SMPS P.C.B.
Step 2 Remove 1 screw from the Regulator Diode (D5801).
Step 3 Remove the Regulator Diode (D5801) from the SMPS
P. C. B ..
Caution: Avoid touching the Heatsink B due to its high
temperature after prolonged use. Touching it may lead to
injuries.
9.18.2. Assembly of Regulator Diode
(D5801)
Step 1 Apply grease to the Heatsink B.
Step 2 Install the Regulator Diode (D5801) on SMPS P.C.B.
Caution: Ensure pins of the Regulator Diode (D5801) is
properly seated on SMPS P.C.B.
Step 3 Screw the Regulator Diode (D5801) to the Heatsink B.
Caution: Ensure the Regulator Diode (D5801) is tightly
screwed to the Heatsink B.
Step 4 Solder pins of the Regulator Diode (D5801) on the sol-
der side of SMPS P.C.B..
