Caution: Avoid touching the Heatsink A due to its high
temperature after prolonged use. Touching it may lead to
injuries.

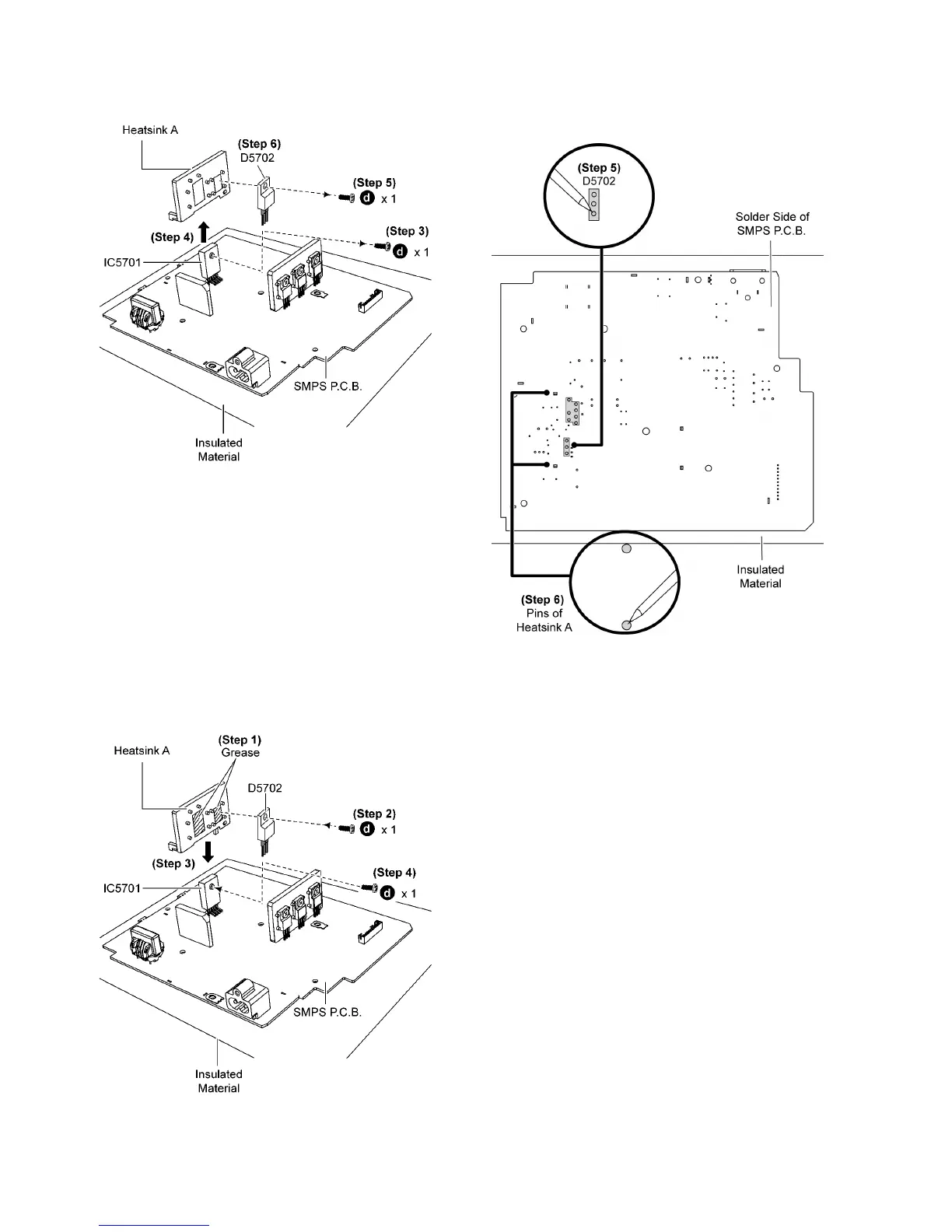

9.17.2. Assembly of Rectifier Diode
(D5702)
Step 1 Apply grease to the Heatsink A.
Step 2 Screw the Rectifier Diode (D5702) to the Heatsink A.
Caution: Ensure the Rectifier Diode (D5702) is tightly
screwed to the Heatsink A.
Step 3 Install the Heatsink A with Rectifier Diode (D5702) on
SMPS P.C.B. in the direction of arrow.
Caution: Ensure the Heatsink A with Rectifier Diode
(D5702) are properly seated on SMPS P.C.B.
Step 4 Screw the Switching Regulator IC (IC5701) to the Heat-
sink A.
Caution: Ensure that Switching Regulator IC (IC5701) is
tightly screwed to the Heatsink A.
Step 5 Solder pins of the Rectifier Diode (D5702) on the solder
side of SMPS P.C.B..
Step 6 Solder pins of the Heatsink A on the solder side of
SMPS P.C.B..
Caution: Ensure pins of the Rectifier Diode (D5702) are
properly seated and soldered on SMPS P.C.B..
