Panasonic SA-AKX10PH - Disassembly of D-Amp P.C.B.

41

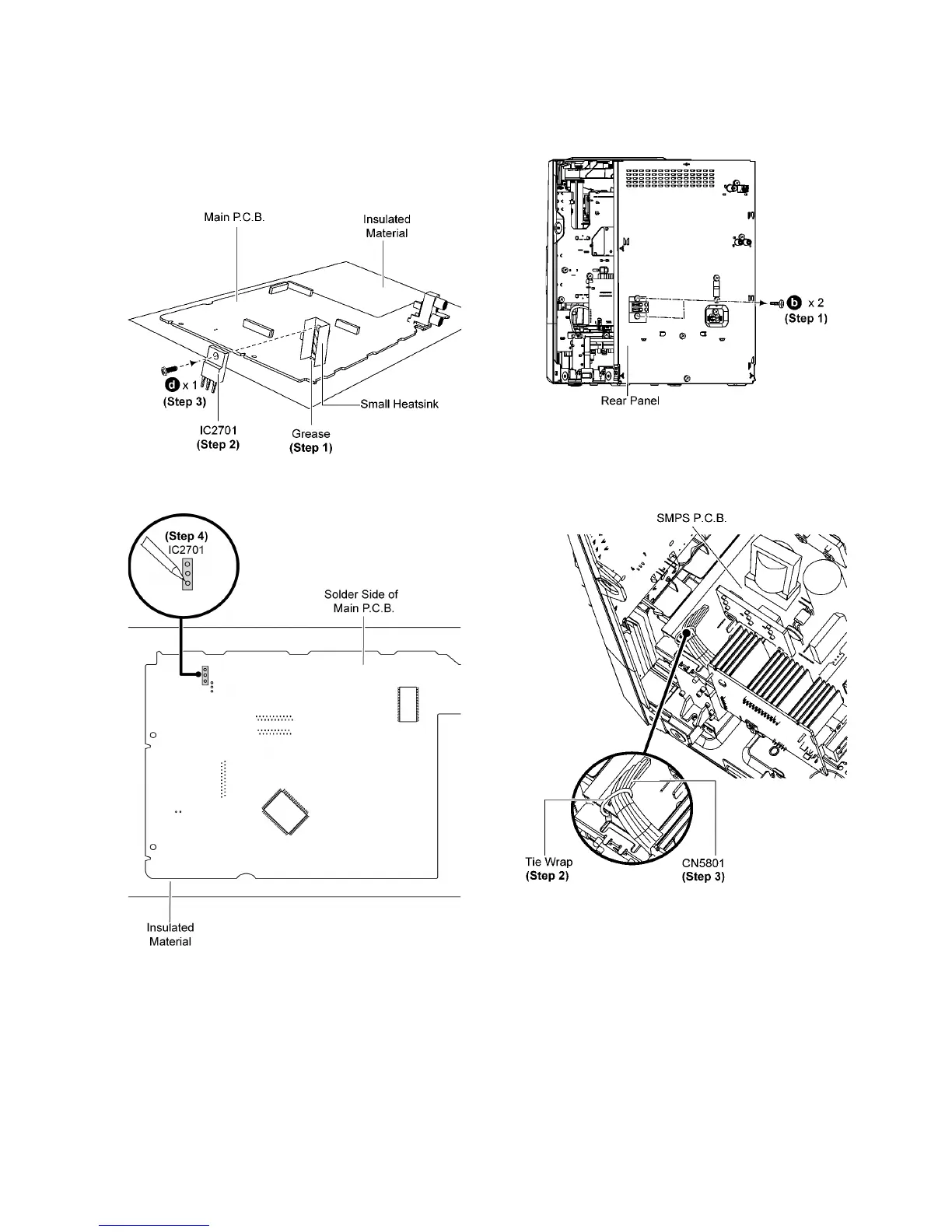

9.12.2. Assembly of Regulator IC (IC2701)
Step 1 Apply grease to the Small Heatsink.
Step 2 Mount the Regulator IC (IC2701) on Main P.C.B..
Caution: Ensure pins of the Regulator IC (IC2701) are prop-
erly seated on Main P.C.B..
Step 3 Screw the Regulator IC (IC2701) to the Small Heatsink.
Caution: Ensure the Regulator IC (IC2701) is tightly
screwed to the Small Heatsink.
Step 4 Solder pins of the Regulator IC (IC2701) on the solder
side of Main P.C.B..
9.13. Disassembly of D-Amp P.C.B.
• Refer to “Disassembly of Top Cabinet”.
Step 1 Remove 2 screws.
Step 2 Cut the Tie Wrap.
Caution: During assembling, tie the 6P Cable Wire with the
Tie Wrap to SMPS P.C.B. as diagram shown.
Step 3 Detach 6P Cable Wire at the connector (CN5801) on
SMPS P.C.B..
