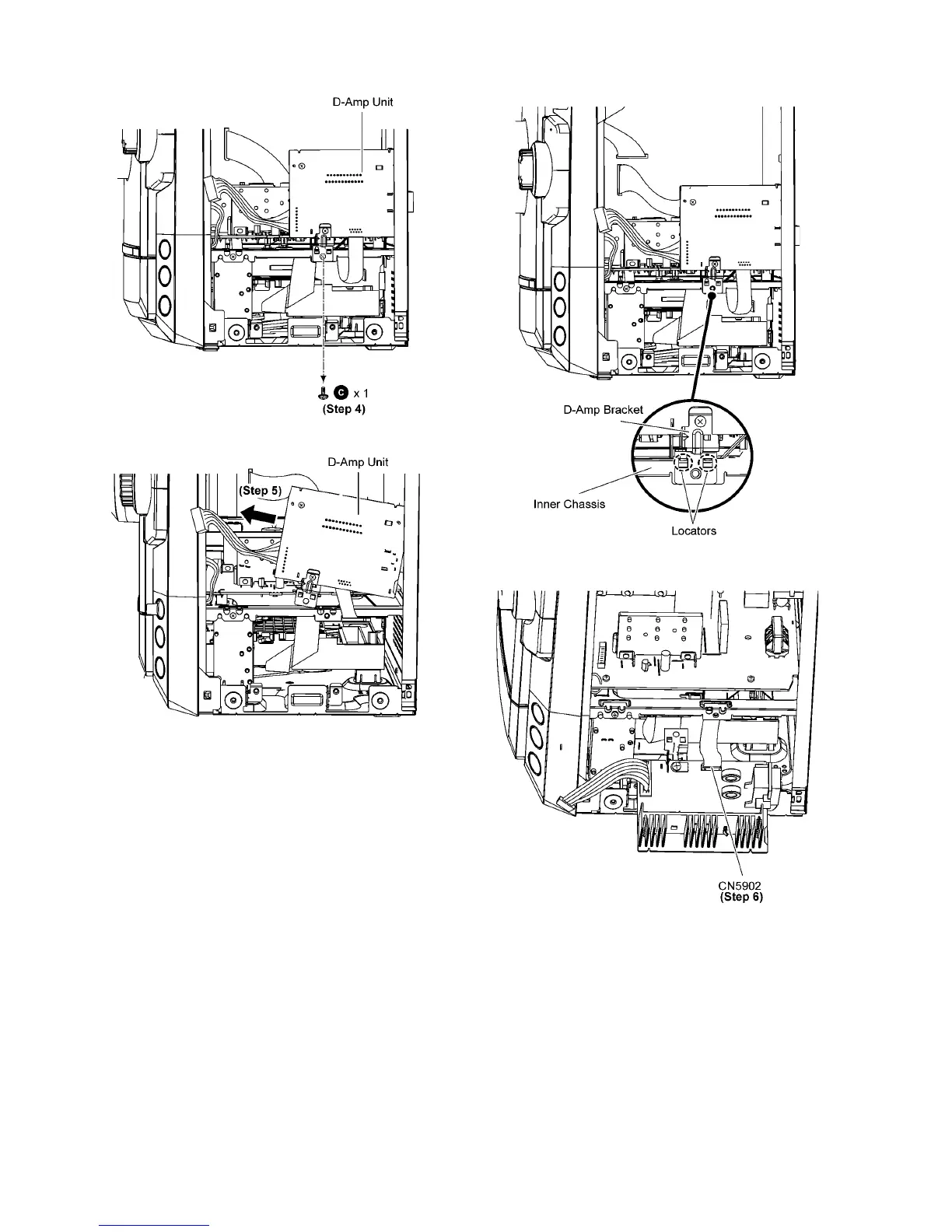

Step 4 Remove 1 screw.
Step 5 Slightly lift up & remove D-Amp Unit as arrow shown.
Caution: During assembling, ensure that D-Amp Bracket is
seated on the locator of Inner Chassis properly.
Step 6 Detach 12P FFC at the connector (CN5902) on D-Amp
P. C. B ..
Step 7 Remove 1 screw.
Step 8 Remove D-Amp P.C.B.
