45

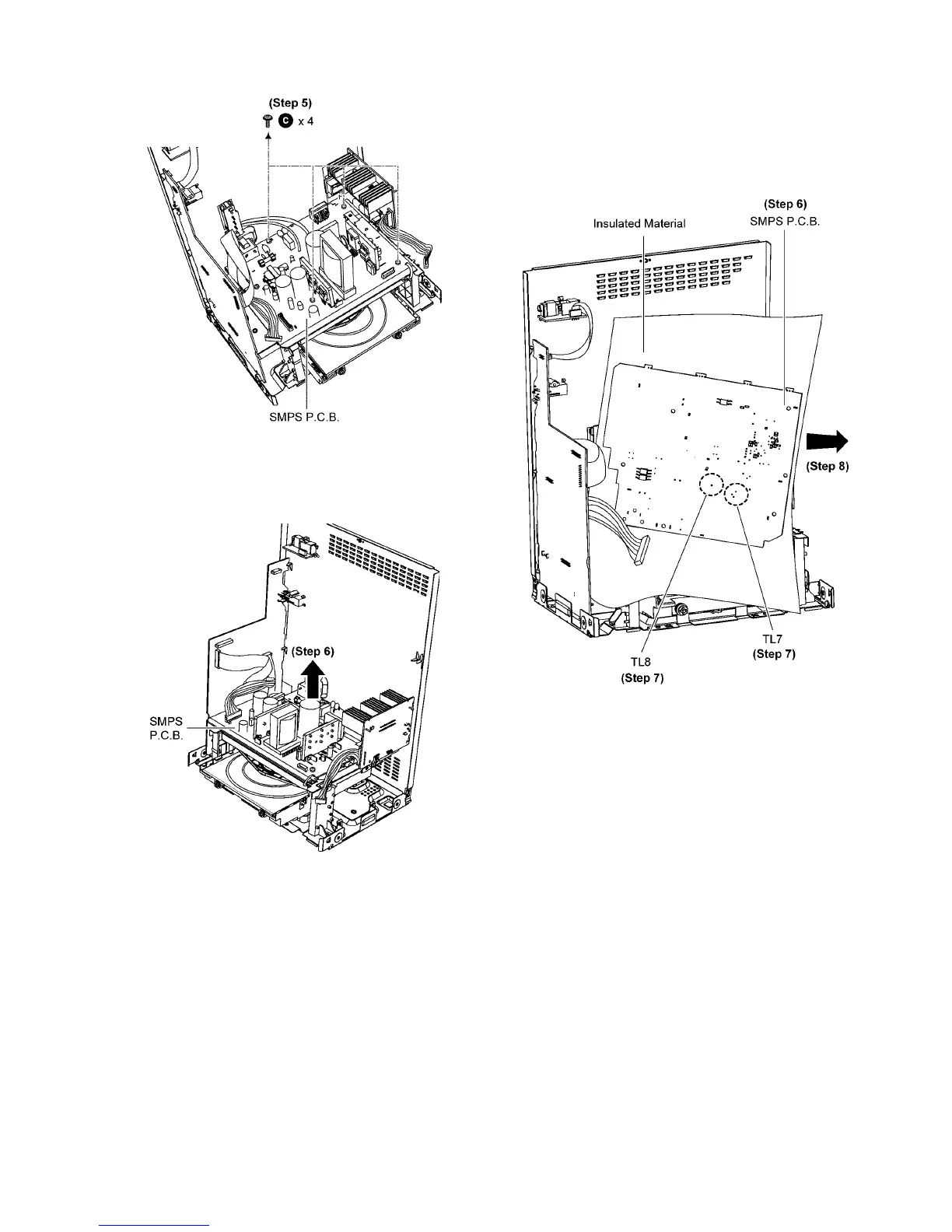

Step 5 Remove 4 screws.
• For PN only
Step 6 Lift up to remove SMPS P.C.B..
Caution: Lift up SMPS P.C.B. slowly in order not to damage
both Main P.C.B. and D-Amp P.C.B..
• For PH only
Step 6 Flip the SMPS P.C.B. and position it according to dia-
gram shown.
Caution: Insulated Material is required in order to insulated
SMPS P.C.B. from other parts.
Step 7 Desolder 2 Wire pin, TL7(Black) , TL8(Red) wires pin.
Step 8 Remove SMPS P.C.B..
To Next Page
