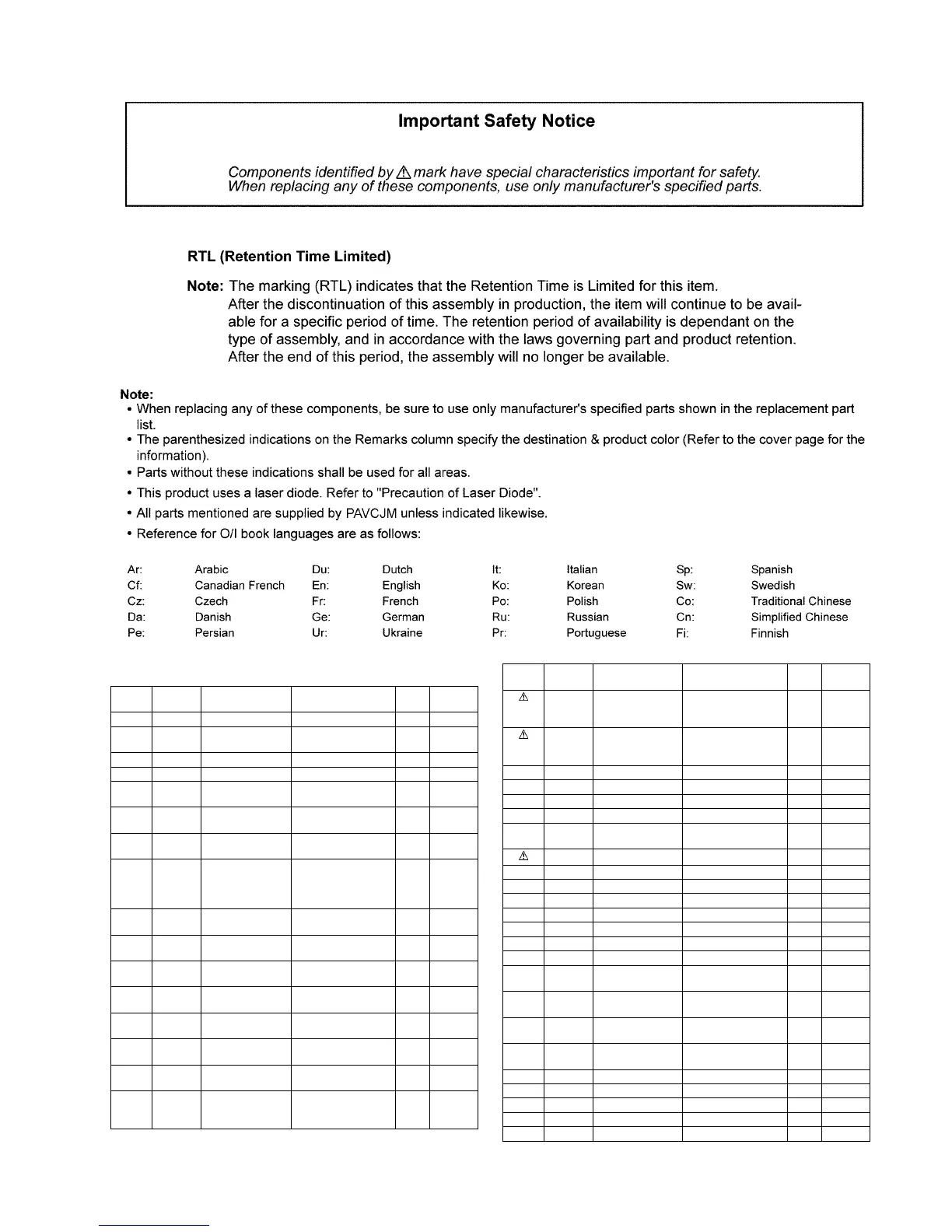

Panasonic SA-MAX200PH - Page 109

109
17.1.3. Mechanical Replacement Part List
Safety Ref.
No.
Part No. Part Name &
Description
Qty Remarks
CABINET AND
CHASSIS
1 L6FALEFH0030 FAN UNIT 3
2 REE1671 10P FFC (MAIN-CD
INTERFACE)
1
3 REE1725 30P FFC (FL DIS-
PLAY-VOLUME)
1
4 REE1735 10P FFC (FL DIS-
PLAY-MAIN)
1
5 REE1760 6P FFC (CONTROL
JOG LED-CONTROL/
VOLUME JOG LED-
VOLUME)
2
6 REE1764 30P FFC (FL DIS-
PLAY-MAIN)
1
7 REX1558 13P CABLE WIRE
(MAIN-SMPS)
1
8 REX1576 12P CABLE WIRE
(CONTROL-VOLUME)
1
9 REX1557 8P CABLE WIRE
(VOLUME-MIC)
1
10 REX1556 2P CABLE WIRE
(MIC-SMPS)
1
11 REX1559 11P CABLE WIRE
(USB-MAIN)
1
12 REX1563 4P CABLE WIRE
(VOLUME-LED)
1
13 REX1560-1 2P CABLE WIRE
(ILLUMINATION
BUTTON-VOLUME)
1
14 REXX1122-K 1P BLK WIRE
(VOLTAGE SELEC-
TOR-SMPS)
1
15 REXX1123-K 1P RED WIRE
(VOLTAGE SELEC-
TOR-SMPS)
1
16 RGU2872-W MEMORY BUTTON L 1
17 RGK2471-K SIDE COVER 2
18 RGK2468-K CD LID 1
19 RMB0930 CD LID SPRING 1
20 RGQ0666-W VOLUME LIGHT
DIFFUSER
2
22 RGR0439C-C1 REAR PANEL 1
23 RGU2843-W DJ EFFECT BUTTON 1
24 RGU2844-W LIGHTING BUTTON 1
25 RGU2870-K POWER BUTTON 1
26 RGU2871-K FUNCTION BUTTON 1
27 RGU2873-W MEMORY BUTTON R 1
28 RGW0428-S1 VOLUME KNOB 2
29 RGWX0056-1K1 ROTARY KNOB 1
30 RGL0786-W VOLUME LIGHT
RING
2
31 RGC0051-W CENTER LIGHT
HOUSE
1
32 RGL0787-W USB REC LIGHT
PIECE
2
33 RGC0043-W1 VOLUME LIGHT
REFLECTOR
2
34 RHD26046-L SCREW 31
35 RHD30007-K2J SCREW 6
36 RHD30111-31 SCREW 5
37 RHD30119-S SCREW 14
38 RHDX031008 SCREW 2
Safety Ref.
No.
Part No. Part Name &
Description
Qty Remarks
