Panasonic SA-MAX200PH - Disassembly of Control Jog LED P.C.B; Disassembly of Volume P.C.B

33

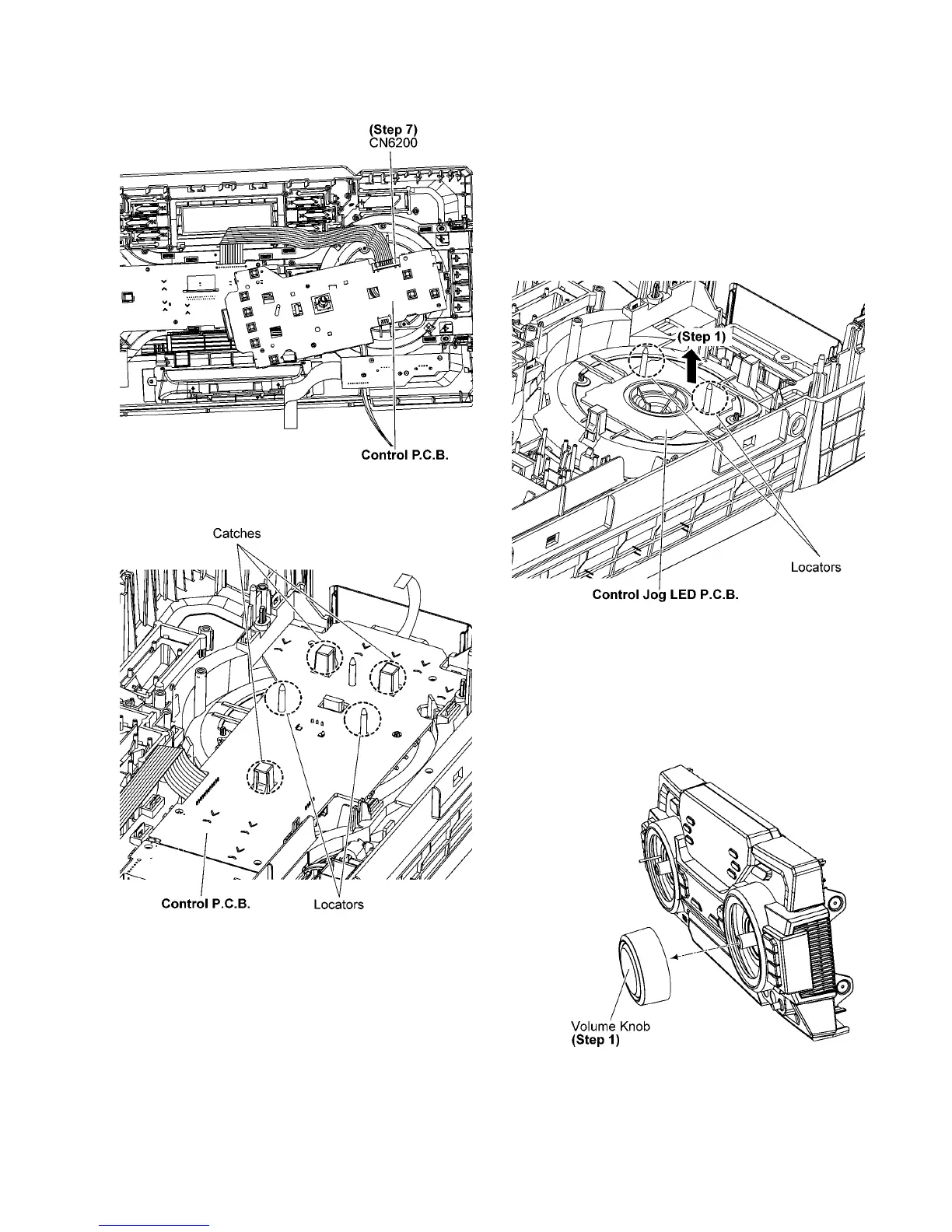

Step 7 Detach 12P Cable at a connector (CN6200) on the Con-
trol P.C.B..
Caution: During assembling, ensure that the Control P.C.B.
is properly located and fully catched onto the Front Panel
Unit.
10.9. Disassembly of Control Jog
LED P.C.B.
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of Front Panel Unit”.
• Refer to “Disassembly of FL Display P.C.B.”.
• Refer to “Disassembly of Control P.C.B.”.
Step 1 Lift up to remove the Control Jog LED P.C.B..
Caution: During assembling, ensure that the Control Jog
LED P.C.B. is properly located & fully seated onto the Front
Panel Unit.
10.10. Disassembly of Volume P.C.B.
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of Front Panel Unit”.
• Refer to “Disassembly of FL Display P.C.B.”.
• Refer to “Disassembly of Control P.C.B.”.
Step 1 Remove the Volume Knob.
