10.17. Disassembly of Rear Panel
• Refer to “Disassembly of Top Cabinet”.

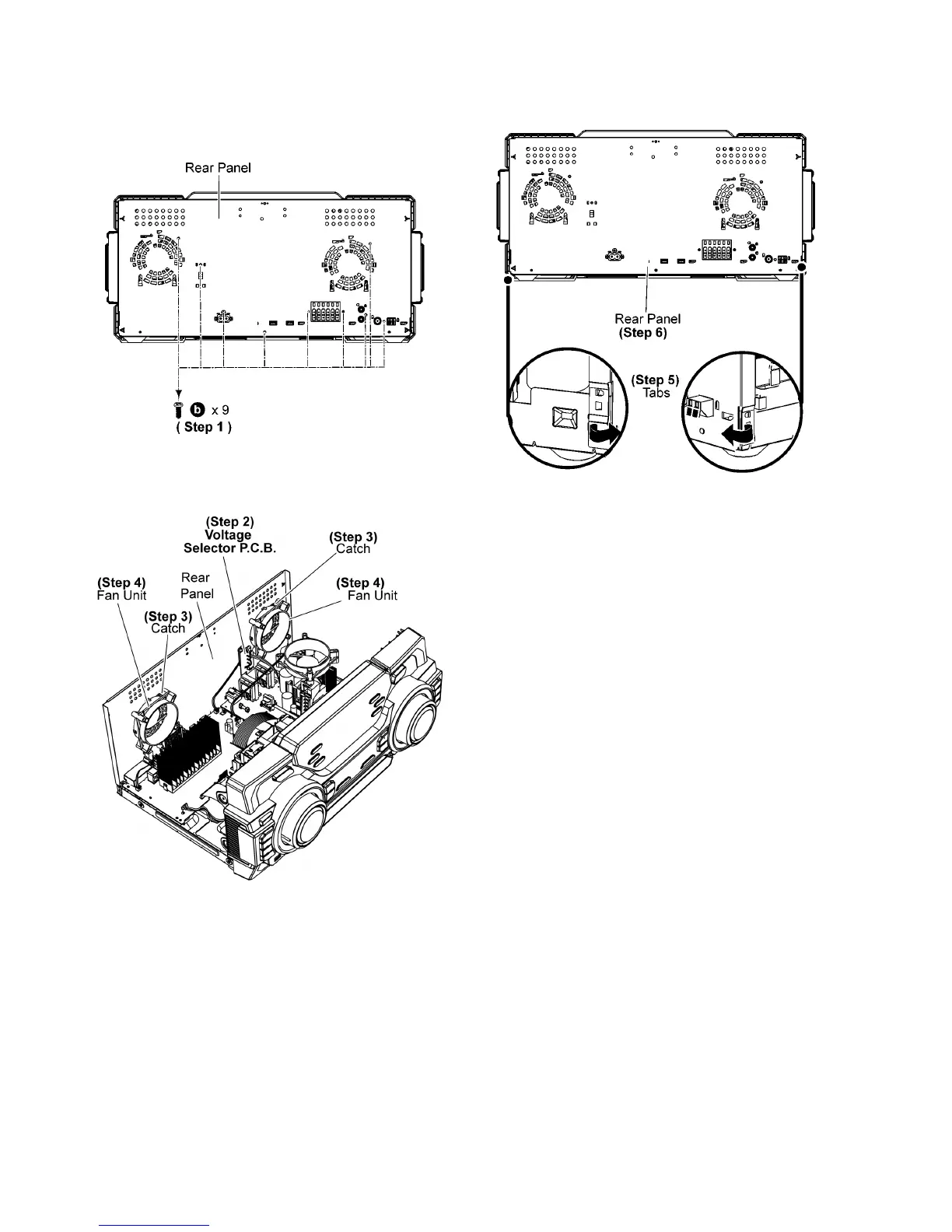

Step 1 Remove 9 screws.
Step 2 Detach the Voltage Selector P.C.B. from Rear Panel.
Step 3 Release catches on the Fan Units.
Step 4 Remove the Fan Units.
Step 5 Release 2 tabs.
Step 6 Remove the Rear Panel.
