10.5. Disassembly of Front Panel
Unit
• Refer to “Disassembly of Top Cabinet”.

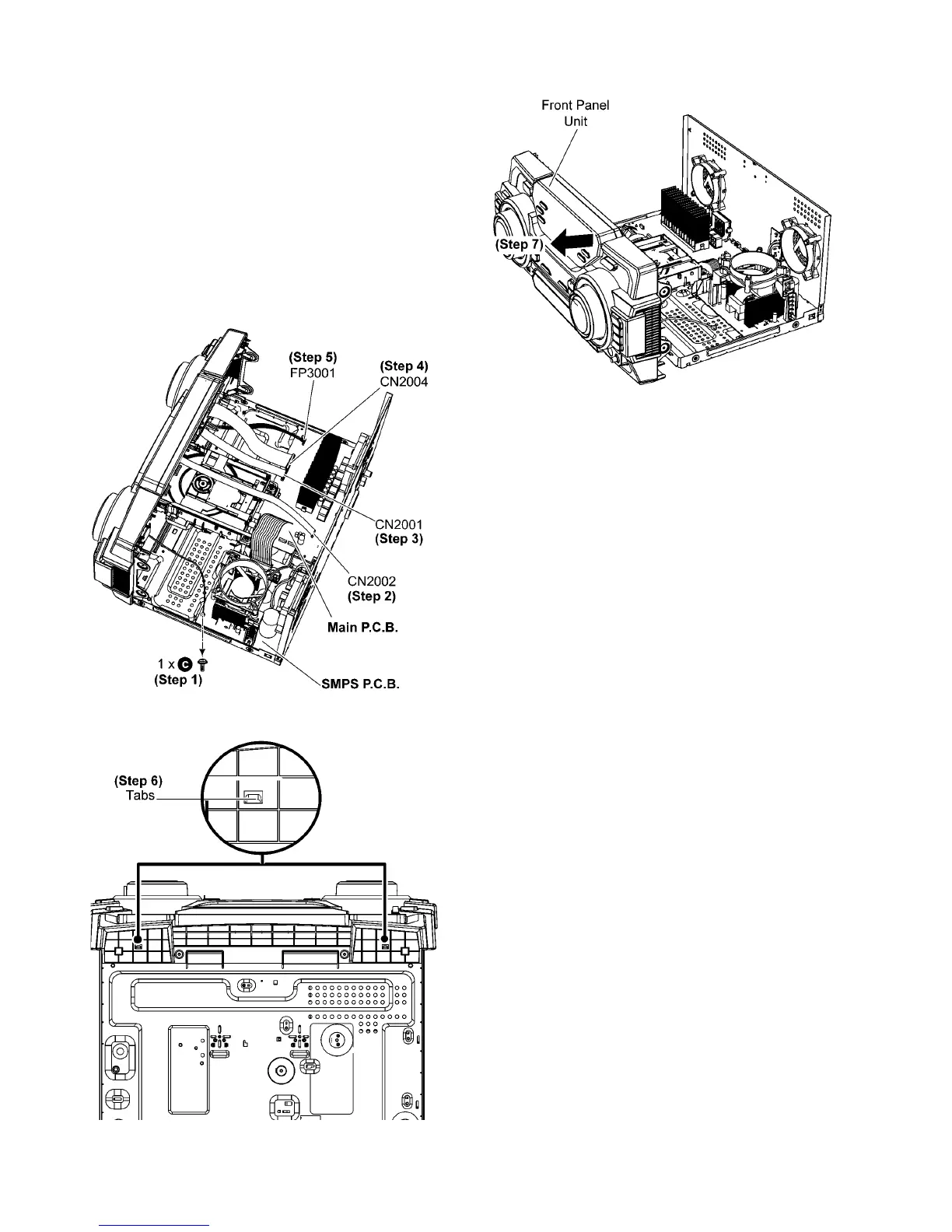

Step 1 Remove 1 screw.
Step 2 Detach 10P FFC at the connector (CN2002) on Main
P. C.B . .
Step 3 Detach 11P Cable at the connector (CN2001) on Main
P. C.B . .
Step 4 Detach 30P FFC at the connector (CN2004) on Main
P. C.B . .
Step 5 Detach 5P Wire at the connector (FP3001) on Main
P. C.B . .
Step 6 Release tabs at the bottom of the unit.
Step 7 Remove the Front Panel Unit
