Panasonic SA-MAX200PH - Disassembly of Control P.C.B

32
10.8. Disassembly of Control P.C.B.
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of Front Panel Unit”.
• Refer to “Disassembly of FL Display P.C.B.”.

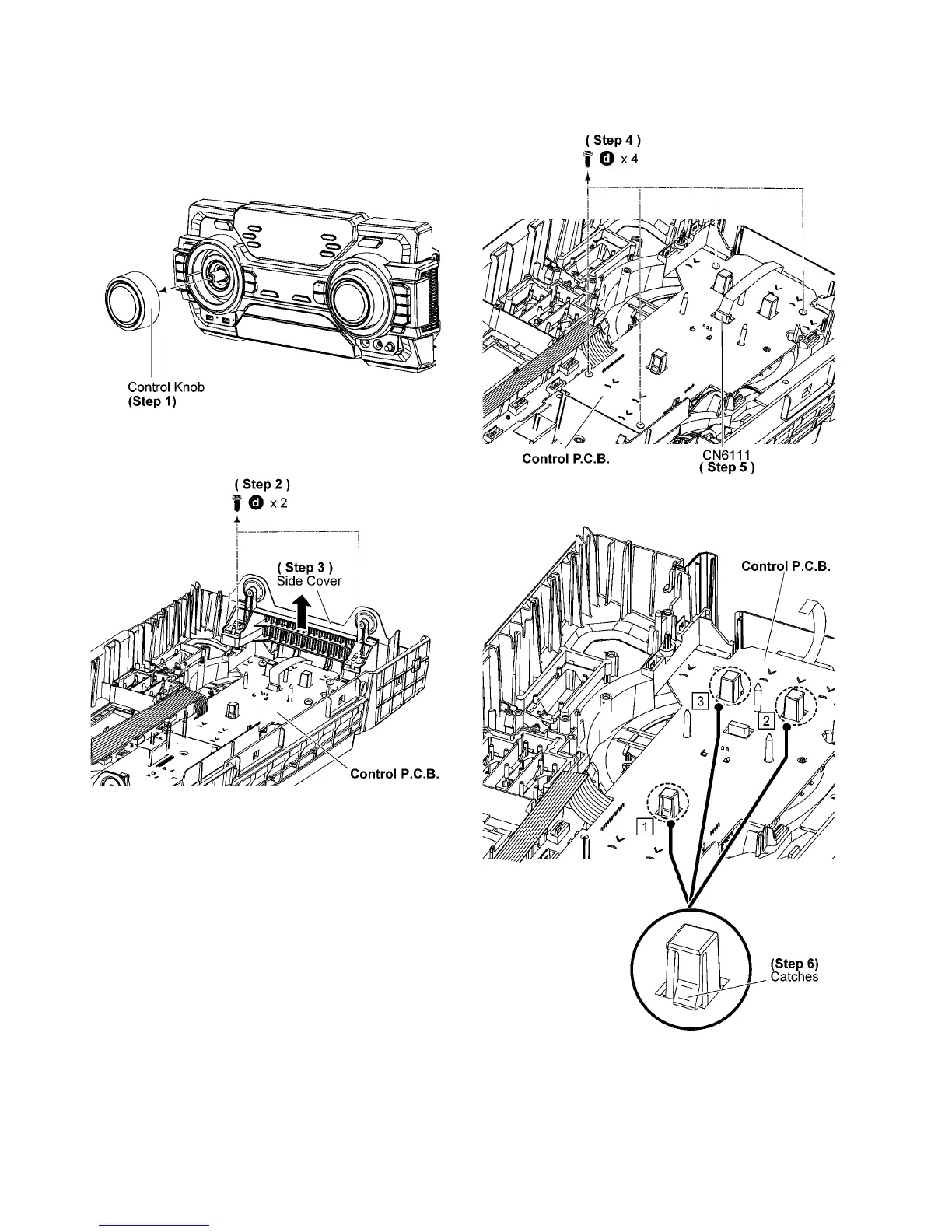

Step 1 Remove the Control Knob.
Step 2 Remove 2 screws.
Step 3 Remove the Side Cover.
Step 4 Remove 4 screws.
Step 5 Detach 6P FFC at a connector (CN6111) on the Control
Jog LED P.C.B..
Step 6 Release catches in the sequences of 1 to 3.
