10.23. Replacement of Diode (D5801)
• Refer to “Disassembly of SMPS P.C.B.”.

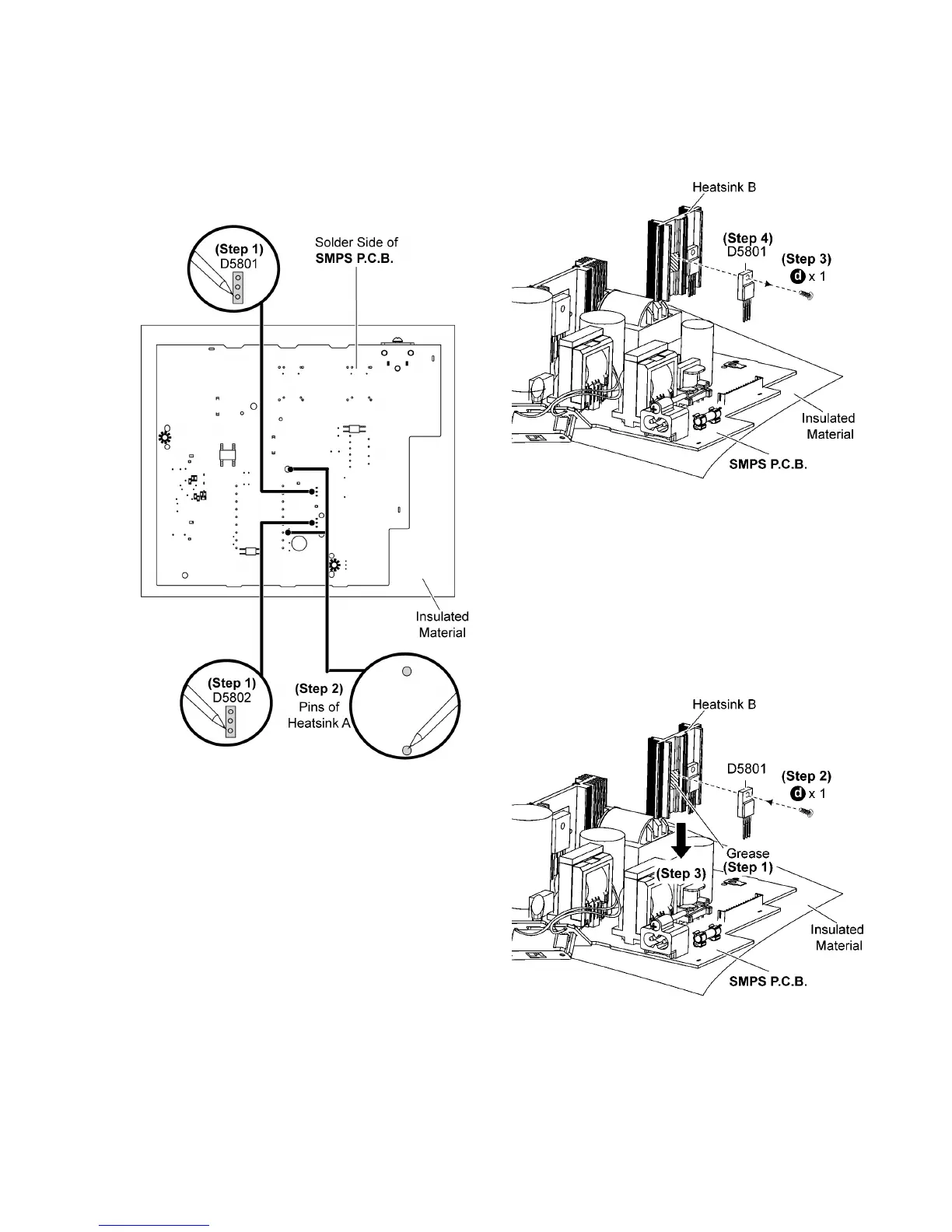

10.23.1. Disassembly of Diode (D5801)
Step 1 Desolder pins of the Diode (D5801) and (D5802) on the
solder side of the SMPS P.C.B..
Step 2 Desolder pins of the Heatsink B.
Step 3 Remove 1 screw at the Diode (D5801).
Step 4 Remove the Diode (D5801) from the SMPS P.C.B..
Caution: Avoid touching the Heatsink B due to its high
temperature after prolonged use. Touching it may lead to
injuries.
10.23.2. Assembly of Diode (D5801)
Step 1 Apply grease to the Heatsink B.
Step 2 Screw the Diode (D5801) to the Heatsink B.
Caution: Ensure the Diode (D5801) is tightly screwed to the
Heatsink B.
Step 3 Fix the Heatsink B with the Diode (D5801) on the SMPS
P. C .B ..
Caution: Ensure pins of the Diode (D5801) are properly
inserted into the SMPS P.C.B..
