11.4. Checking of SMPS P.C.B.
Step 1 Remove Top Cabinet.
Step 2 Remove SMPS P.C.B..

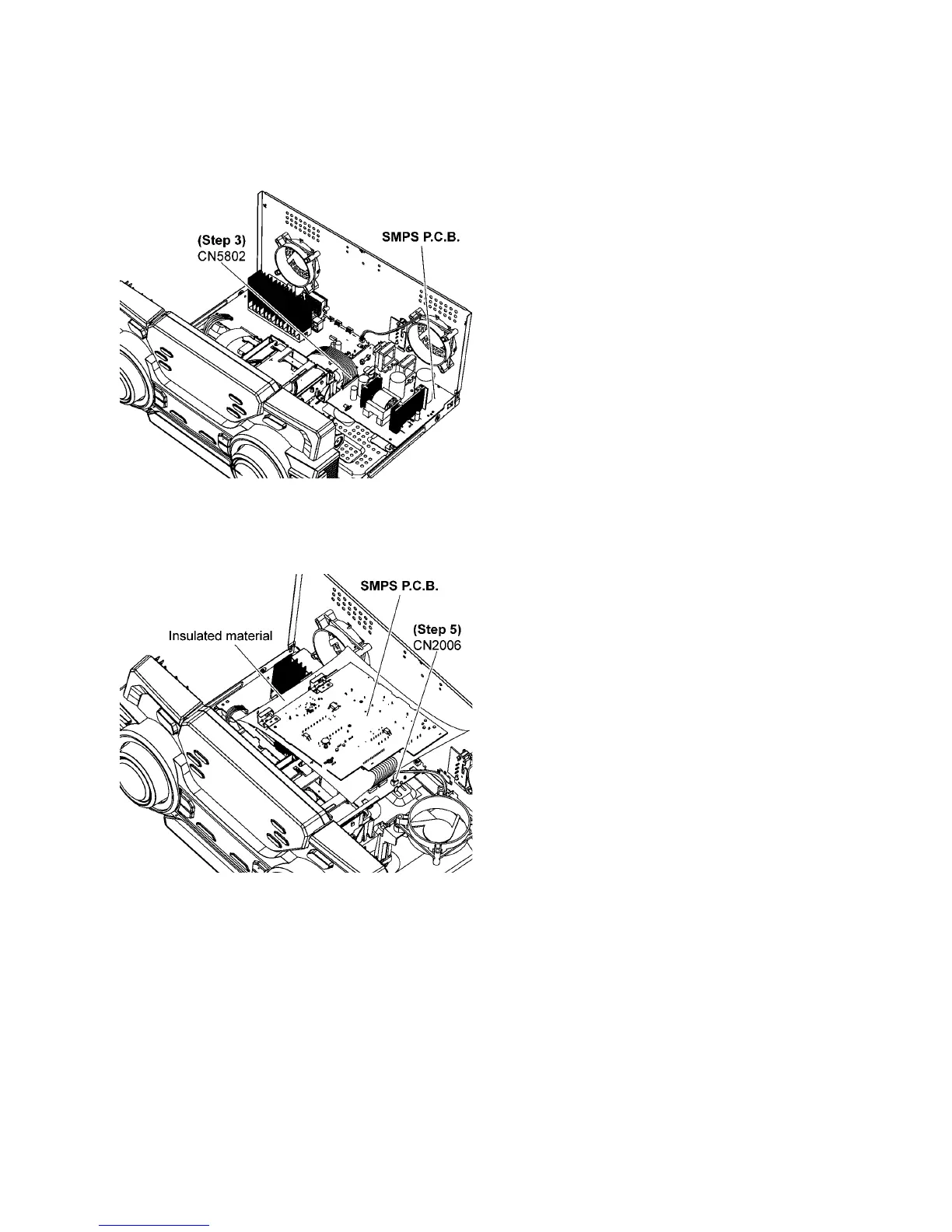

Step 3 Attach 13P Cable at the connector (CN5802) on the
SMPS P.C.B..
Step 4 Upset the SMPS P.C.B..
Step 5 Attach 2P Wire at the connector (CN2006) on the Main
P. C. B ..
Step 6 SMPS P.C.B. can be checked as diagram shown.
