41

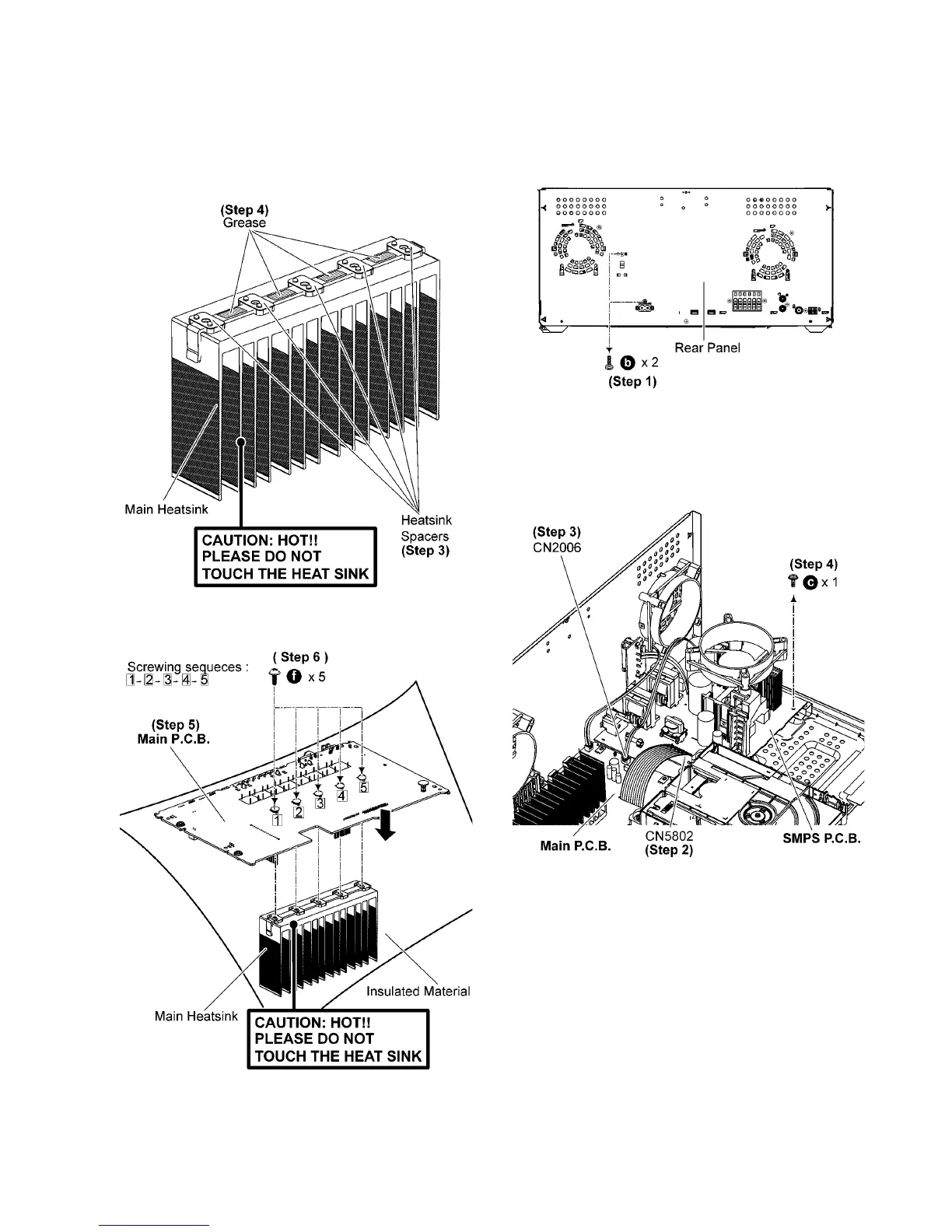

Step 3 Fix Heatsink spacers onto Main Heatsink..
Caotion: Ensure that the Heatsink Spacers are properly
located and seated flatly onto Main Heatsink.
Step 4 Apply grease to the Main Heatsink as indicate in the dia-
gram..
Caution: Ensure Grease thickness is about 0.2mm.
Step 5 Upset the Main P.C.B..
Step 6 Fix 5 screws.
10.21. Disassembly of SMPS P.C.B.
and Voltage Selector P.C.B.
• Refer to “Disassembly of Top Cabinet”.
Step 1 Remove 2 screws.
Step 2 Detach 13P Cable at a connector (CN5802) on the
SMPS P.C.B..
Step 3 Detach 2P Wire at a connector (CN2006) on the Main
P. C .B ..
Step 4 Remove 1 screw.
To Next Page
