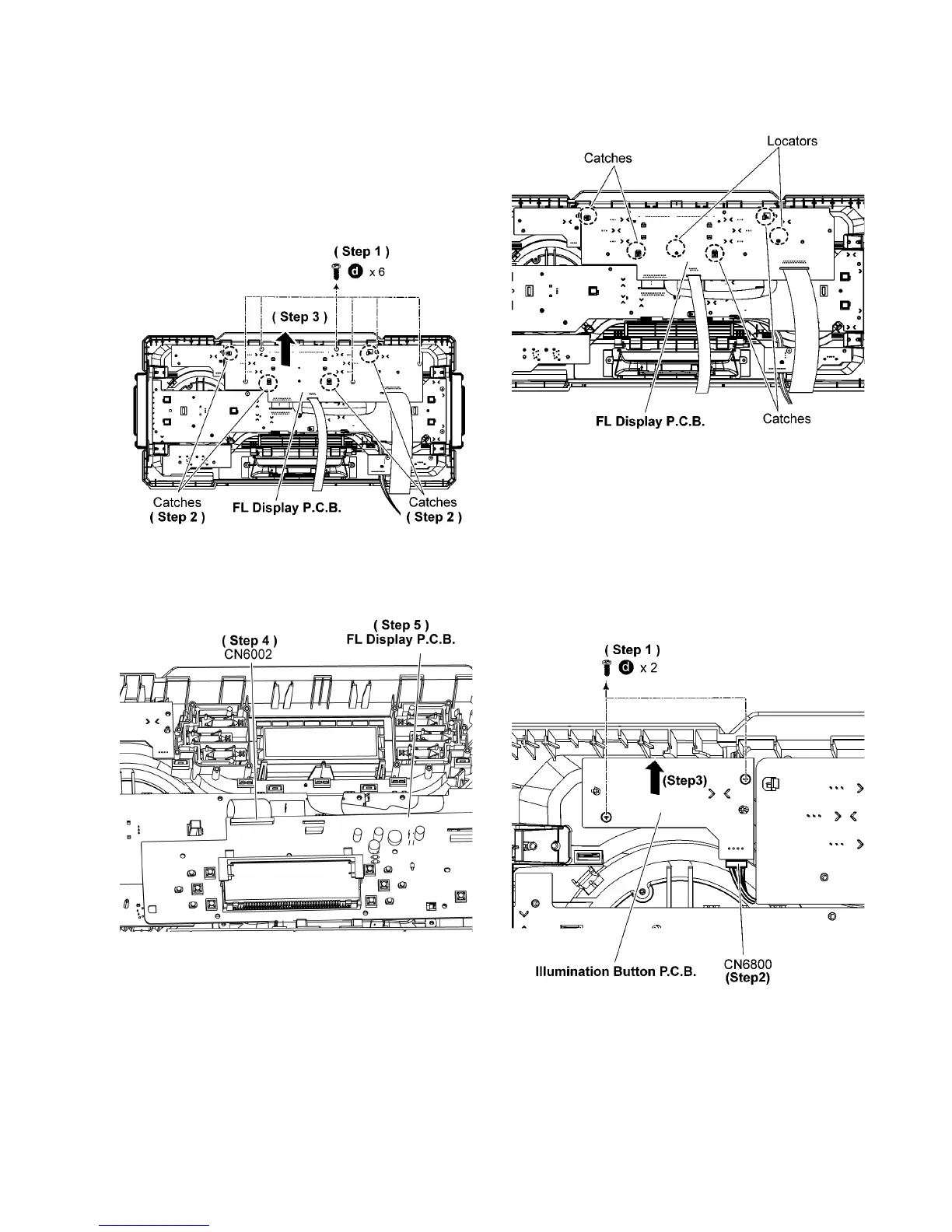

10.6. Disassembly of FL Display
P. C. B.
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of Front Panel Unit”.
Step 1 Remove 6 screws.
Step 2 Release 4 catches.
Step 3 Lift up the FL Display P.C.B..
Step 4 Detach 30P FFC at a connector (CN6002) on the FL
Display P.C.B..
Step 5 Remove the FL Display P.C.B..
Caution: During assembling, ensure that the FL Display
P.C.B. is properly located and fully catched onto the Front
Panel Unit.
10.7. Disassembly of Illumination
Button P.C.B.
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of Front Panel Unit”.
Step 1 Remove 2 screws.
Step 2 Detach 2P Cable at a connector (CN6800) on the Illumi-
nation Button P.C.B..
Step 3 Lift up to remove the Illumination Button P.C.B..
