10.16. Disassembly of CD Lid
Refer to “Disassembly of Top Cabinet”.
Refer to “Disassembly of Front Panel Unit”.

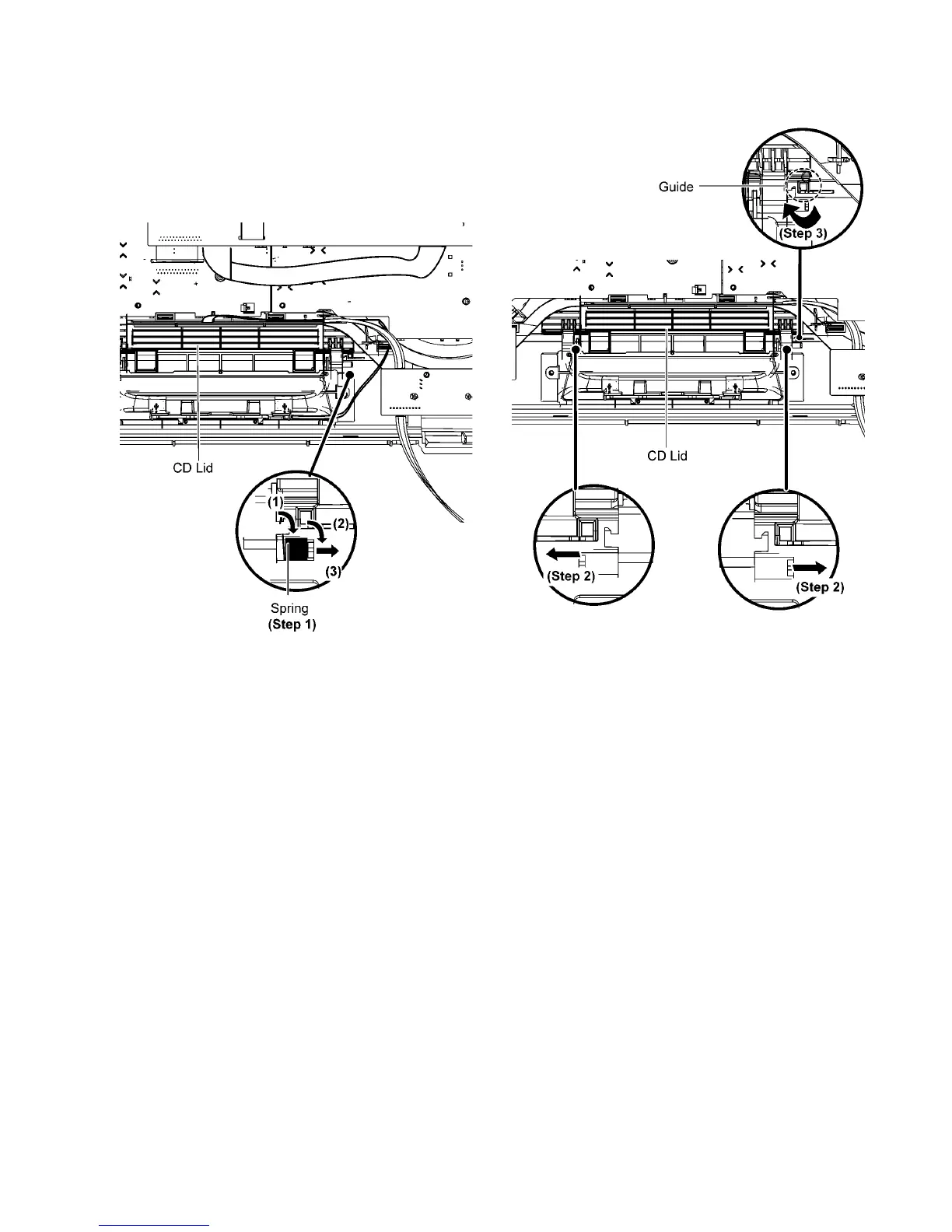

Step 1 Remove the spring as arrow shown in order of
sequence (1) to (3).
Caution: During assembling, ensure that the spring is
assembly at correct position.
Step 2 Remove the CD Lid as arrow shown.
Step 3 Release the CD Lid from the guide.
