44

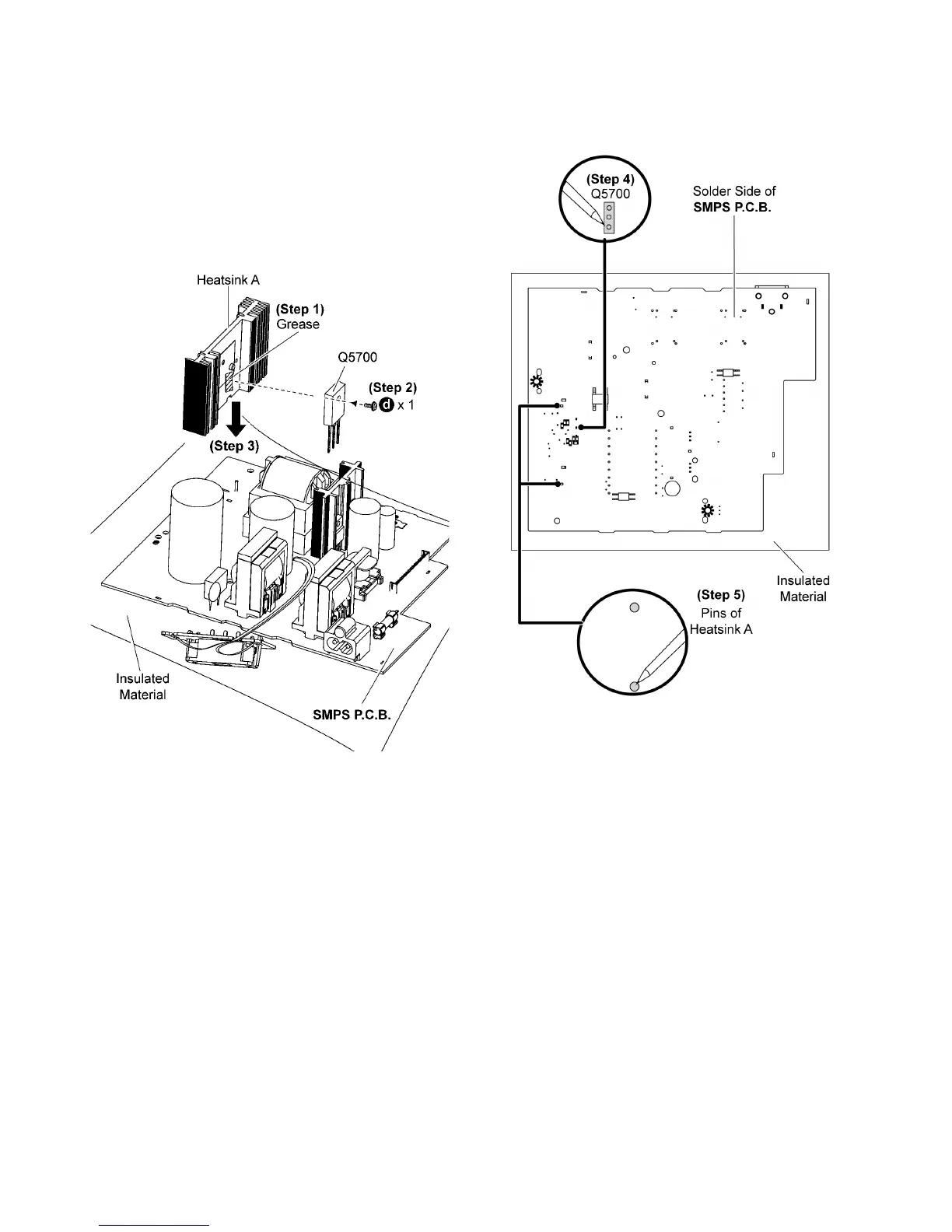

10.22.2. Assembly of Switching Regulator
(Q5700)
Step 1 Apply grease to the Heatsink A.
Step 2 Screw the Switching Regulator (Q5700) to the Heatsink
A.
Caution: Ensure the Switching Regulator (Q5700) is tightly
screwed to the Heatsink A.
Step 3 Fix the Heatsink A with the Switching Regulator
(Q5700) on the SMPS P.C.B. as shown.
Caution 1: Ensure the Heatsink A with the Switching Regu-
lator (Q5700) are properly inserted into the SMPS P.C.B..
Step 4 Solder pins of the Switching Regulator (Q5700) on the
solder side of the SMPS P.C.B..
Step 5 Solder pins of the Heatsink A on the solder side of the
SMPS P.C.B..
