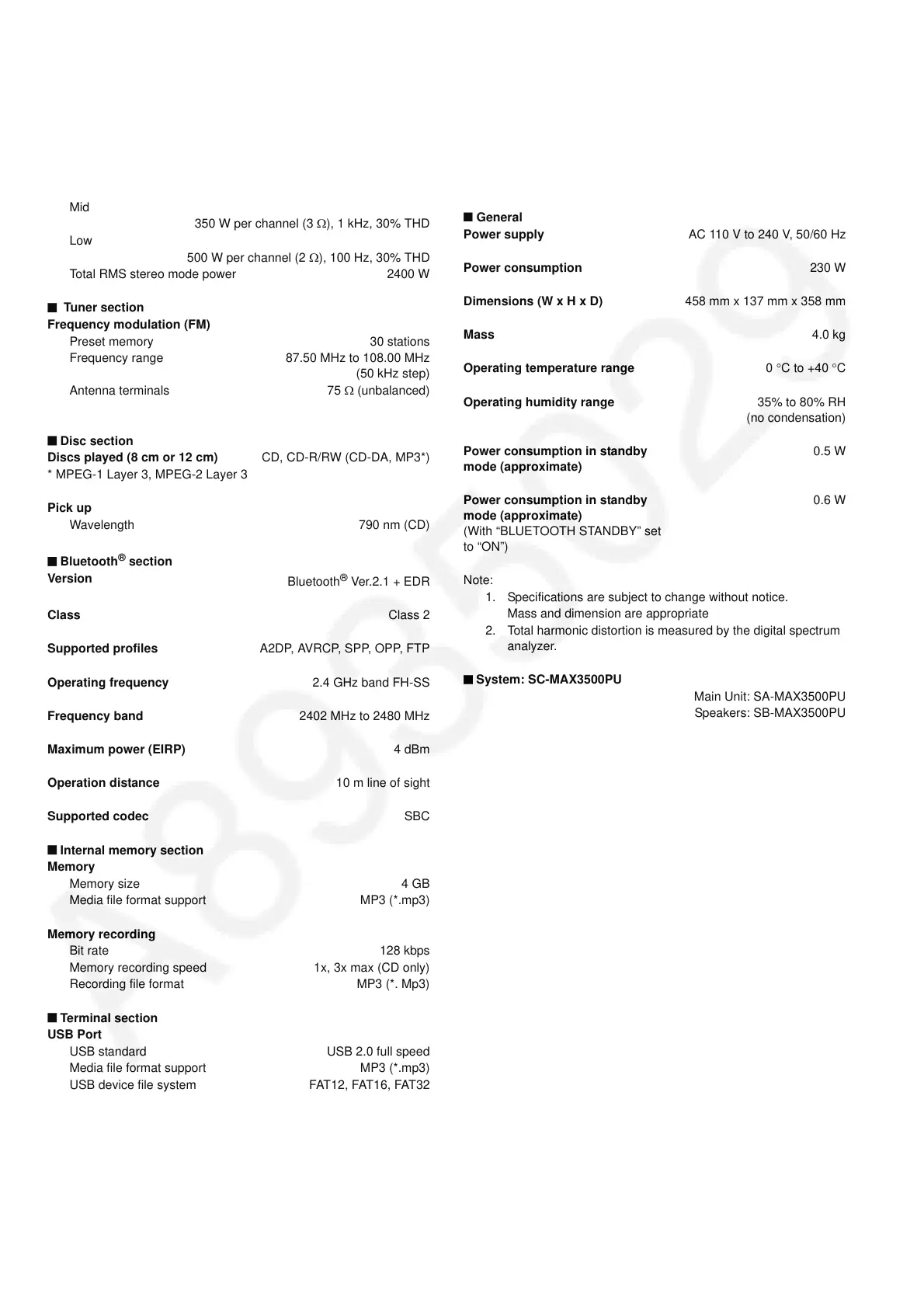

4 Specifications
Q Amplifier section
RMS output power stereo mode
High (both ch driven)
350 W per channel (3 Ω), 1 kHz, 30% THD
Mid
350 W per channel (3 Ω), 1 kHz, 30% THD
Low
500 W per channel (2 Ω), 100 Hz, 30% THD
Total RMS stereo mode power 2400 W
Q Tuner section
Frequency modulation (FM)
Preset memory 30 stations
Frequency range 87.50 MHz to 108.00 MHz
(50 kHz step)
Antenna terminals 75 Ω (unbalanced)
Q Disc section
Discs played (8 cm or 12 cm) CD, CD-R/RW (CD-DA, MP3*)
* MPEG-1 Layer 3, MPEG-2 Layer 3
Pick up
Wavelength 790 nm (CD)
Q Bluetooth
®
section
Version
Bluetooth
®
Ver.2.1 + EDR
Class Class 2
Supported profiles A2DP, AVRCP, SPP, OPP, FTP
Operating frequency 2.4 GHz band FH-SS
Frequency band 2402 MHz to 2480 MHz
Maximum power (EIRP) 4 dBm
Operation distance 10 m line of sight
Supported codec SBC
Q Internal memory section
Memory
Memory size 4 GB
Media file format support MP3 (*.mp3)
Memory recording
Bit rate 128 kbps
Memory recording speed 1x, 3x max (CD only)
Recording file format MP3 (*. Mp3)
Q Terminal section
USB Port
USB standard USB 2.0 full speed
Media file format support MP3 (*.mp3)
USB device file system FAT12, FAT16, FAT32
USB recording
Bit rate 128 kbps
USB recording speed 1x, 3x (CD only)
Recording file format MP3 (*.mp3)
AUX
Audio input Pin jack (1 system)
Microphone
Terminal Mono, 6.3 mm jack (2 systems)
Q General
Power supply AC 110 V to 240 V, 50/60 Hz
Power consumption 230 W
Dimensions (W x H x D) 458 mm x 137 mm x 358 mm
Mass 4.0 kg
Operating temperature range 0 °C to +40 °C
Operating humidity range 35% to 80% RH
(no condensation)
Power consumption in standby
mode (approximate)
0.5 W
Power consumption in standby
mode (approximate)
(With “BLUETOOTH STANDBY” set
to “ON”)
0.6 W
Note:
1. Specifications are subject to change without notice.
Mass and dimension are appropriate
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
Q System: SC-MAX3500PU
Main Unit: SA-MAX3500PU
Speakers: SB-MAX3500PU
