41

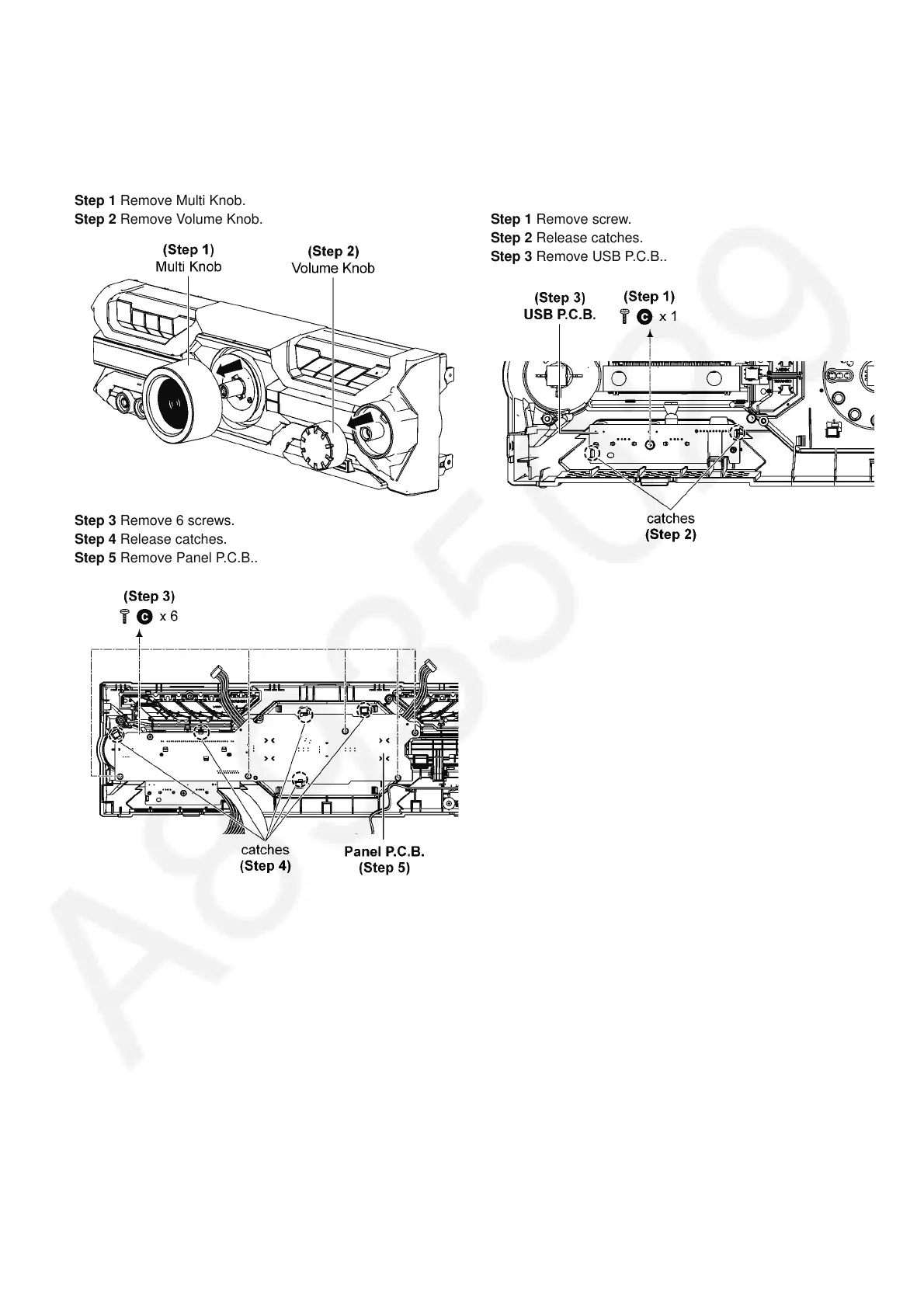

8.8. Disassembly of Panel P.C.B.
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of Front Panel Unit”.
• Refer to “Disassembly of Button L P.C.B.”.
• Refer to “Disassembly of Button R P.C.B.”.
Step 1 Remove Multi Knob.
Step 2 Remove Volume Knob.
Step 3 Remove 6 screws.
Step 4 Release catches.
Step 5 Remove Panel P.C.B..
8.9. Disassembly of USB P.C.B.
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of Front Panel Unit”.
• Refer to “Disassembly of Button L P.C.B.”.
• Refer to “Disassembly of Button R P.C.B.”.
• Refer to “Disassembly of Panel P.C.B.”.
Step 1 Remove screw.
Step 2 Release catches.
Step 3 Remove USB P.C.B..
