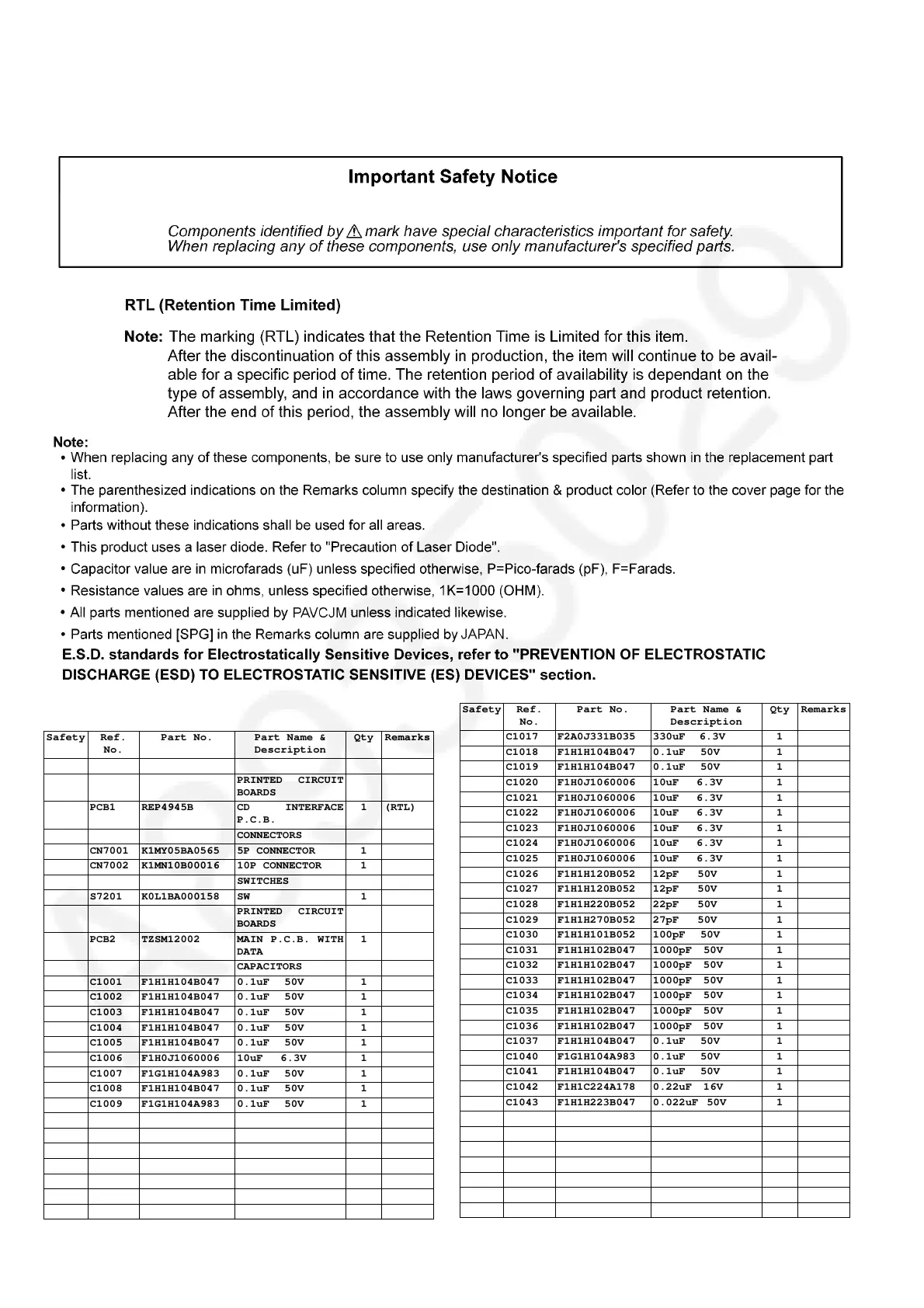

15 Exploded View and Replacement Parts List
15.1. Electrical Replacement Parts List
Safety Ref.
No.
Part No. Part Name &
Description
Qty Remarks
PRINTED CIRCUIT
BOARDS
PCB1 REP4945B CD INTERFACE
P.C.B.
1(RTL)
CONNECTORS
CN7001 K1MY05BA0565 5P CONNECTOR 1
CN7002 K1MN10B00016 10P CONNECTOR 1
SWITCHES
S7201 K0L1BA000158 SW 1
PRINTED CIRCUIT
BOARDS
PCB2 TZSM12002 MAIN P.C.B. WITH
DATA
1
CAPACITORS
C1001 F1H1H104B047 0.1uF 50V 1
C1002 F1H1H104B047 0.1uF 50V 1
C1003 F1H1H104B047 0.1uF 50V 1
C1004 F1H1H104B047 0.1uF 50V
1
C1005 F1H1H104B047 0.1uF 50V 1
C1006 F1H0J1060006 10uF 6.3V 1
C1007 F1G1H104A983 0.1uF 50V 1
C1008 F1H1H104B047 0.1uF 50V 1
C1009 F1G1H104A983 0.1uF
50V 1
C1010 F1H1H104B047 0.1uF 50V 1
C1011 F1H1H104B047 0.1uF 50V 1
C1012 F1H1C224A178 0.22uF 16V 1
C1013 F1H0J335A005 3.3uF 6.3V
1
C1014 F2A1C101A243 100uF 16V 1
C1015 F1H1H104B047 0.1uF 50V 1
C1016 F1G1H681A830 680pF 50V 1
C1017 F2A0J331B035 330uF 6.3V 1
C1018 F1H1H104B047 0.1uF 50V 1
C1019 F1H1H104B047 0.1uF 50V 1
C1020 F1H0J1060006 10uF 6.3V 1
C1021 F1H0J1060006 10uF 6.3V
1
C1022 F1H0J1060006 10uF 6.3V 1
C1023 F1H0J1060006 10uF 6.3V 1
C1024 F1H0J1060006 10uF 6.3V 1
C1025 F1H0J1060006 10uF 6.3V 1
C1026 F1H1H120B052 12pF
50V 1
C1027 F1H1H120B052 12pF 50V 1
C1028 F1H1H220B052 22pF 50V 1
C1029 F1H1H270B052 27pF 50V 1
C1030 F1H1H101B052 100pF 50V
1
C1031 F1H1H102B047 1000pF 50V 1
C1032 F1H1H102B047 1000pF 50V 1
C1033 F1H1H102B047 1000pF 50V 1
C1034 F1H1H102B047 1000pF 50V 1
C1035 F1H1H102B047 1000pF 50V
1
C1036 F1H1H102B047 1000pF 50V 1
C1037 F1H1H104B047 0.1uF 50V 1
C1040 F1G1H104A983 0.1uF 50V 1
C1041 F1H1H104B047 0.1uF 50V 1
C1042 F1H1C224A178 0.22uF
16V 1
C1043 F1H1H223B047 0.022uF 50V 1
C1046 F1H1H102B047 1000pF 50V 1
C1048 F1H1A225A051 2.2uF 10V 1
C1049 F1H1H104B047 0.1uF 50V
1
C1050 F1H0J1060006 10uF 6.3V 1
C1051 F1H0J1060006 10uF 6.3V 1
C1052 F1H0J1060006 10uF 6.3V 1
C1053 F1H0J4750004 4.7uF 6.3V 1
Safety Ref.
No.
Part No. Part Name &
Description
Qty Remarks
