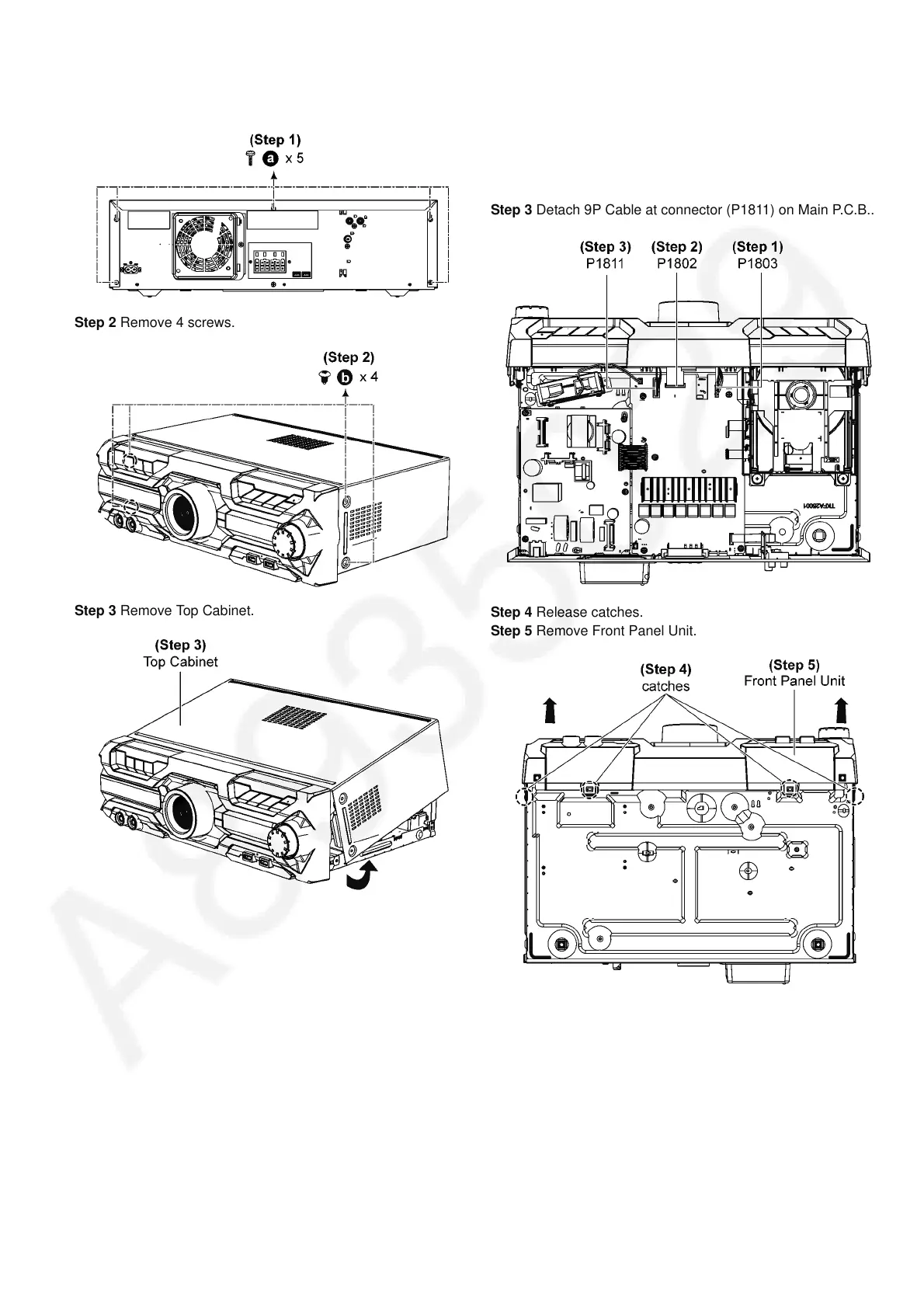

8.4. Disassembly of Top Cabinet
Step 1 Remove 5 screws.
Step 2 Remove 4 screws.
Step 3 Remove Top Cabinet.
8.5. Disassembly of Front Panel
Unit
• Refer to “Disassembly of Top Cabinet”.
Step 1 Detach 6P Cable at connector (P1803) on Main P.C.B..
Step 2 Detach 22P FFC at connector (P1802) on Main P.C.B..
Step 3 Detach 9P Cable at connector (P1811) on Main P.C.B..
Step 4 Release catches.
Step 5 Remove Front Panel Unit.
