Panasonic SA-MAX3500PU - Mechanical Parts List

99

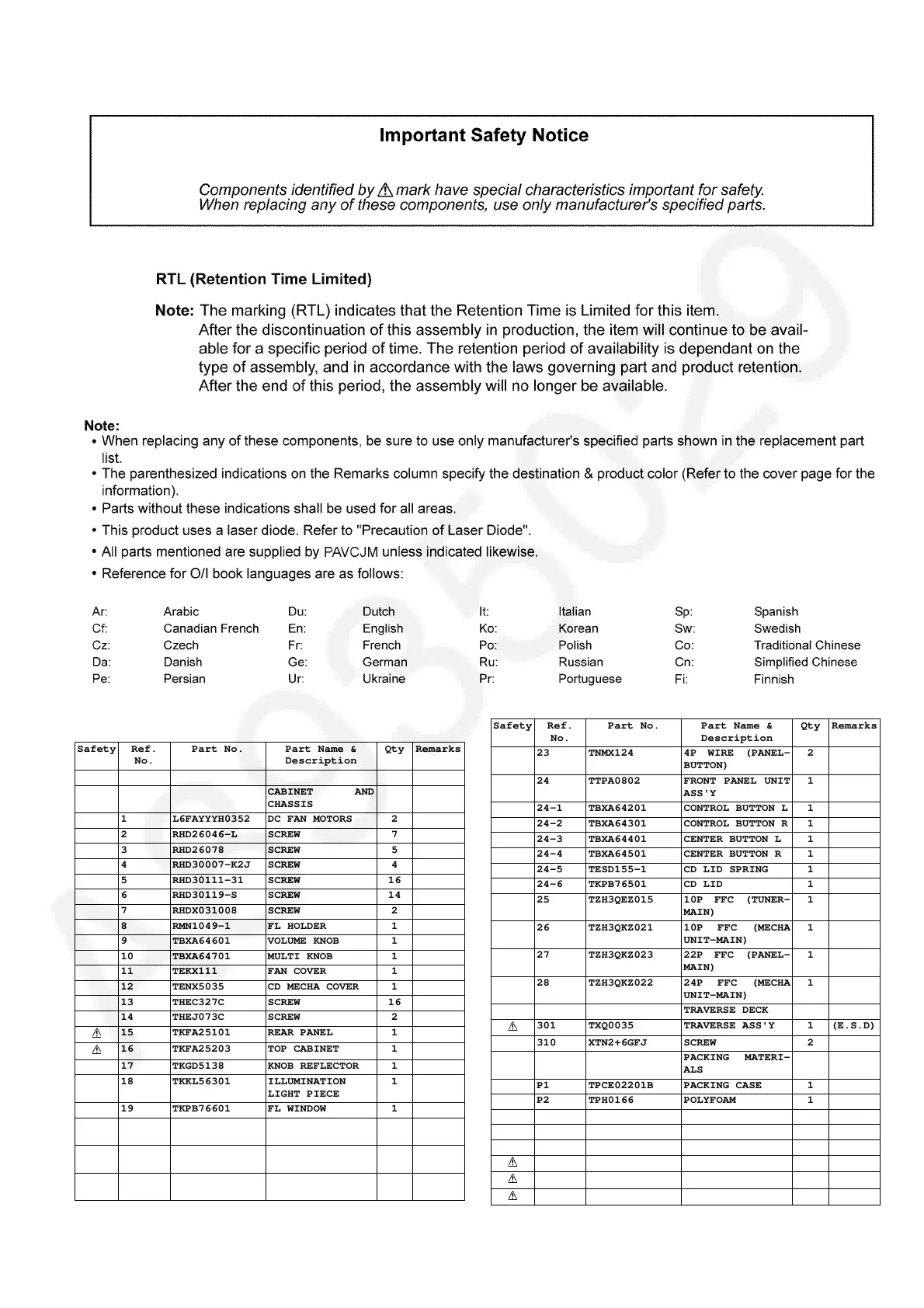

15.2. Mechanical Replacement Part List
Safety Ref.
No.
Part No. Part Name &
Description
Qty Remarks
CABINET AND
CHASSIS
1 L6FAYYYH0352 DC FAN MOTORS 2
2 RHD26046-L SCREW 7
3 RHD26078 SCREW 5
4 RHD30007-K2J SCREW 4
5 RHD30111-31 SCREW 16
6 RHD30119-S SCREW 14
7 RHDX031008 SCREW 2
8 RMN1049-1 FL HOLDER 1
9 TBXA64601 VOLUME KNOB 1
10 TBXA64701 MULTI KNOB 1
11 TEKX111 FAN COVER 1
12 TENX5035 CD MECHA COVER 1
13 THEC327C SCREW 16
14 THEJ073C SCREW 2
15 TKFA25101 REAR PANEL 1
16 TKFA25203 TOP CABINET 1
17 TKGD5138 KNOB REFLECTOR 1
18 TKKL56301 ILLUMINATION
LIGHT PIECE
1
19 TKPB76601 FL WINDOW 1
20 TNMX100 13P WIRE (SMPS-
MAIN)
1
21 TNMX101 9P WIRE (USB-
MAIN)
1
22 TNMX102 6P TWISTED WIRE
(MIC-MAIN)
1
23 TNMX124 4P WIRE (PANEL-
BUTTON)
2
24 TTPA0802 FRONT PANEL UNIT
ASS'Y
1
24-1 TBXA64201 CONTROL BUTTON L 1
24-2 TBXA64301 CONTROL BUTTON R 1
24-3 TBXA64401 CENTER BUTTON L 1
24-4 TBXA64501 CENTER BUTTON R 1
24-5 TESD155-1 CD LID SPRING 1
24-6 TKPB76501 CD LID 1
25 TZH3QEZ015 10P FFC (TUNER-
MAIN)
1
26 TZH3QKZ021 10P FFC (MECHA
UNIT-MAIN)
1
27 TZH3QKZ023 22P FFC (PANEL-
MAIN)
1
28 TZH3QKZ022 24P FFC (MECHA
UNIT-MAIN)
1
TRAVERSE DECK
301 TXQ0035 TRAVERSE ASS'Y 1 (E.S.D)
310 XTN2+6GFJ SCREW 2
PACKING MATERI-
ALS
P1 TPCE02201B PACKING CASE 1
P2 TPH0166 POLYFOAM 1
P3 TPEH915 MIRAMAT BAG 1
ACCESSORIES
A1 N2QAYB001198 REMOTE CONTROL 1
A2 K2CQ2YY00107 AC CORD 1
A3 TQBJ2110 O/I(En) 1
A3 TQBJ2111 O/I(Sp) 1
Safety Ref.
No.
Part No. Part Name &
Description
Qty Remarks
