44

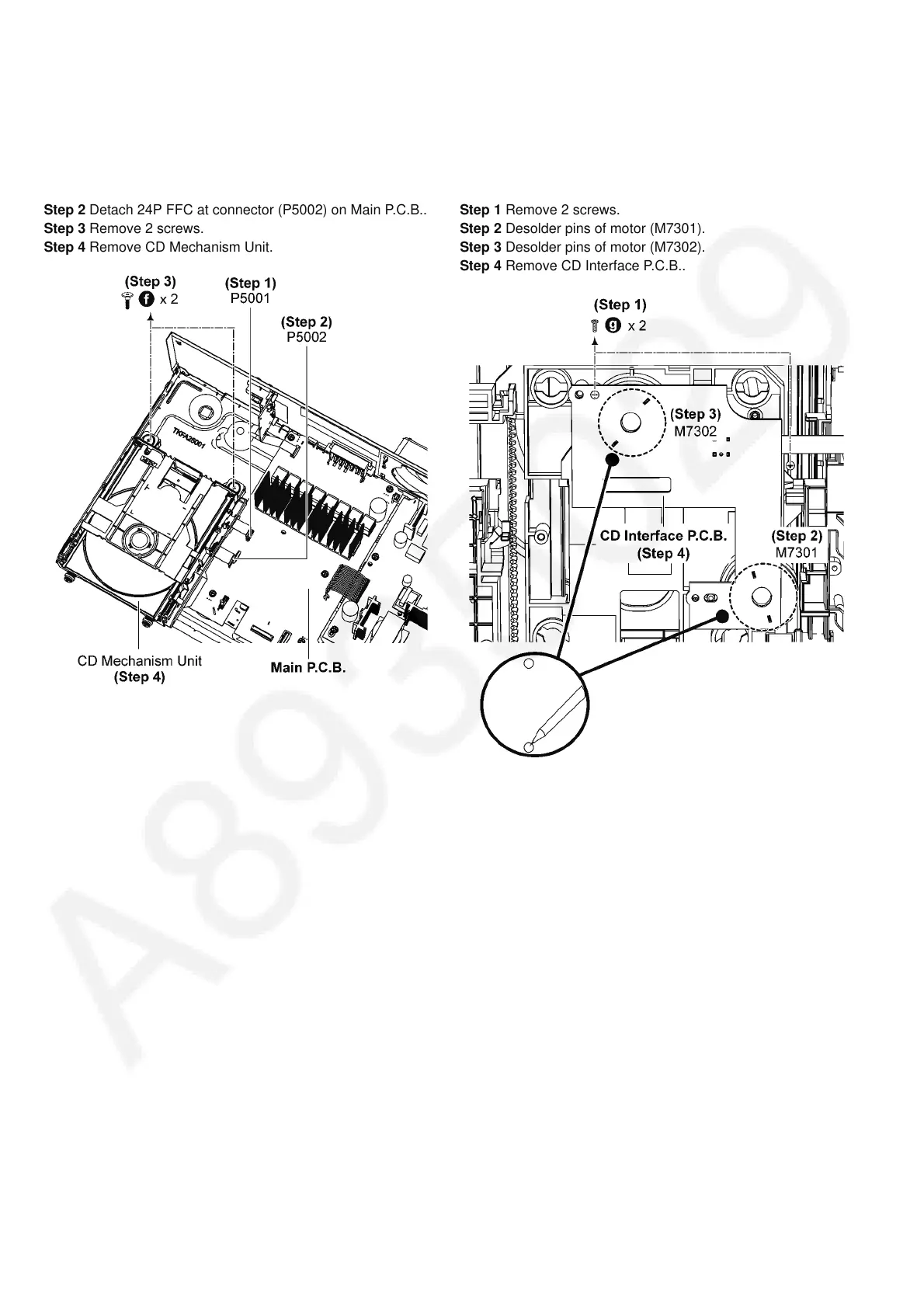

8.14. Disassembly of CD Mecha-
nism Unit
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of Front Panel Unit”.
Step 1 Detach 10P FFC at connector (P5001) on Main P.C.B..
Step 2 Detach 24P FFC at connector (P5002) on Main P.C.B..
Step 3 Remove 2 screws.
Step 4 Remove CD Mechanism Unit.
8.15. Disassembly of CD Interface
P. C. B.
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of Front Panel Unit”.
• Refer to “Disassembly of CD Mechanism Unit”.
Step 1 Remove 2 screws.
Step 2 Desolder pins of motor (M7301).
Step 3 Desolder pins of motor (M7302).
Step 4 Remove CD Interface P.C.B..
