40

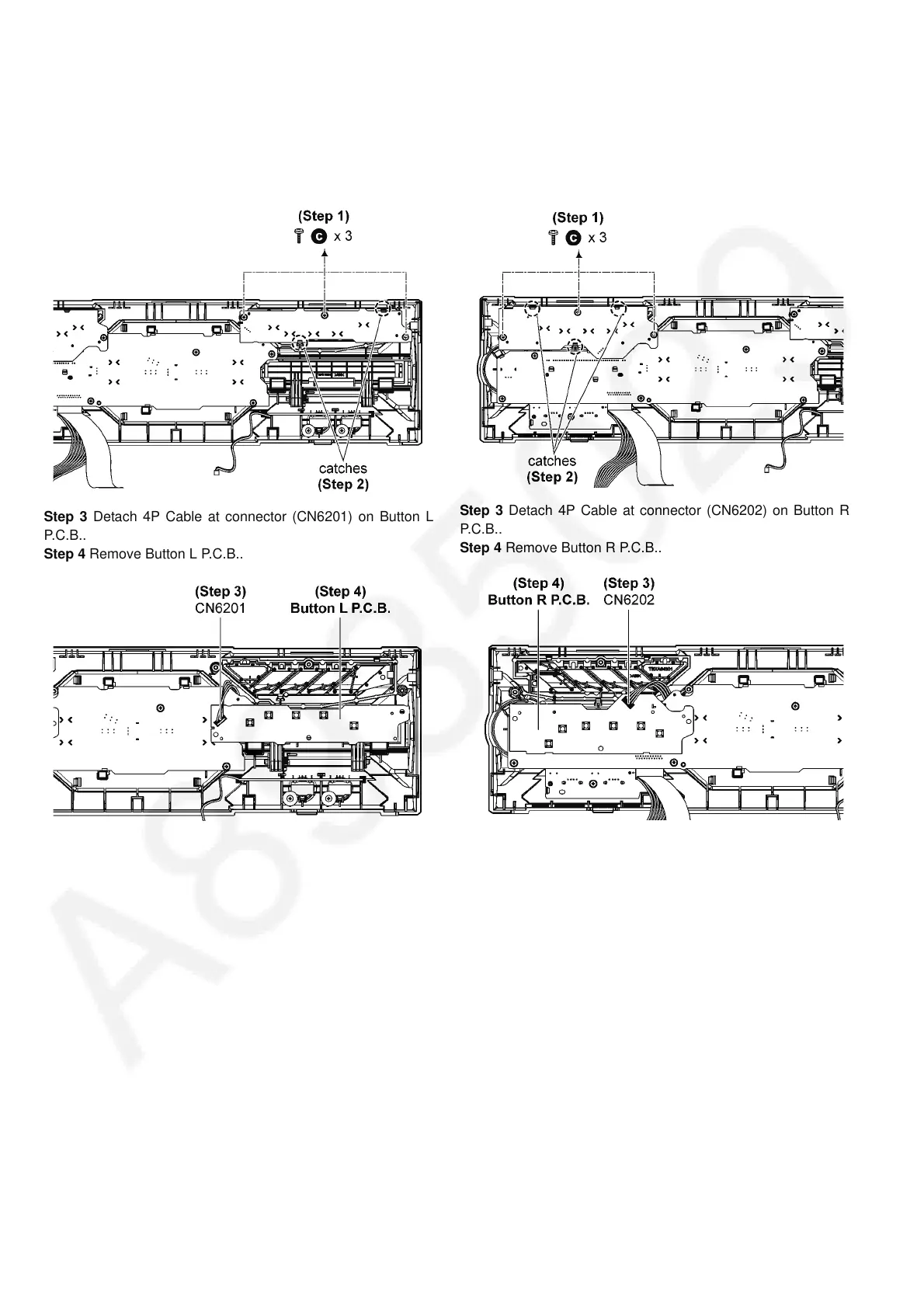

8.6. Disassembly of Button L P.C.B.
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of Front Panel Unit”.
Step 1 Remove 3 screws.
Step 2 Release catches.
Step 3 Detach 4P Cable at connector (CN6201) on Button L
P.C .B . .
Step 4 Remove Button L P.C.B..
8.7. Disassembly of Button R P.C.B.
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of Front Panel Unit”.
Step 1 Remove 3 screws.
Step 2 Release catches.
Step 3 Detach 4P Cable at connector (CN6202) on Button R
P.C.B..
Step 4 Remove Button R P.C.B..
