Panasonic SA-MAX3500PU - Voltage and Waveform Measurements; Voltage Measurement Table

83
14 Voltage and Waveform Measurement
14.1. Voltage Measurement
Note:
• Indication Voltage Values are in standard values for the unit measured by the DC electronic circuit tester (high-impedance) with
the chassis taken as standard.
Therefore, there may exist some errors in voltage values, depending on the internal impedance of the DC circuit tester.
• Circuit voltage and waveform described herein shall be regarded as reference information when probing defect point because it
may differ from actual measuring value due to difference of Measuring instrument and its measuring condition and product itself.

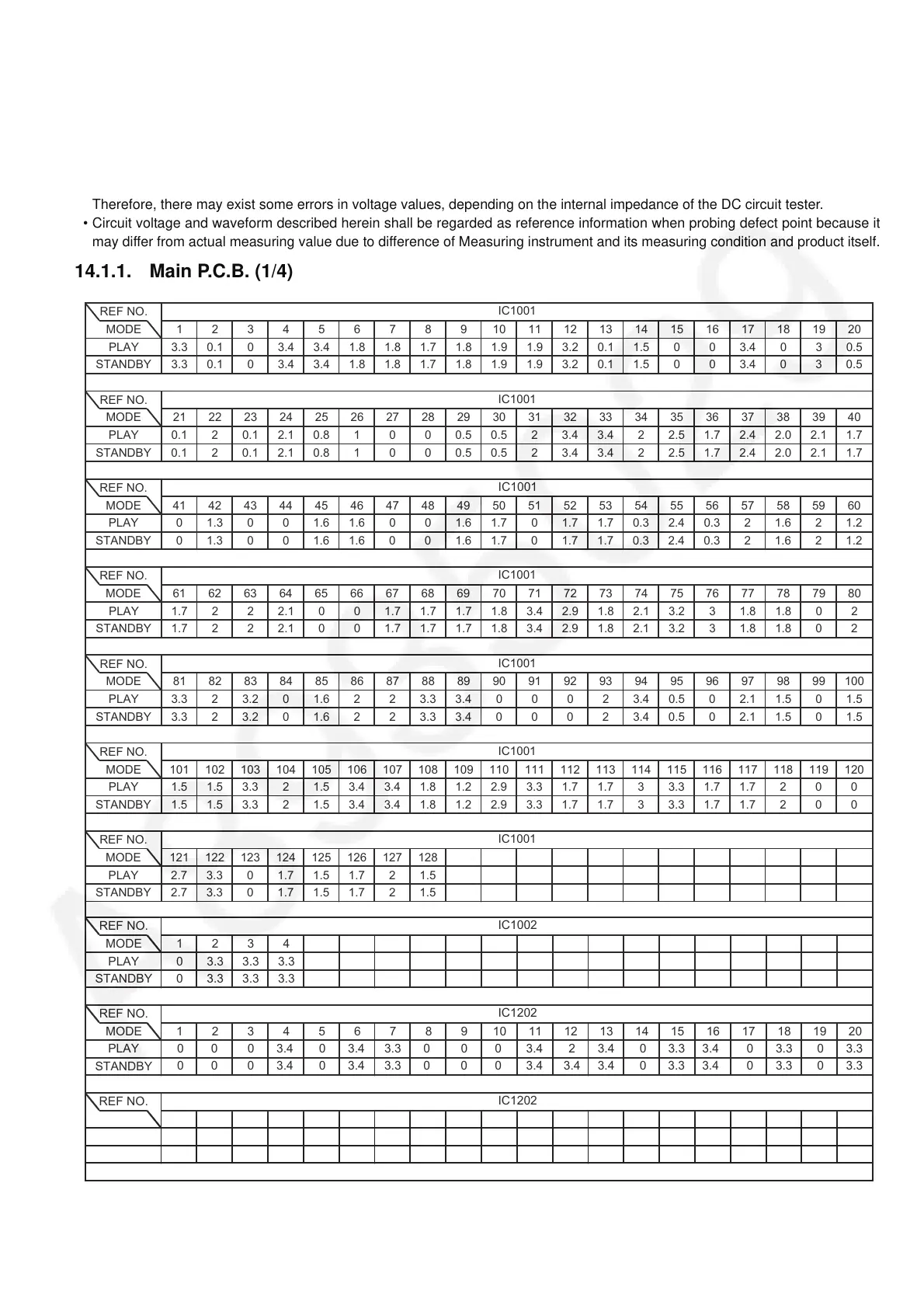

14.1.1. Main P.C.B. (1/4)
REF NO.
MODE 1 2 3 4
PLAY 0 3.3 3.3 3.3
STANDBY 0 3.3 3.3 3.3
REF NO.
MODE 1234567891011121314151617181920
PLAY
STANDBY
REF NO.
MODE 212223242526272829303132
PLAY
STANDBY
SA-MAX3500PU MAIN P.C.B
.
IC1002
IC1202
IC1202
0 0 0 3.4 0 3.4 3.3 0 0 0 3.4 2 3.4 0 3.3 3.4 0 3.3 0 3.3
0 0 0 3.4 0 3.4 3.3 0 0 0 3.4 3.4
3.4 0 2 3.4 3.4 3.4 2.1 3.4 0 0 0 3.4
3.4 0 3.4 0 0 3.4 3.4 0 0 0 0 3.4
3.4 0 3.3 3.4 0 3.3 0 3.3
REF NO.
MODE 1234567891011121314151617181920
PLAY 3.3 0.1 0 3.4 3.4 1.8 1.8 1.7 1.8 1.9 1.9 3.2 0.1 1.5 0 0 3.4 0 3 0.5
STANDBY 3.3 0.1 0 3.4 3.4 1.8 1.8 1.7 1.8 1.9 1.9 3.2 0.1 1.5 0 0 3.4 0 3 0.5
REF NO.
MODE 2122232425262728293031323334353637383940
PLAY 0.1 2 0.1 2.1 0.8 1 0 0 0.5 0.5 2 3.4 3.4 2 2.5 1.7 2.4 2.0 2.1 1.7
STANDBY 0.1 2 0.1 2.1 0.8 1 0 0 0.5 0.5 2 3.4 3.4 2 2.5 1.7 2.4 2.0 2.1 1.7
REF NO.
MODE 4142434445464748495051525354555657585960
PLAY 0 1.3 0 0 1.6 1.6 0 0 1.6 1.7 0 1.7 1.7 0.3 2.4 0.3 2 1.6 2 1.2
STANDBY 0 1.3 0 0 1.6 1.6 0 0 1.6 1.7 0 1.7 1.7 0.3 2.4 0.3 2 1.6 2 1.2
REF NO.
MODE 616263646566676869
70 71 72 73 74 75 76 77 78 79 80
PLAY 1.7 2 2 2.1 0 0 1.7 1.7 1.7 1.8 3.4 2.9 1.8 2.1 3.2 3 1.8 1.8 0 2
STANDBY 1.7 2 2 2.1 0 0 1.7 1.7 1.7 1.8 3.4 2.9 1.8 2.1 3.2 3 1.8 1.8 0 2
REF NO.
MODE 81828384858687888990919293949596979899100
PLAY 3.323.201.6223.33.400023.40.502.11.501.5
STANDBY 3.3 2 3.2 0 1.6 2 2 3.3 3.4 00023.40.502.11.501.5
REF NO.
MODE 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120
PLAY 1.5 1.5 3.3 2 1.5 3.4 3.4 1.8 1.2 2.9 3.3 1.7 1.7 3 3.3 1.7 1.7 2 0 0
STANDBY 1.5 1.5 3.3 2 1.5 3.4 3.4 1.8 1.2 2.9 3.3 1.7 1.7 3 3.3 1.7 1.7 2 0 0
REF NO.
MODE 121 122 123 124 125 126 127 128
PLAY 2.7 3.3 0 1.7 1.5 1.7 2 1.5
STANDBY 2.7 3.3 0 1.7 1.5 1.7 2 1.5
IC1001
IC1001
IC1001
IC1001
IC1001
IC1001
IC1001
