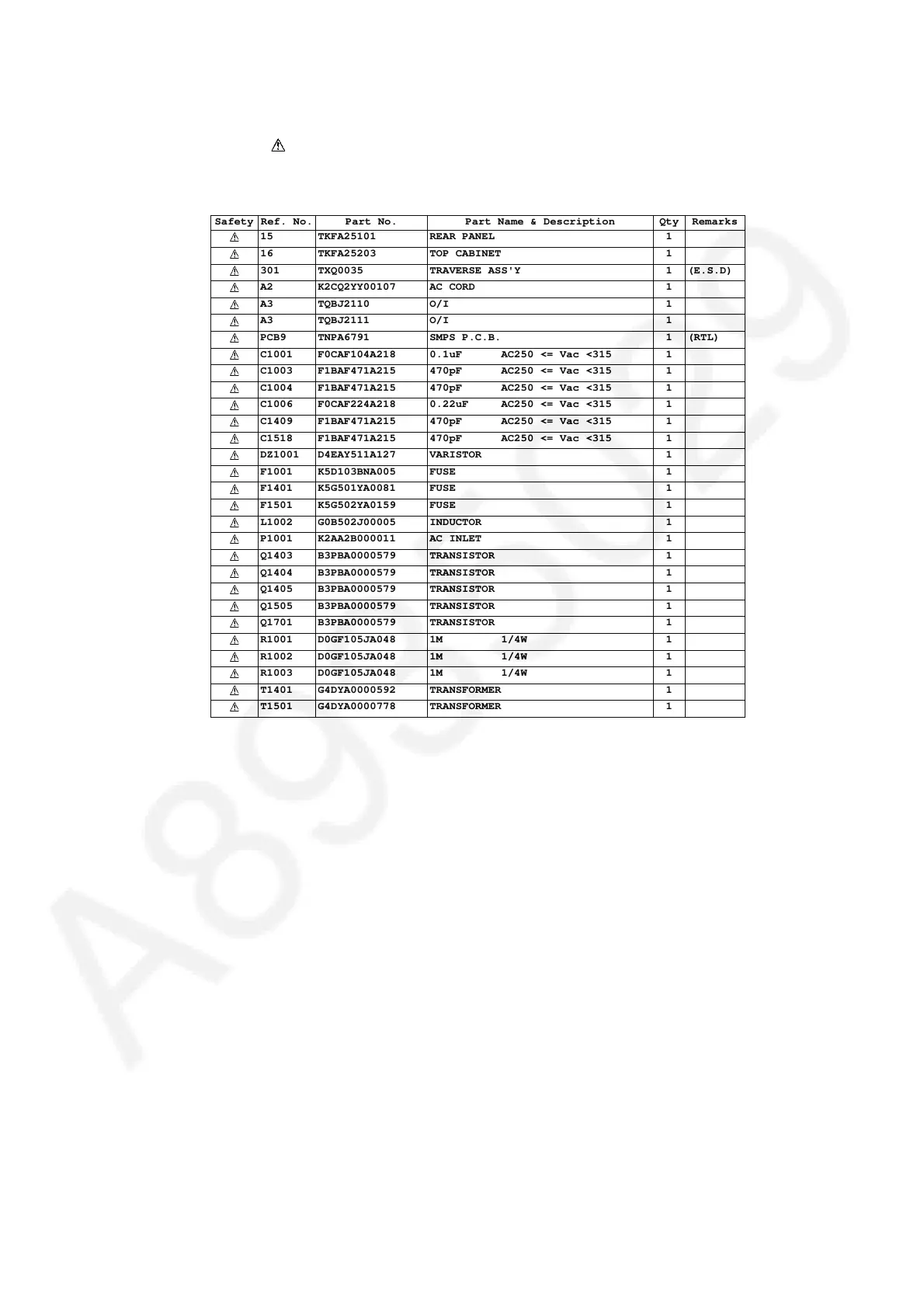

1.4. Safety Parts Information
Safety Parts List:
There are special components used in this equipment which are important for safety.
These parts are marked by in the Schematic Diagrams, Exploded View & Replacement Parts List. It is essential that these
critical parts should be replaced with manufacturer’s specified parts to prevent shock, fire or other hazards. Do not modify the
original design without permission of manufacturer.
Safety Ref. No. Part No. Part Name & Description Qty Remarks
15 TKFA25101 REAR PANEL 1
16 TKFA25203 TOP CABINET 1
301 TXQ0035 TRAVERSE ASS'Y 1 (E.S.D)
A2 K2CQ2YY00107 AC CORD 1
A3 TQBJ2110 O/I 1
A3 TQBJ2111 O/I 1
PCB9 TNPA6791 SMPS P.C.B. 1 (RTL)
C1001 F0CAF104A218 0.1uF AC250 <= Vac <315 1
C1003 F1BAF471A215 470pF AC250 <= Vac <315 1
C1004 F1BAF471A215 470pF AC250 <= Vac <315 1
C1006 F0CAF224A218 0.22uF AC250 <= Vac <315 1
C1409 F1BAF471A215 470pF AC250 <= Vac <315 1
C1518 F1BAF471A215 470pF AC250 <= Vac <315 1
DZ1001 D4EAY511A127 VARISTOR 1
F1001 K5D103BNA005 FUSE 1
F1401 K5G501YA0081 FUSE 1
F1501 K5G502YA0159 FUSE 1
L1002 G0B502J00005 INDUCTOR 1
P1001 K2AA2B000011 AC INLET 1
Q1403 B3PBA0000579 TRANSISTOR 1
Q1404 B3PBA0000579 TRANSISTOR 1
Q1405 B3PBA0000579 TRANSISTOR 1
Q1505 B3PBA0000579 TRANSISTOR 1
Q1701 B3PBA0000579 TRANSISTOR 1
R1001 D0GF105JA048 1M 1/4W 1
R1002 D0GF105JA048 1M 1/4W 1
R1003 D0GF105JA048 1M 1/4W 1
T1401 G4DYA0000592 TRANSFORMER 1
T1501 G4DYA0000778 TRANSFORMER 1
