4.6 Special Characteristics of Guards Made of Polycarbonate (Plexiglas)
Polycarbonate guards require special attention if they are to protect against possible flying tool parts (e.g. in
case of tool breakage of cutters or saw blades).
Polycarbonate guards must therefore be checked regularly for deep scratches, cracks, bulges or cloudiness
(visual inspection). If corresponding damage becomes apparent, the protective device must be replaced imme-
diately, as the required protective capability is no longer given.

Do not use oils, fuels or solvents to clean and maintain polycarbonate protective devices. Do
not use aggressive or toxic industrial cleaners that can damage the windows or bonding. Under
no circumstances may nitro thinner be used. The cleaner must be free of hydrocarbons.
4.6.1 Effect of cooling lubricants on polycarbonate
The ingredients in cooling lubricants can negatively influence the material properties of polycarbonate. When
cooling lubricants are used regularly (e.g. when machining aluminium), the polycarbonate guards should be
renewed every 2 years at the latest. Even if there is no externally visible damage, the material may no longer
have the required impact protection.
5 Machine Data
5.1 Technical Specifications
Table size:
1200 x 665 mm
Table height:
900 mm (± 20 mm)
Cutting length slide table:
3200 mm
Main saw blade speed [rpm]:
3000/4000/5000/6000
Cutting height at 90°:
max. 155 mm
Cutting height at 46°:
max. 105 mm
Cutting width (rip fence):
1030 mm
Pull-out cross-cut fence:
max. 3200 mm
Saw blade:
max. Ø 450 mm
Saw blade tilt range:
0° … +46°
Mitre fence angle:
46° (on both sides)
Saw blade (retractable u. table):
Ø 400 mm
Table extension:
750 x 655 mm
Table widening:
1200 x 600 mm
Motor power:
5.5 kW / 7.5 HP
Motor voltage:
230/400 V / 50 Hz
Protection class
IP54
Slide table surface:
coated
Space requirement:
7000 x 3500 mm
Net weight:
approx. 1051 kg
Suction nozzles:
120 / 80 mm
Manufacturer:
HOKUBEMA Maschinenbau GmbH
Graf-Stauffenberg-Kaserne
Binger Str. 28 | Halle 120
DE-72488 Sigmaringen (Germany)
Tel.: +49 (0) 7571 / 755-0
Fax: +49 (0) 7571 / 755-2 22

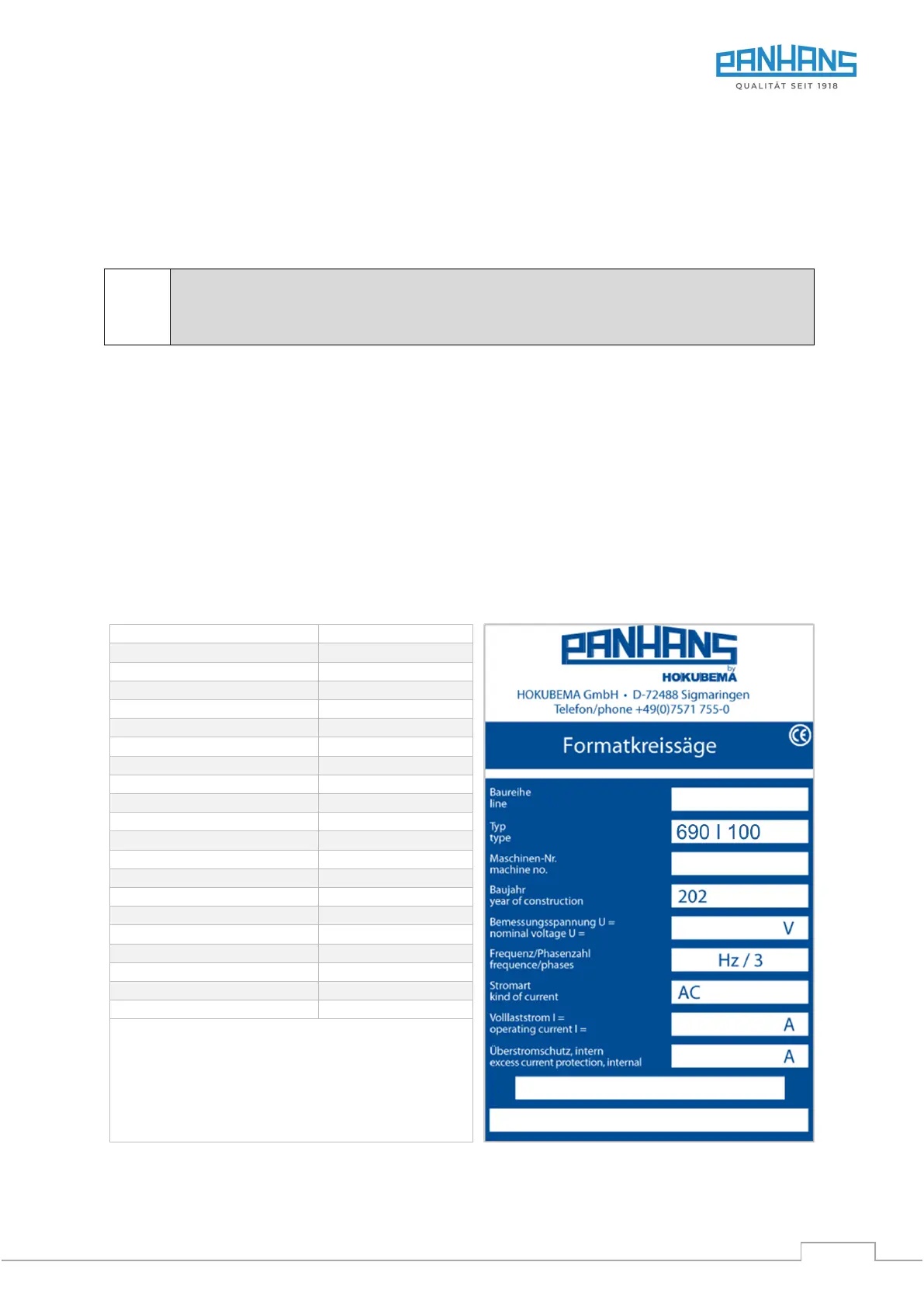

Figure 6: Nameplate
