PANHANS 690 - Figure 9: Dimensions (Top View)

BA_PH_690-100_EN_10-22.docx
27

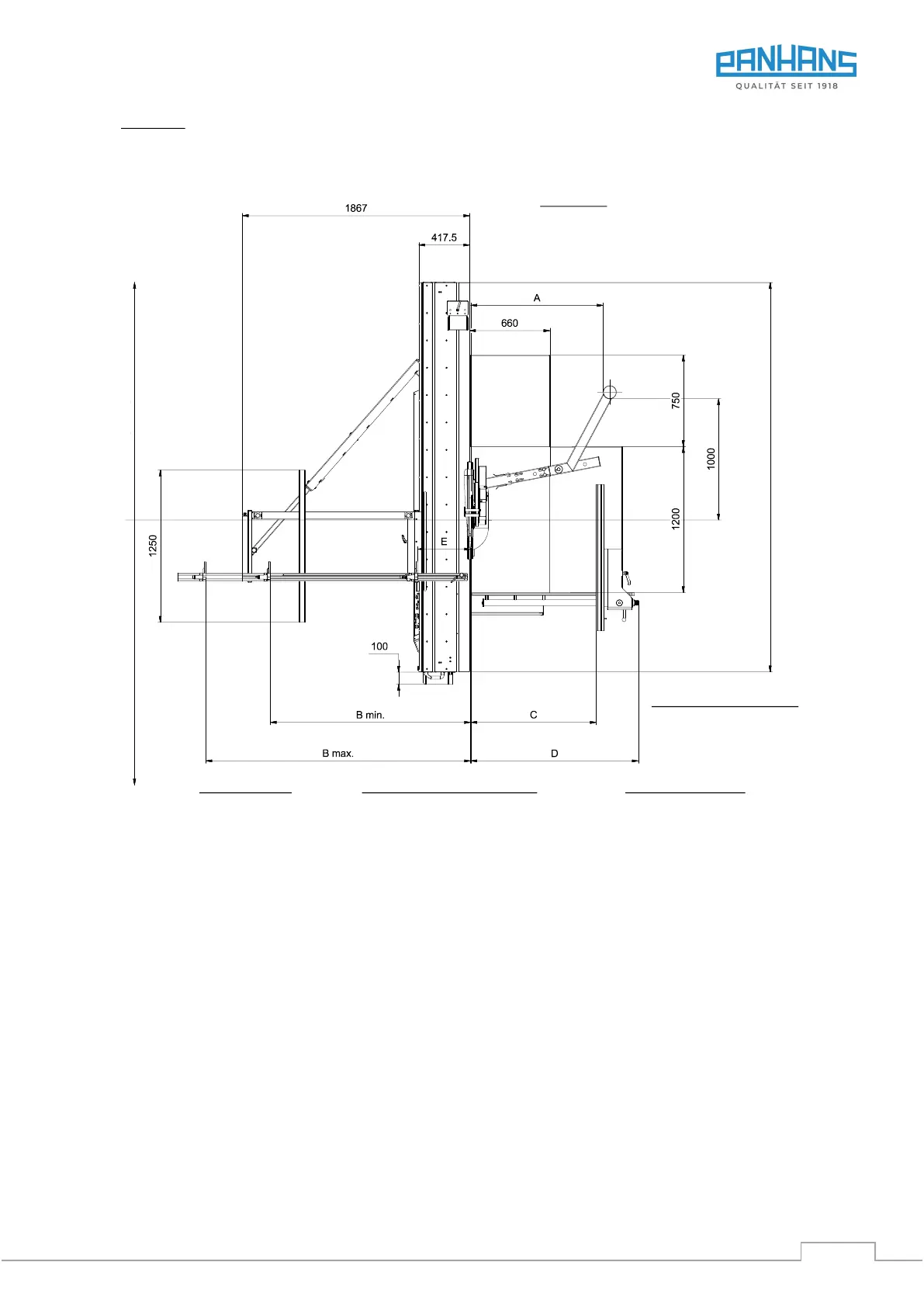

Figure 9: Dimensions (top view)
E = Front flip stop B = Cutting width cross-cut fence Cutting width rip fence
~ min. 130 Analog / Digital Option 830 mm
Telescopic pull-out min. 1650 / 1650 Standard 1030 mm
Telescopic pull-out max. 3200 / 3000 Option 1280 mm
Maximum installation space
Option 1180 mm
Standard 1380 mm
Option 1630 mm
Sliding table length
Orientation dimensions A, B,
C and D measured from the
sawblade
A = Aperture
Cutting width / Aperture width
Option 830 mm / 880 mm
Standard 1030 mm / 1080 mm
Option 1280 mm / 1330 mm
Sliding table length + 240 mm
Sliding table length + 280 mm
Sliding table
Table length / Cutting length
Option 2000 mm / 2000 mm
Option 2600 mm / 2600 mm
Standard 3200 mm / 3000 mm
Option 3800 mm / 3800 mm
