16.8 Digit PAB - Absolute Measuring System for the Rip Fence
The Digit-PAB is a cordless, battery-operated absolute
measuring system for the manually adjustable rip fence.
The current position value is visualised via an easy-to-
read digital display, which is housed in a swivelling
housing on the rip fence.
Due to the absolute measuring sensor, the rip fence
does not need to be calibrated additionally, even if it
has been swivelled under the table. The fence position
can be finely adjusted with an accuracy of 0.1 mm.
16.8.1 Digit-PAB Features
• Due to exact measurement repetitions of 1/10 mm, higher dimensional accuracy than a scale
• Dust and dirt insensitive, magnetic absolute measuring system with contactless scanning
• Swivelling range of the display housing 45° for an optimal view in every working position
• No calibration required, even when the fence is swivelled under the table
• Measurements and parameters are not lost when batteries are changed
• No disturbing power supply cables in the fence area
• Life of the 1.5 volt baby cell approx. 3 years
• Large, easy-to-read LCD display
• Quick and easy battery change
16.8.2 Digit PAB - Operation
• If the rip fence is folded under the table, the display shows “noCode”. This means that the magnetic
sensor no longer has contact to the magnetic tape and cannot record any measured values.
• As soon as the fence is folded into its working position, the correct position appears in the display.
16.8.3 Digit PAB – Rip Fence Capacities
The absolute measuring system with digital display is
available for different rip fence capacities:
1. Standard rip fence capacity 1030 mm
→ Art. No. 4755
2. Optional rip fence capacity
2
830 mm
→ Art. No. 4754
3. Optional rip fence capacity
3
1280 mm
→ Art. No. 4756
See also "Accessories" in the section 19.3.

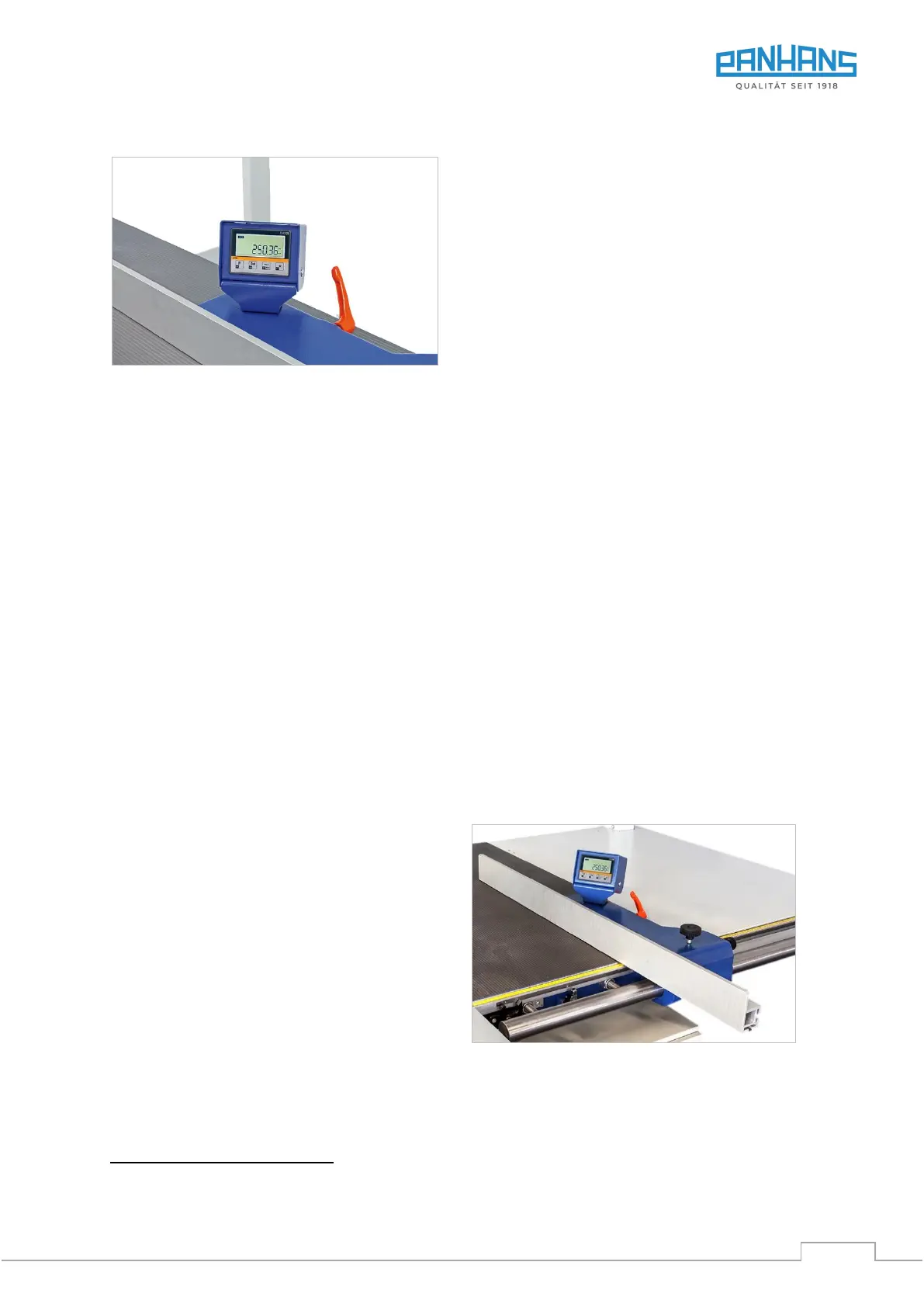

Figure 68: Rip fence with Digit-PAB
Only available with option “Rip fence capacity 830 mm” (Art. No. 4752).
Only available with option “Rip fence capacity 1280 mm“ (Art. No. 4753).
