16.5.2 Components & Overview

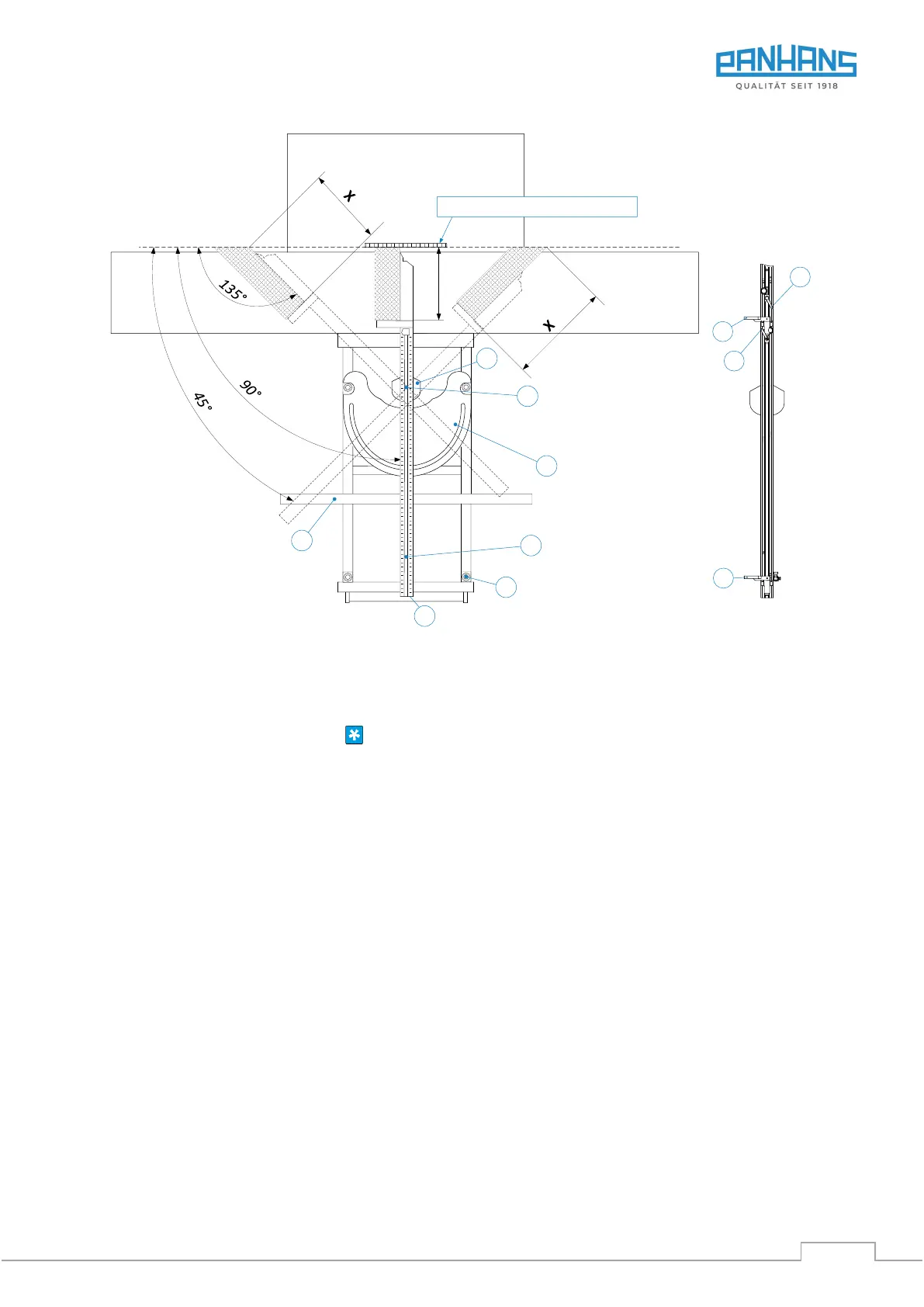

Figure 63: Super Gehrfix I overview
16.5.3 Calibrate Super Gehrfix II
To calibrate the Super Gehrfix II, it must first be positioned at 90° using the stop bolt (7) as shown in the illus-
tration above. Then press the button on the digital display to complete the calibration procedure.
➔ After successful calibration, the value 0.00° appears in the digital display.
16.5.4 Attach Cross-Cut Fence
• Tighten the clamping lever (1) on the cross-cut fence (L) to fix the fixture.
16.5.5 Set Length > 1885 mm
• Loosen flip stop (A) with (S1), set to 1885 mm using magnifying glass and clamp with (S1).
• Loosen flip stop (B) with (S2), move to the desired position and clamp with (S2).
16.5.6 Set Angle to 90 Degrees
For 90° cuts, the cross-cut fence (L) can be used in different positions:
• Via the fixing points (F) on the left or right of the cross slide. To do this, simply release clamping lever (1)
lift off the cross-cut fence (L) completely and insert it into the desired fixing points (F).
• In the center of the cross slide, using the stop bolt (7) for calibration (procedure see section 16.5.5).
