10 Mounting and Usage
10.1 Slide Table

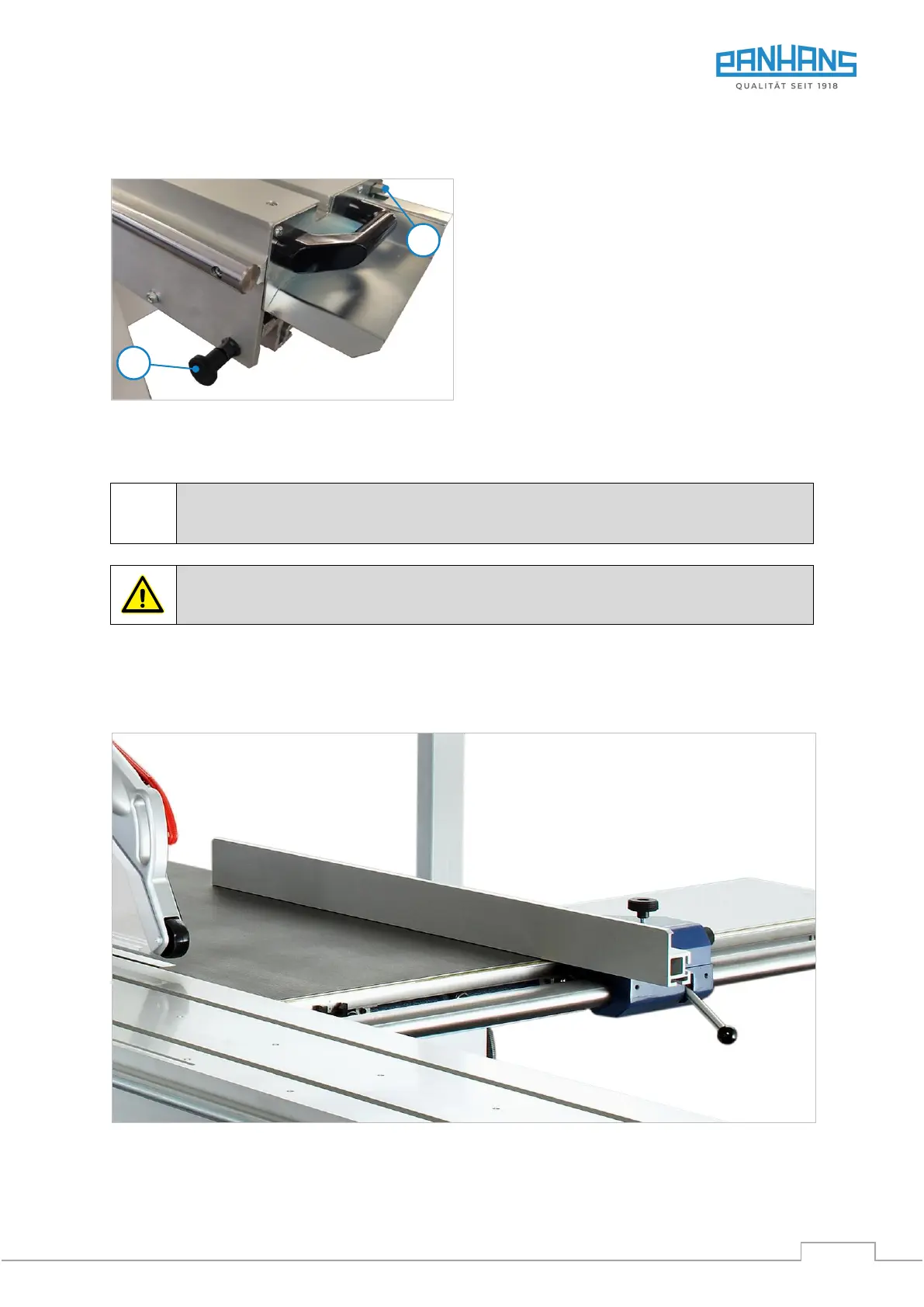

Figure 19: Slide table controls
When the sliding table saw is delivered, the slide
table is already fitted ready for operation.
• Loosen (pull out) the remote locking device (21).
• Move the slide table to the desired position.
• Close (press in) the remote locking device (21).
You may have to move the slide table slightly
forwards or backwards so that the lock engag-
es correctly.
The safety catch (20) is used to move the slide table out of the saw blade area (beyond the stop) during a saw
blade change (for more information see chapter 15.1).
If the machine is not used for a longer period of time, the slide table should be moved to a mid-
dle position. This prevents the rollers from being pressed in.
The slide table must not be locked during a cutting operation.
10.2 Rip Fence
The rip fence is used to feed the workpiece from the rear of the machine (to the right of the saw blade).
Figure 20: Rip fence
The rip fence is already fitted when the sliding table saw is delivered. Only the aluminium profile rail (4) still has
to be inserted (see next page and Figure 21).
