10.3 Mounting the Cross Slide

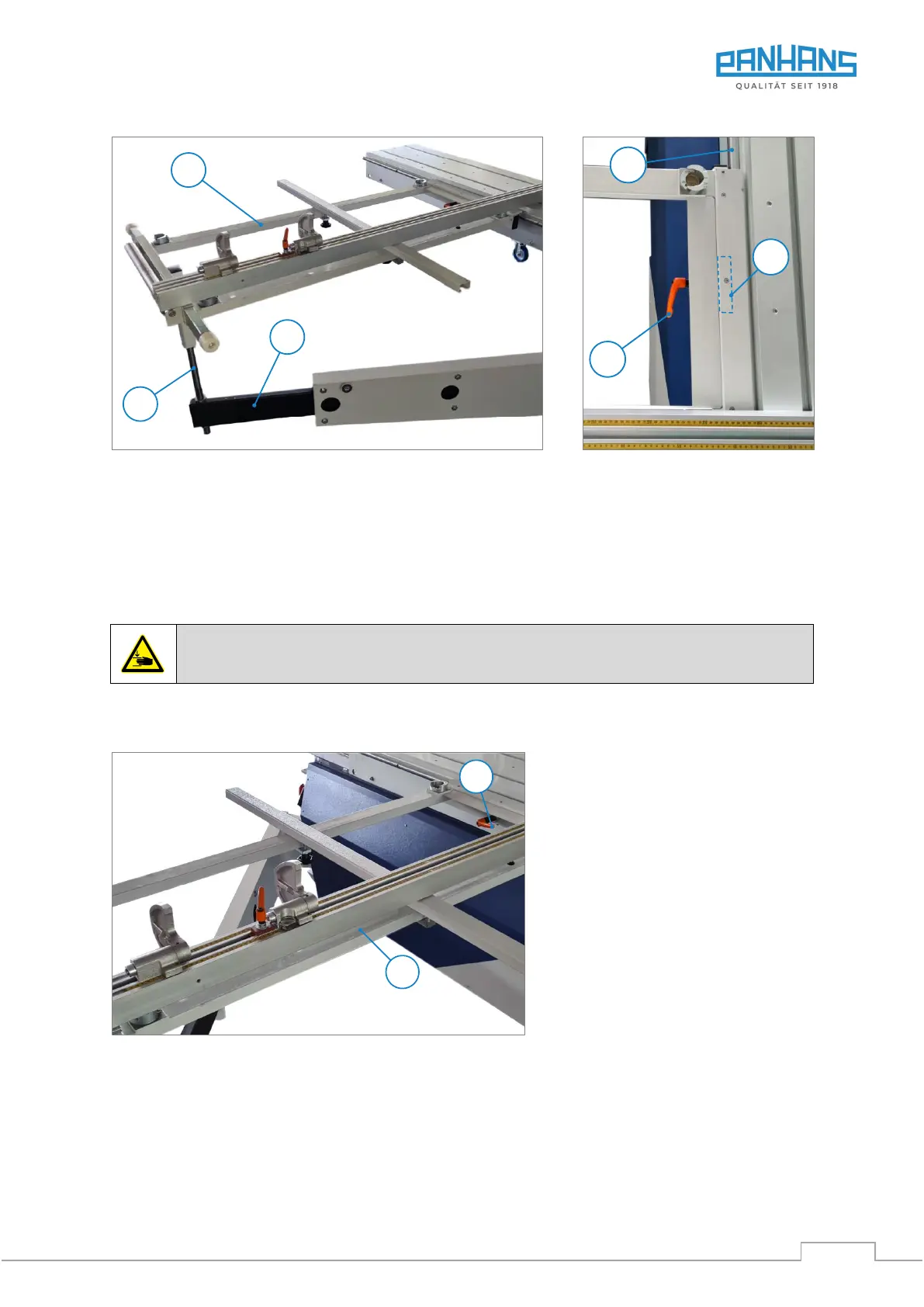

Figure 23: Cross slide mounting
Figure 24: Cross slide clamping
• Pull the slide table into the rearmost position and bring the swivel arm (6) into position.
• Lift the cross slide (22) with 2 persons and place it on the support (A) for the cross slide.
• Loosen the clamping rail (X) - in Figure concealed under the hook-in bar (25) - by means
of the clamping lever (24).
• Insert the clamping rail (X) into the cross slide guide (26) on the slide table.
• Fix the cross slide (22) by means of the clamping lever (24).
Warning! Danger of crushing when mounting the cross slide (clamping rail / cross slide).
10.3.1 Moving the Cross Slide
Figure 25: Moving the cross slide
The procedure for moving the cross slide
(22) is as follows:
• Loosen the clamping lever (24).
• Move the cross slide (22) to the
desired position.
• Fix the clamping lever (24).
