10.4 Swivelling Saw Blade Guard
Working position:
• Swivel the guard forwards and tighten the clamping screw in a ↻ clockwise direction.
Do not use tools!

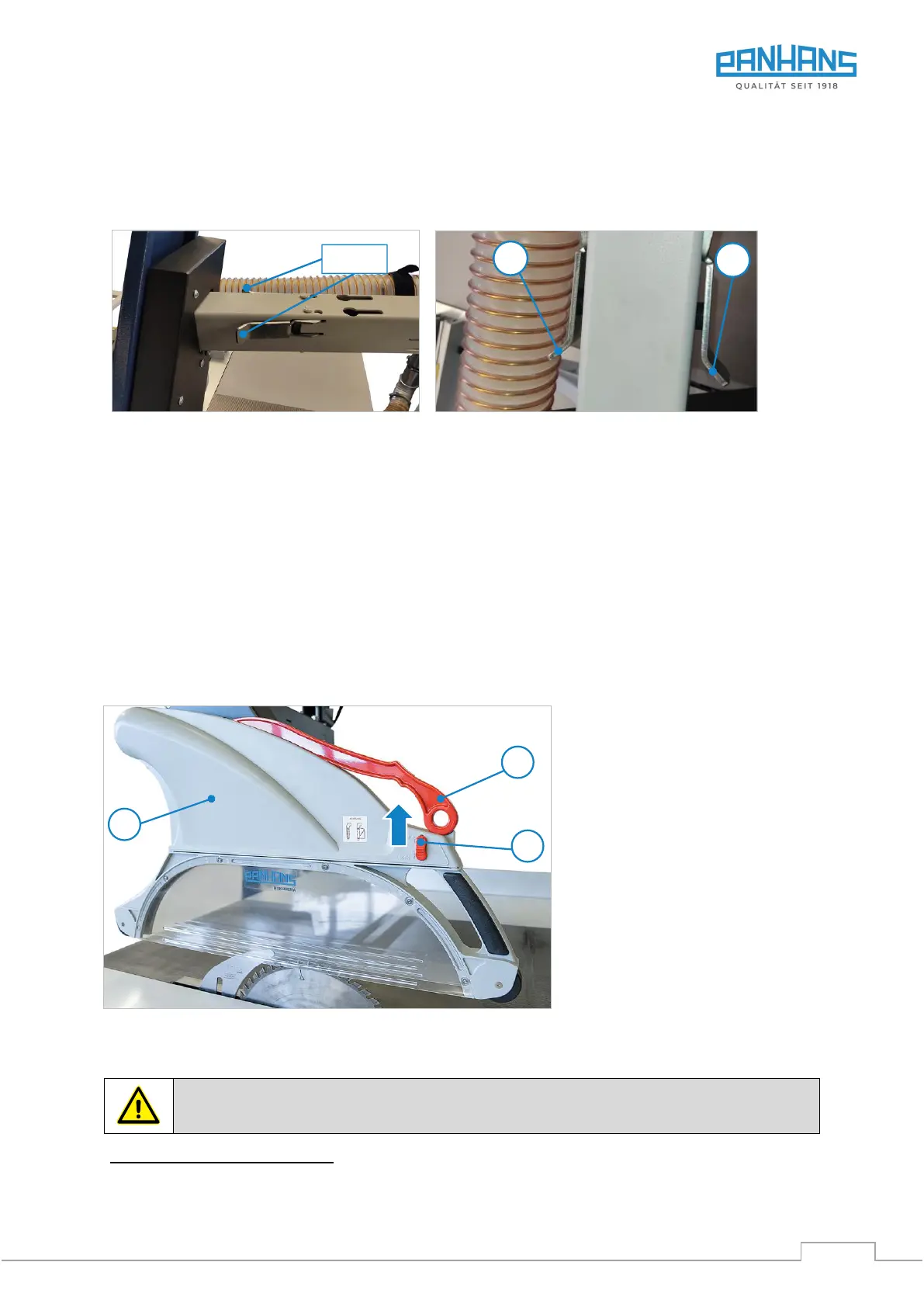

Figure 26: Swivel arm for saw blade guard
Swivel away:
• Press lever (1) or (2) backwards and swivel the saw blade guard to the left or right.
• Swivel the guard back again.
• Push lever (1) or (2) forward.
10.5 Change Saw Blade Guard
The sliding table saw is delivered with the blade guard already fitted. However, it may be necessary to ex-
change the blade guard.:
a) If the mounted guard is damaged or defective.
b) A special (wider) guard must be used for mitre cuts.
Figure 27: Fitting the saw blade guard
Fitting the saw blade guard:
1. Push the guard (1) to the upper-
most position. position.
2. Set the lock (2) to the “Open”
position so that the protective
hood disengages.
3. Pull out the guard (1) and lay
it down
1
.
4. Insert the other guard until it en-
gages and set the lock (2) back to
the “Lock” position.
After use, always place the push stick (3) in the holder on the guard unit.
The wider saw blade guard must always be fitted when working with a tilted saw blade.
1
The guard that is not needed can be stored in the storage tray at the rear
(under the tabletop, to the left of the column).
Levers
2
1
1
2
3
