Installing:
• Clean all parts thoroughly.
• Insert the saw blades into the bolts on the flanges, observing the direction of rotation (D),
see Figure 71.
• Screw in and tighten the screws (4 per flange).
• Screw the flanges together until the saw blades touch; for the (approx. 5) last turns pull the
knurled screw forward.
• The saw teeth must be behind each other and in the direction of rotation (D).
The knurled screw (R) must be correctly engaged.
• Place the setting mechanism onto the motor shaft, screw in the clamping screw and tighten it by hand.
To do this, use the QuickStep quick-release screw (see the following Figure).

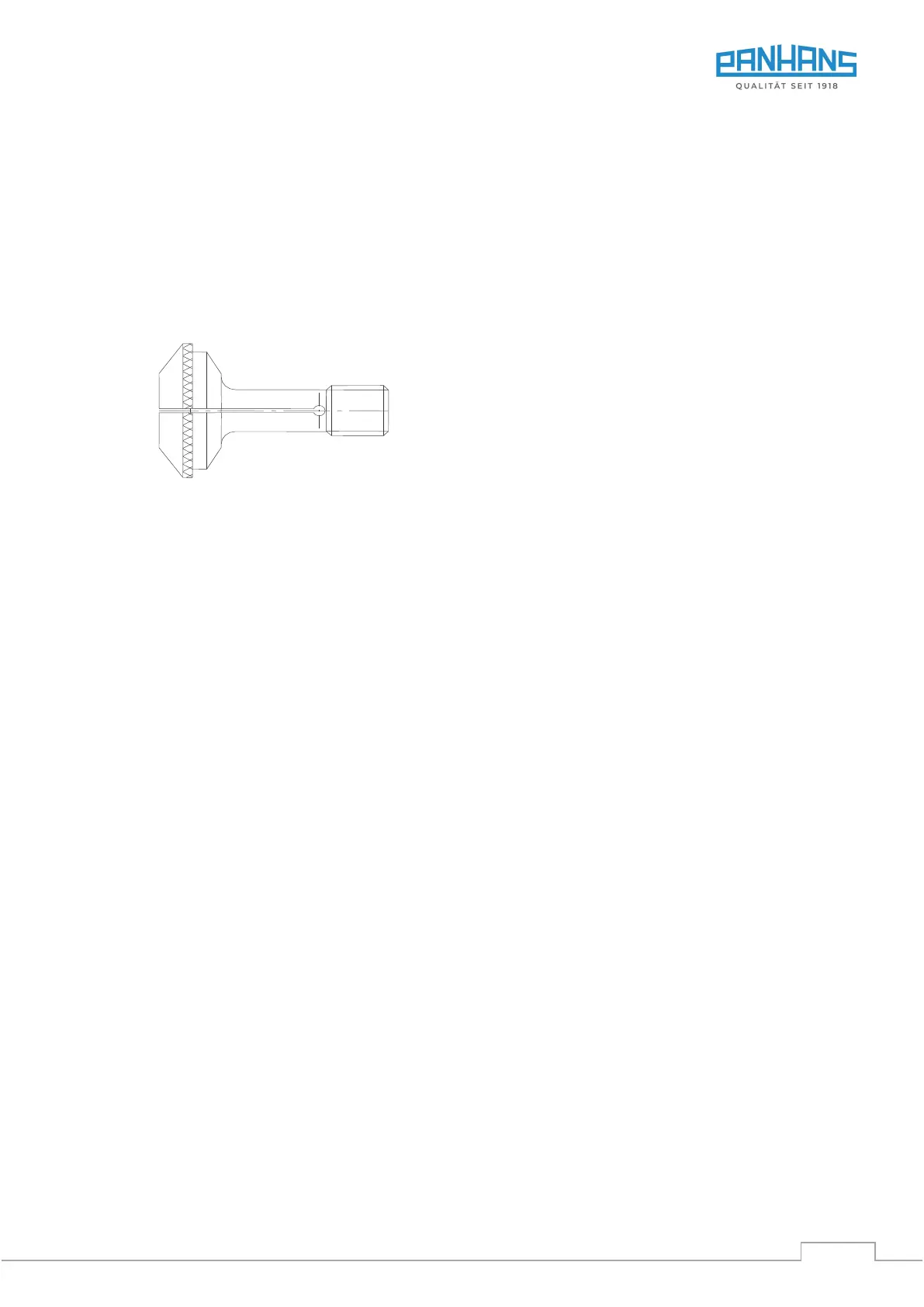

Figure 72: Quickstep quick-release screw
• Tighten the grub screw of the clamping screw with a torque of 12 Nm.
• Close the sawdust flap.
• Determine blade thickness by test cuts and readjust if necessary.
