VDMP3 Voice Module
VDMP3 Installation Instructions
Feature activation (PGMs)
Using the VDMP3, it is possible to activate the PGM utility keys or PGM groups that are programmed in the EVOHD+ panel.
VDMP3 feature numbers do not necessarily correspond to EVOHD+ utility key numbers.
For example:
NOTE: If the utility key in the EVOHD+ panel is programmed with a timer, the VDMP3 will not recognize PGM deactivation when the set timer elapses. As a result,
the VDMP3 may indicate that the PGM is ON when actually the timer has elapsed and the PGM is in fact OFF
Step English
1

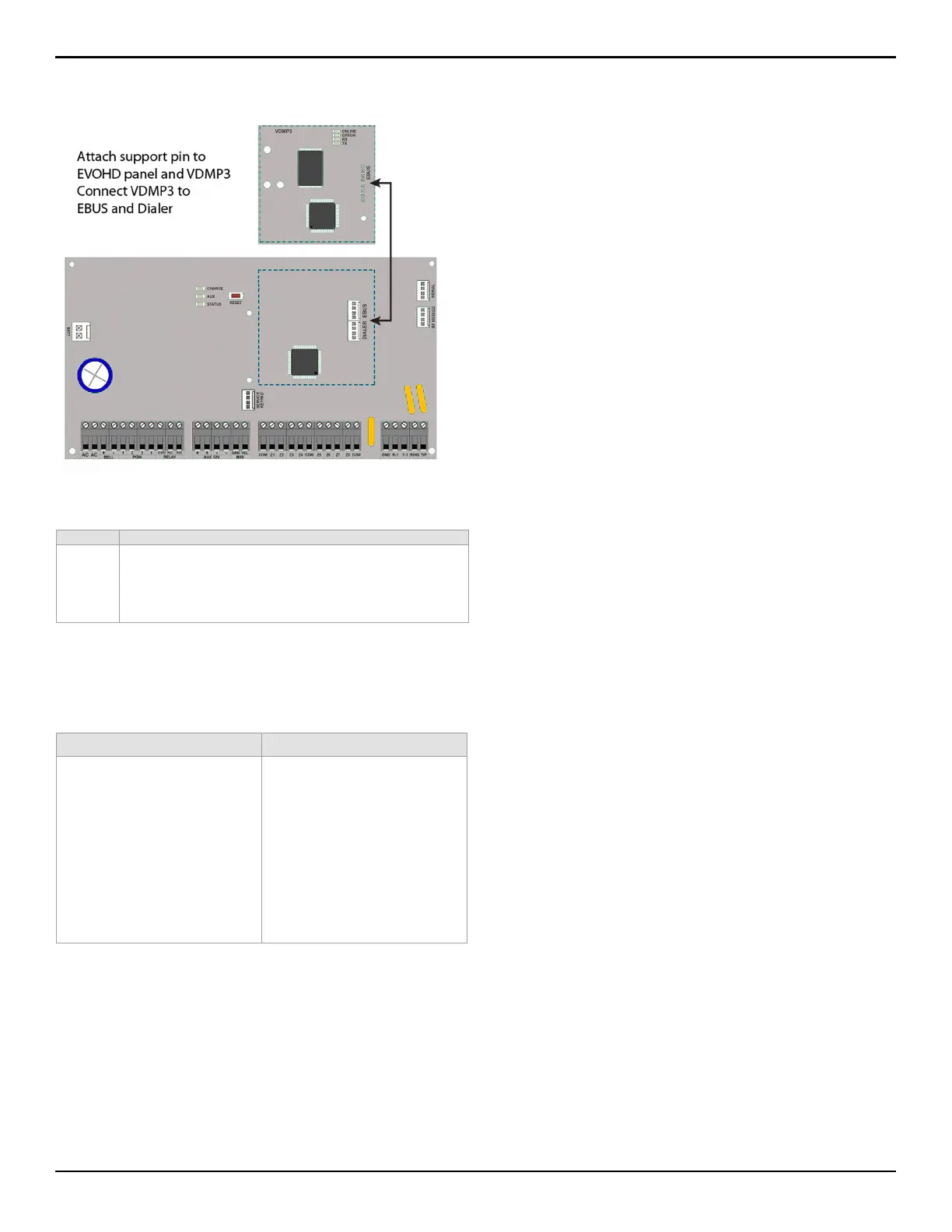

Install
 Power down the EVOHD+ control panel.
 Install the VDMP3 directly onto the EVOHD+ control panel’s EBUS
and
DIALER connectors as shown in "VDMP3 Installation
Instructions".
 Power up the EVOHD+ control panel.
VDMP3 Feature EVOHD+ Utility Key VDMP3 Feature EVOHD+ Utility Key
Feature 1 ON Utility Key 1 Feature 5 ON Utility Key 9
Feature 1 OFF Utility Key 2 Feature 5 OFF Utility Key 10
Feature 2 ON Utility Key 3 Feature 6 ON Utility Key 11
Feature 2 OFF Utility Key 4 Feature 6 OFF Utility Key 12
Feature 3 ON Utility Key 5 Feature 7 ON Utility Key 13
Feature 3 OFF Utility Key 6 Feature 7 OFF Utility Key 14
Feature 4 ON Utility Key 7 Feature 8 ON Utility Key 15
Feature 4 OFF Utility Key 8 Feature 8 OFF Utility Key 16
