EVOHD+ Installation Guide
57
System Labels
The existing label displayed on the LCD screen can be modified to suit the installation’s needs. Each label contains a maximum of 16 characters.
To re-program the System Label, enter the desired section and use Table9, Table11 and Table10 (page57) to modify the label. For other languages, refer to Table 12
to table 16 on page 59.

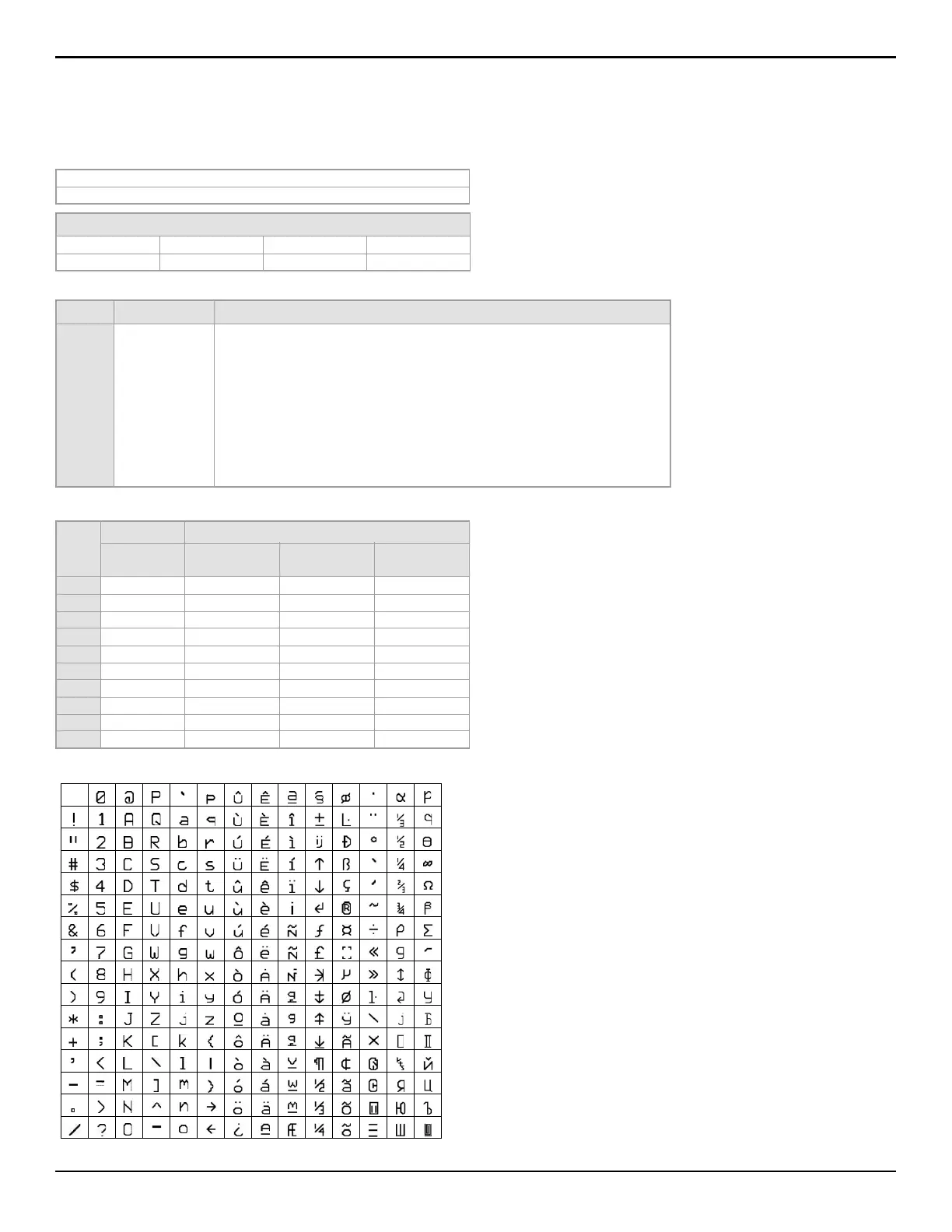

Table 11: Special Characters Catalogue
Zone Labels: Sections [0301] to [0396] represent Zones 01 to 96.
Door Labels: Sections [2301] to [2332] represent Doors 01 to 32.
Partition Labels:
Partition 1: [3100] Partition 3: [3300] Partition 5: [3500] Partition 7: [3700]
Partition 2: [3200] Partition 4: [3400] Partition 6: [3600] Partition 8: [3800]
Table 9: Keys
Press Feature Description
[STAY]
Insert Space Inserts a blank space in the cursor’s position
[FORCE]
Delete Deletes the character or blank space found at the cursor’s position
[ARM]
Delete Until the End Deletes all characters and spaces to the right of the cursor and at the cursor's position
[DISARM]
Numeric or
Alphanumeric
Switches from numeric keys to alphanumeric keys and vice versa (see Table 10)
[BYP]
Lower or Upper
Case
Switches the case setting from lower to upper case and vice versa
[MEM]
Special Characters
The cursor will turn into a flashing black square. Enter the 3-digit number that represents the
desired symbol (see table 11 on page 57, table 15 on page 58 and table 16 on page 59).
Table 10: Numeric and Alphanumeric keys
Key
Numeric Alphanumeric
Press key
one time
Press key
one time
Press key
two times
Press key
three times
[0] 0 --- --- ---
[1] 1A B C
[2] 2D E F
[3] 3G H I
[4] 4J K L
[5] 5M N O
[6] 6P Q R
[7] 7S T U
[8] 8V W X
[9] 9Y Z
032 048 064 080 096 112 128 144 160 176 192 208 224 240
033 049 065 081 097 113 129 145 161 177 193 209 225 241
034 050 066 082 098 114 130 146 162 178 194 210 226 242
035 051 067 083 099 115 131 147 163 179 195 211 227 243
036 052 068 084 100 116 132 148 164 180 196 212 228 244
037 053 A069 085 101 117 133 149 165 181 197 213 229 245
038 054 070 086 102 118 134 150 166 182 198 214 230 246
039 055 071 087 103 119 135 151 167 183 199 215 231 247
040 056 072 088 104 120 136 152 168 184 200 216 232 248
041 057 073 089 105 121 137 153 169 185 201 217 233 249
042 058 074 090 106 122 138 154 170 186 202 218 234 250
043 059 075 091 107 123 139 155 171 187 203 219 235 251
044 060 076 092 108 124 140 156 172 188 204 220 236 252
045 061 077 093 109 125 141 157 173 189 205 221 237 253
046 062 078 094 110 126 142 158 174 190 206 222 238 254
047 063 079 095 111 127 143 159 175 191 207 223 239 255
