EVOHD+ Installation Guide

Installation

Recommended Installation Procedure

1. Connect a small group of modules, including a keypad. See Figure 5 on page 10 for connection information.

2. Connect the battery and AC power. Enter section [4000] (see section on page 56). Only the Clock Loss trouble and/or Bell Absent trouble should appear. Verify

the connection if a module does not appear in section [4000], or if a module trouble occurs.

3. Disconnect AC power and the battery, follow steps 2, 3 and 4 for other modules.

4. If modules were removed, enter [4005] (see section on page 56).

5. Connect an LCD keypad at various points from the control panel and use the keypad’s built-in voltmeter.

NOTE: To comply with 50131 requirements, unit must be installed in an approved tamper enclosure.

Location & Mounting

Select a site that is not accessible to intruders and leave at least 2" around the box to allow proper ventilation and heat dissipation. The site should be dry and close

to an AC, ground and telephone line connection.

EVOHD+ Control Panel Installation

Once the location of the box has been completed, install the panel as illustrated.

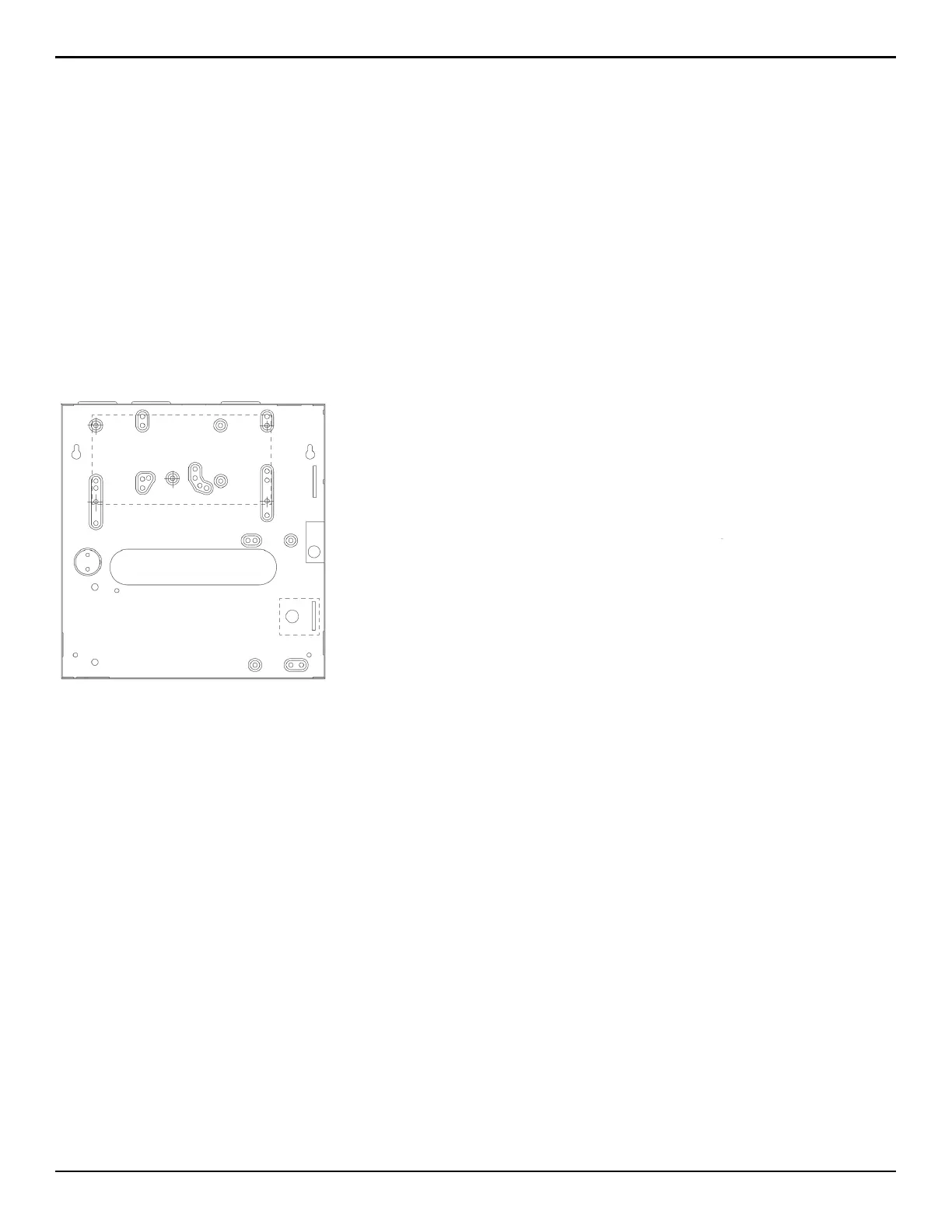

Figure 1: EVOHD+ Installation

Earth Ground

Connect the ground connector to the enclosure and cold water pipe or grounding rod as per local electrical codes.

AC Power

Use a transformer with a minimum 40VA rating. For increased power use a 75VA rating. With a 40VA transformer, Battery charging is limited to 750mA and auxiliary

output is limited to 1 Amp. With a 75VA transformer, the battery charge can be set to 1.5Amp and the auxiliary can reach 2 Amp. For UL Listed systems, use model

#BE156240CAA. For CSA listed systems, use model #BE116240AAA. Do not use any switch-controlled outlets to power the transformer. Depending on the

transformer being used, you must program the panel accordingly. Enter section [3002] to program the correct transformer (default is set to 75 VA).

NOTE: Do not connect the transformer or the backup battery until all wiring is completed. When powering up the EVOHD+ control panel, the panel will begin a

module scan.

WARNING: You must program the correct transformer size (Ex: 40VA, 75VA). Using a transformer with a lower VA than the one programmed may overload.

Installation of TK278 tamper kit

(use single screw to attach bracket to wall)
