EVOHD+ Installation Guide

24Hr Freeze Zones*

SECTION [0400]: FIRST DIGIT = B

ECTIONS [0101] TO [0196]: FIRST DIGIT = B

When a 24Hr Freeze zone opens, the control panel will immediately generate an alarm.

* UL Note: UL Listed compatible devices must be used for UL systems. For UL Listed systems, this type of zone must be programmed as a silent auxiliary alarm.

Delayed 24Hr Fire Zone (Not to be used with UL Listed systems)

SECTION [0400]: FIRST DIGIT = C

ECTIONS [0101] TO [0196]: FIRST DIGIT = C

The Delayed 24Hr Fire Zone definition from Figure 14 on page 25 is used in homes where a smoke detector often generates false alarms. A zone programmed as Fire

becomes normally open and requires an EOL resistor.

The keypads must be assigned to the same partition as the Delayed 24Hr Fire zone for the buzzer to activate.

* UL Warning: For UL/ULC installations, a Fire zone cannot be bypassed and its alarm type must be Pulsed (audible).

Standard 24Hr Fire Zone

SECTION [0400]: FIRST DIGIT = D

ECTIONS [0101] TO [0196]: FIRST DIGIT = D

A zone programmed as Fire becomes normally open and requires an EOL resistor. When a Standard 24Hr Fire Zone triggers, the control panel can:

 send a Zone Alarm report code page 40.

 send a Fire Loop Trouble Report (page 43) if a tamper/wiring fault occurs on a Fire Zone. A “Zone Fault Trouble” will also appear in the keypad's Trouble Display.

 generate a Fire alarm, which can be silent, pulsed, steady or report only. Fire alarms generate an intermittent signal (see Figure 13).

* UL Warning: For UL/ULC installations, a Fire Zone cannot be bypassed and its alarm type must be Pulsed (audible).

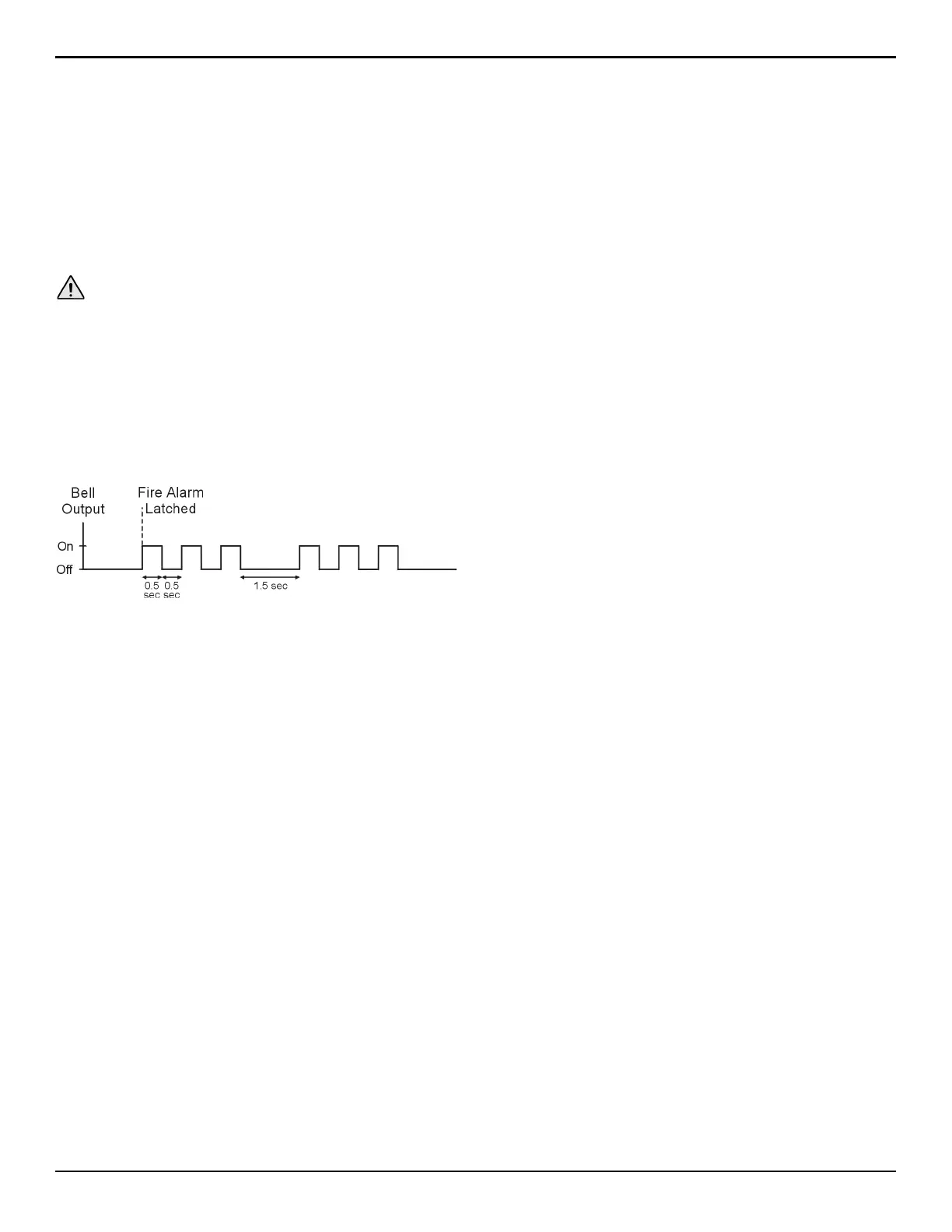

Figure 13: Bell/Siren Output During Fire Alarm

Stay Delay Zone

SECTION [0400]: FIRST DIGIT = E AND F

ECTIONS [0101] TO [0196]: FIRST DIGIT = E AND F

Using the Regular or Force arming methods, the control panel processes the zone as an Instant zone. Using the Stay or Instant arming methods and the zone is

triggered, the control panel will not generate an alarm until the programmed Stay Delay elapses. A zone defined as Stay Delay 1 follows the Entry Delay 1 Timer of

its assigned partition. A zone defined as Stay Delay 2 follows the Entry Delay 2. To program the Entry Delay Timers, refer to Entry Delays 1 and 2 on page 22.

Zone Partition Assignment

SECTION [0400]: SECOND DIGIT = 1 TO 8

ECTIONS [0101] TO [0196]: SECOND DIGIT = 1 TO 8

Assign zones to one partition.

Zone Options

The zone options from are described below. Refer to the EVOHD+ programming guide for additional information on Zone Programming.
