4.3 Bus setting via front panel

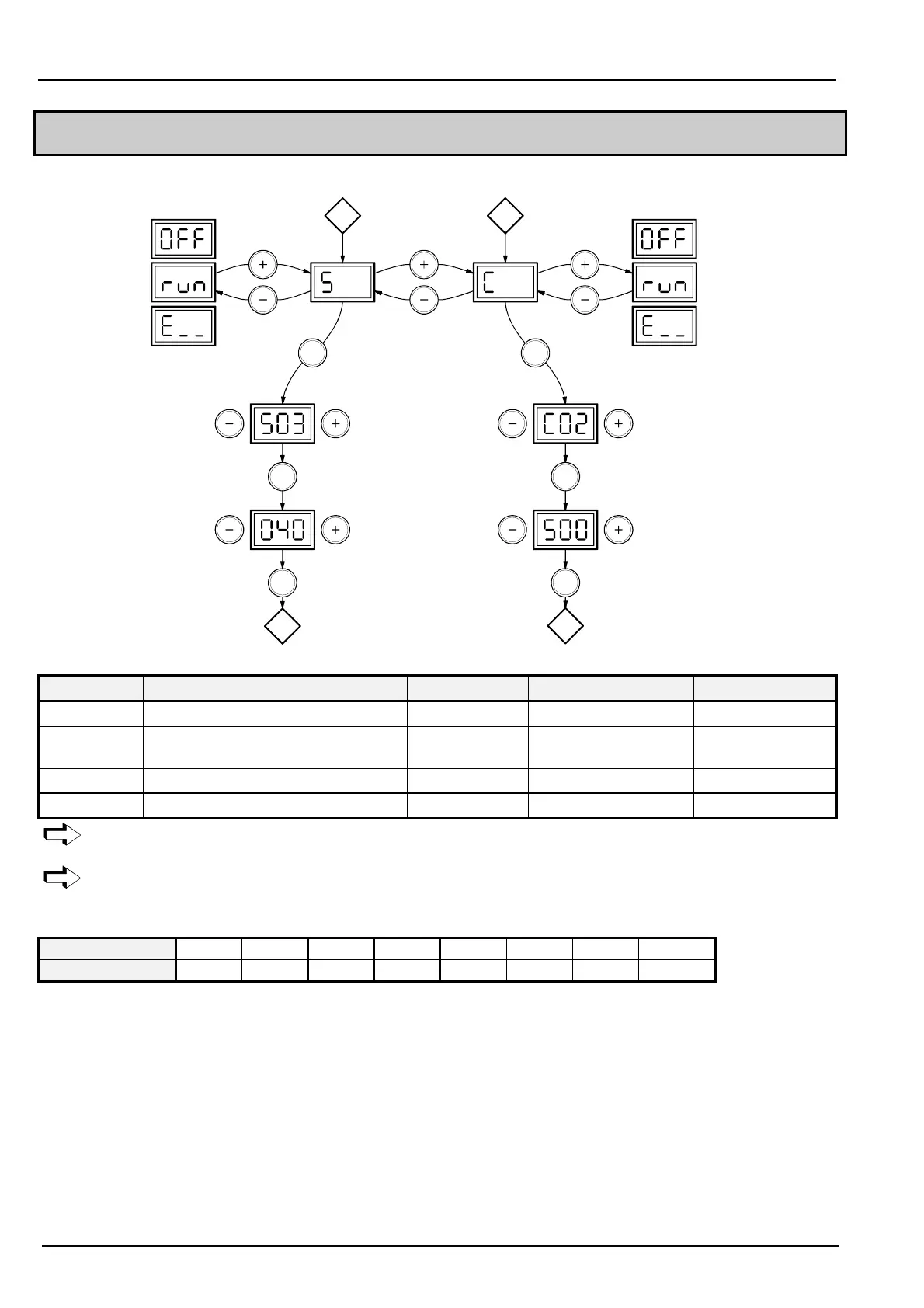

The bus protocol (COMPAX parameters P194, P195 and P196) can be set via the COMPAX front panel. Procedure:
call smaller
Status
number
without
function
decrease
value
increase
value
choose
Status
number
choose
number of
C-parameter
status
indicator
change
C-parameter
without
function
call higher
Status
number
call smaller
C-parameter
number
call higher
C-parameter
number
Enter
Enter
Enter
A
Enter
B
A
B
Enter
Enter
choice of operation
modes
Meaning:
C parameters Meaning Range COMPAX parameters Active on
C01
Node ID (Address)
1 ... 127 P194
Power on
C02
Baud rate (symbolic setting in
accordance with the following list)
0...999 P195
Power on
C03
Bus protocol
0 ... 255 P196
Power on
C04 - C11
reserved
Please refer to the operating instructions of the bus option used for the relevant range of values for the bus and the
precise setting options.
The C - parameters are transferred with Power off / Power on!
Baud rate - setting via C02
Display value
20 50 100 125 250 500 800 999
Baud rate [Baud]
20 000 50 000 100 000 125 000 250 000 500 000
800 000 1 000 000
