Detail of the motor shaft mail correctly
fitting in the carving of PULLER F
Repositioning puller/ejector F in the case of a motor being stuck

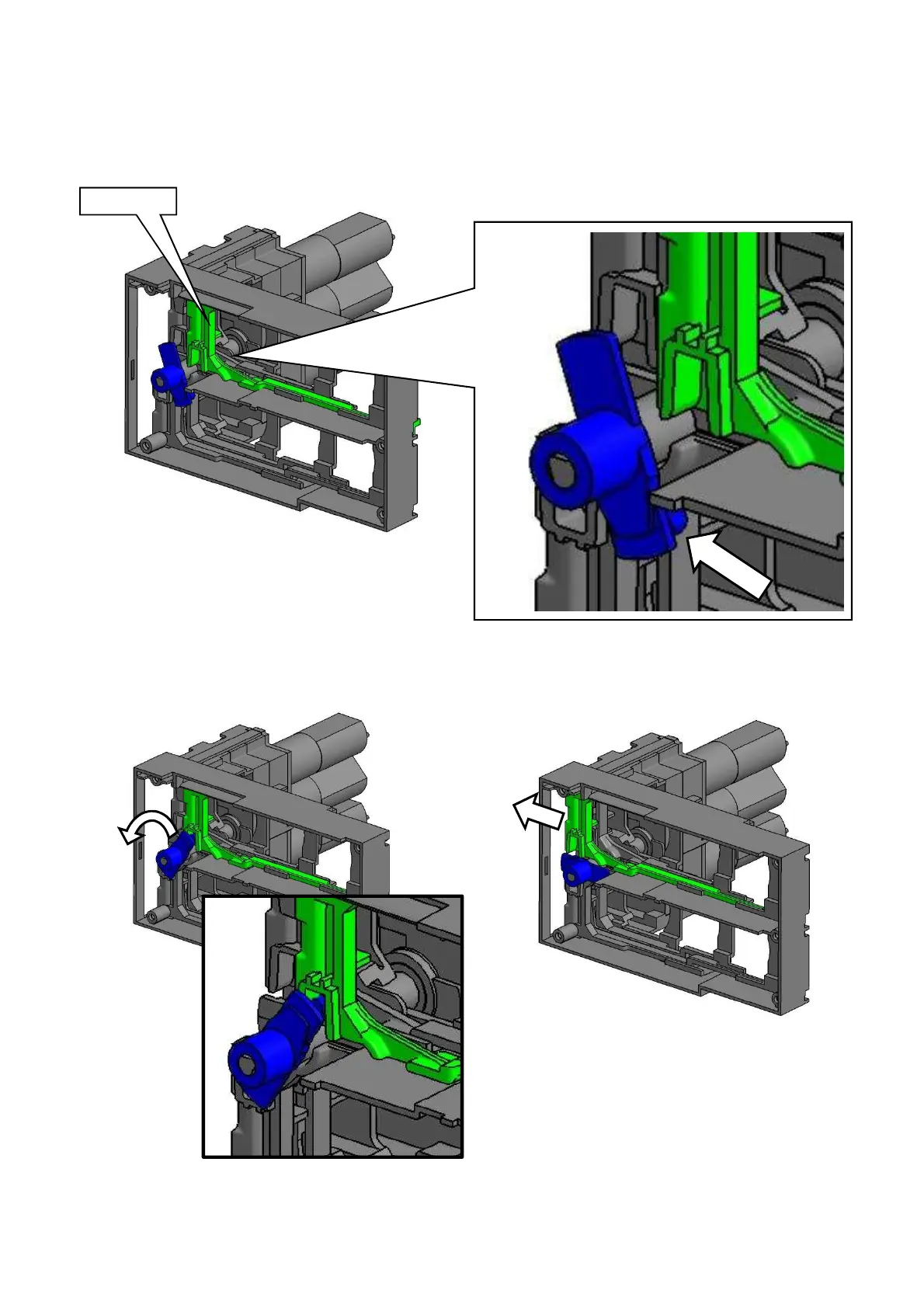

The image here below (fig.14) shows puller F “from below”: the puller is positioned completely forward but
the motor shaft nail is not in its correct position (see detail).
The motor shaft must rotate till its nail fits into the carving on the puller F and on till the puller is dragged
to the starting position. Press C more than once to cause the motor shaft to rotate in the correct direction
Keep on pressing C (short rotations of the motor shaft) till the puller reaches its correct position (Fig.16).
