8.3.4.2 Cable-operated gear shift, dual-cable
Alternative
 For a smooth gear shift, set the adjusting sleeves
underneath the chain stay on the frame.
 The shift cable has around 1 mm play when it is
pulled out gently.

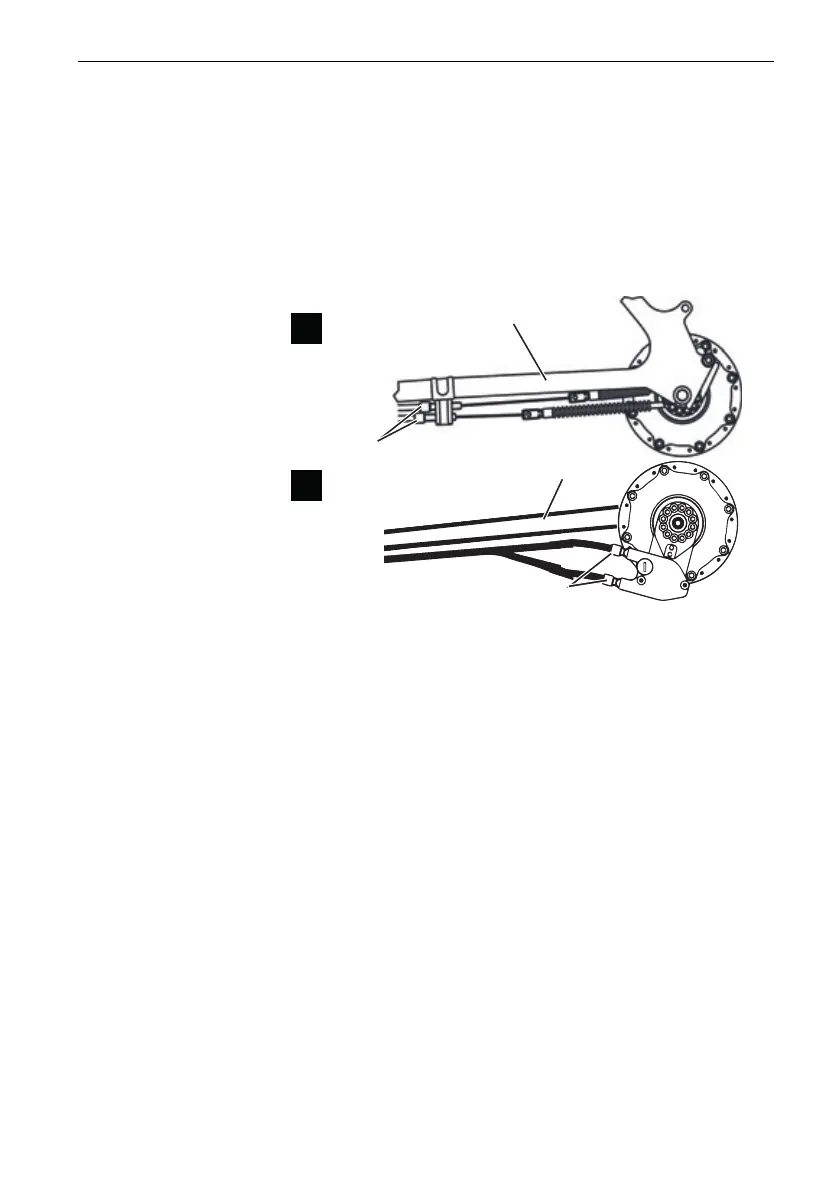

Figure 53: Adjusting sleeves (2) on two alternative versions (A andB) of a
dual-cable cable-operated gear shift on the chain stay (1)
1
A
B
1
2
2
1
