Description
3.3 Wheel and suspension

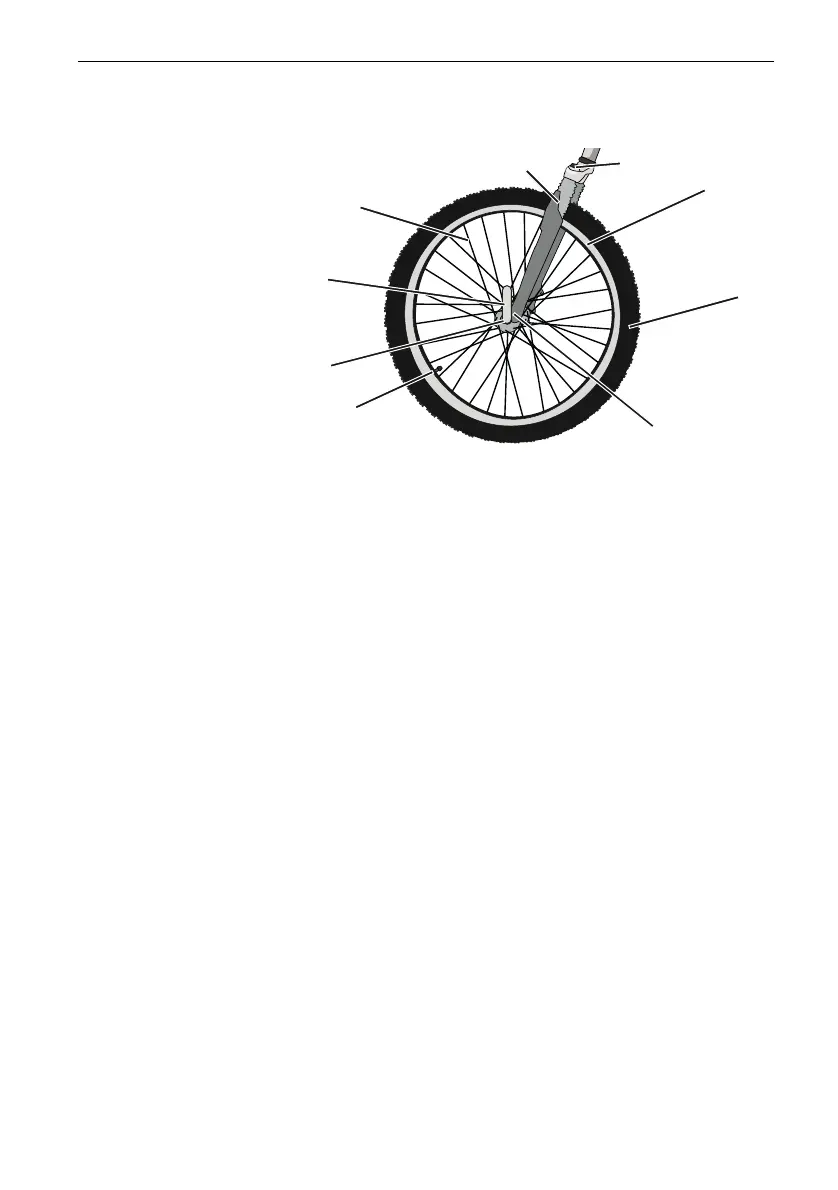

Figure 6: Components of the wheel, example of front wheel
1 Tyre
2Rim
3 Suspension fork head with setting wheel
4 Shock absorber
5 Spoke
6 Quick release
7Hub
8 Valve
9 Fork end of the shock absorber
3.3.1 Valve
Each wheel has a valve. It is used to fill the tyre with
air. There is a valve cap on each valve. The screw-on
valve cap keeps out dust and dirt.
The bicycle either has a classical Dunlop valve, a
Presta valve or a Schrader valve.
1
2
4
5
8
7
3
9
6
