Pegasus Piazza - Mounting the Wheel with Screw-On Axle (20 MM); Figure 19: Tightening the Inserted Axle; Figure 20: Tightening the Axle

MY19-P073_1.0_09.11.2018
45
Transportation, storage and assembly
5.3.5.2 Mounting the wheel with screw-on axle (20 mm)
Alternative
 Insert the axle completely on the drive side.

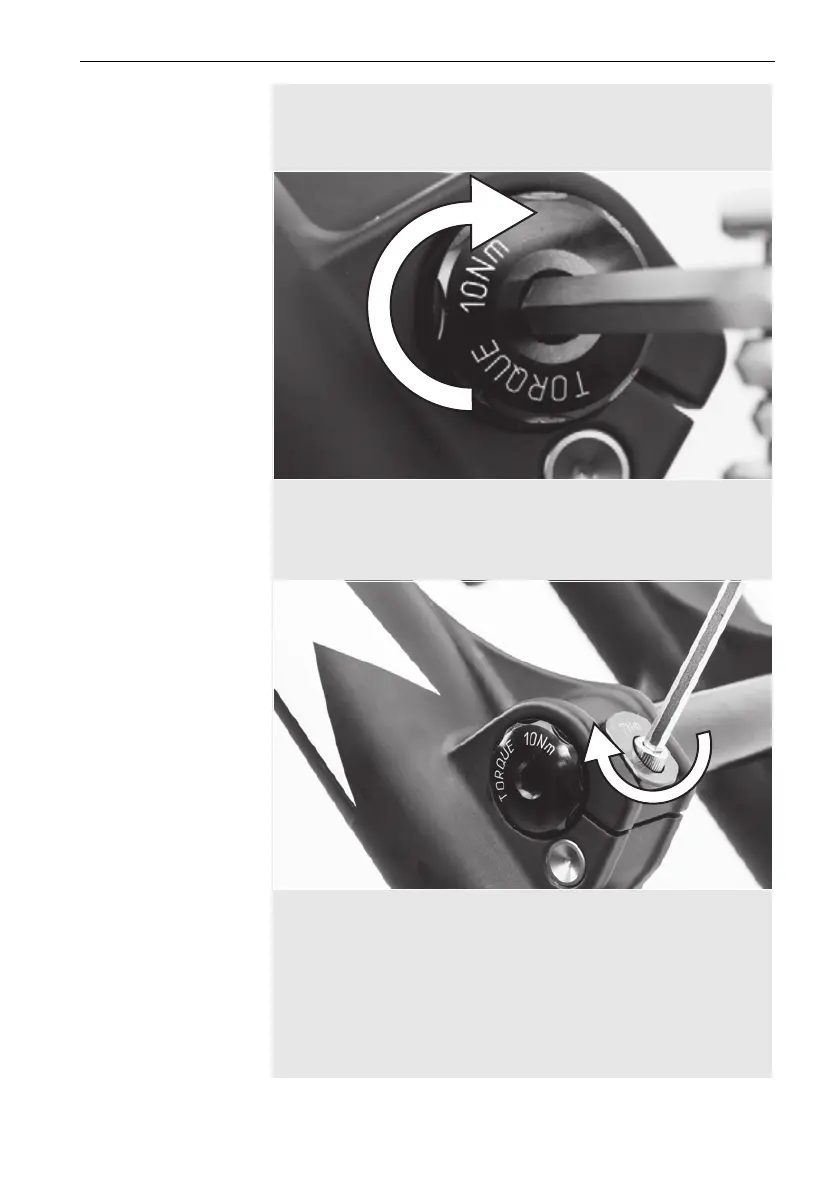

Figure 19: Tightening the inserted axle
 Tighten the securing clip with a 4 mm hexagon
socket spanner to 7 Nm.
Figure 20: Tightening the axle
