Maintenance
8.3.5 Offsetting the brake lining wear
8.3.5.1 Hydraulically operated rim brake
Alternative
The setting bolt on the brake lever of the hydraulic rim
brake is used to offset the brake lining wear. If the
profile of the brake linings has a remaining depth of
just 1 mm, the brake linings need to be replaced.
In order to reduce the free travel and offset the
brake lining wear, screw the setting bolt in.
In order to increase the free travel, screw the setting
bolt out.
With the optimum setting the pressure point, i.e. the
point at which the brake takes effect, is reached
after 10 mm of free travel.

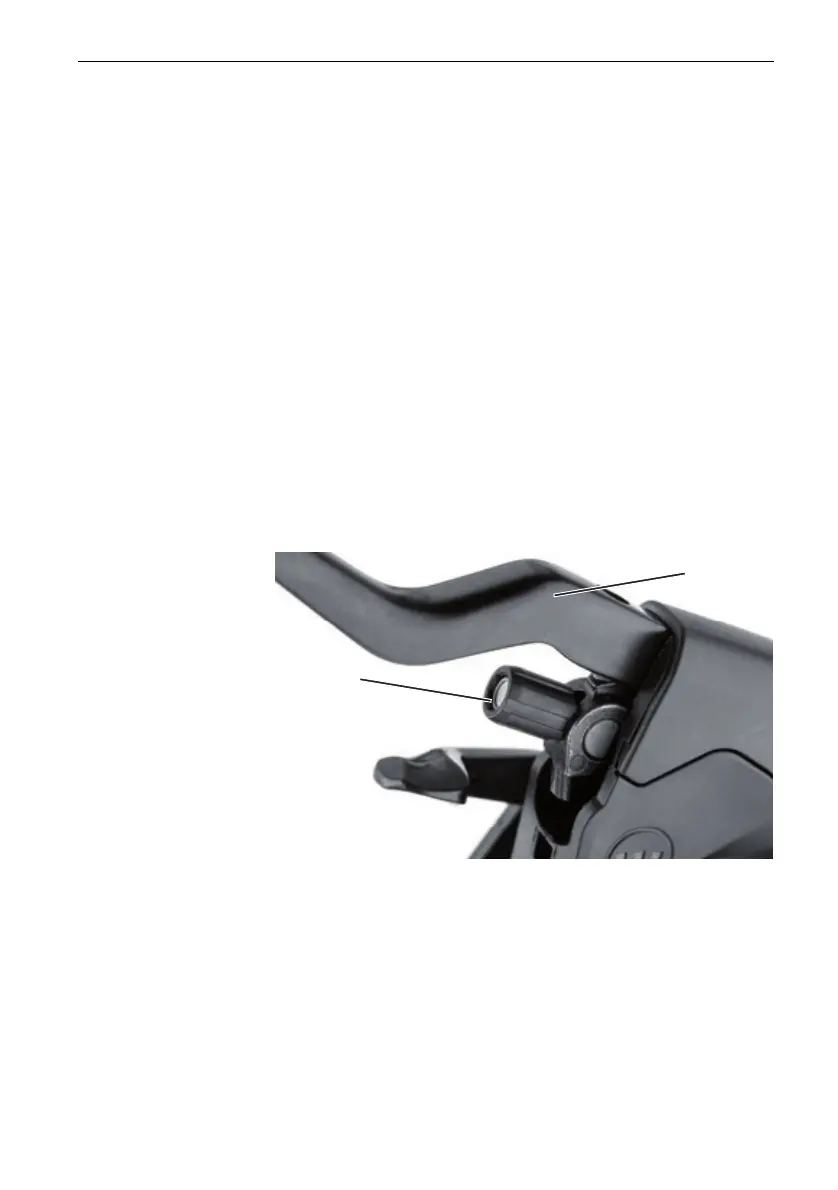

Figure 55: Brake lever (1) of the hydraulically operated rim brake with setting
bolt (2)
8.3.5.2 Hydraulically operated disc brake
Alternative
The brake pad wear on the disc brake does not require
readjustment.
