Transportation, storage and assembly
 Before mounting, ensure that the quick release
flange is extended. Open the lever completely.

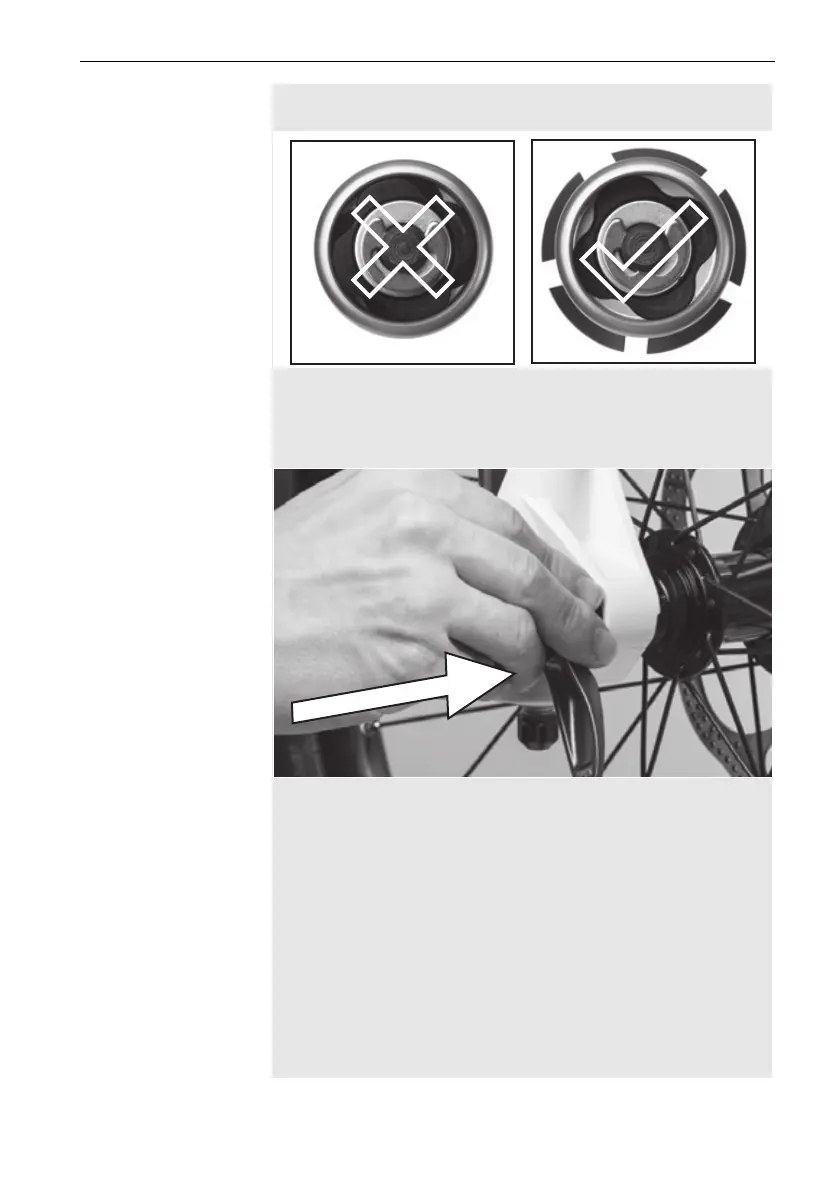

Figure 27: Open and closed flange
 Push in the quick release until you hear a clicking
sound. Make sure that the flange is extended.
Figure 28: Pushing the quick release in
