6.3 Adjusting the brake lever
6.3.1 Adjusting the pressure point on a Magura brake
lever
The pressure point setting is adjusted using the twist
knob.
 Turn the twist knob towards the plus (+) symbol.
 The brake lever moves closer to the handlebar grip.
Re-adjust the grip distance as necessary.
 The lever pressure point activates sooner.

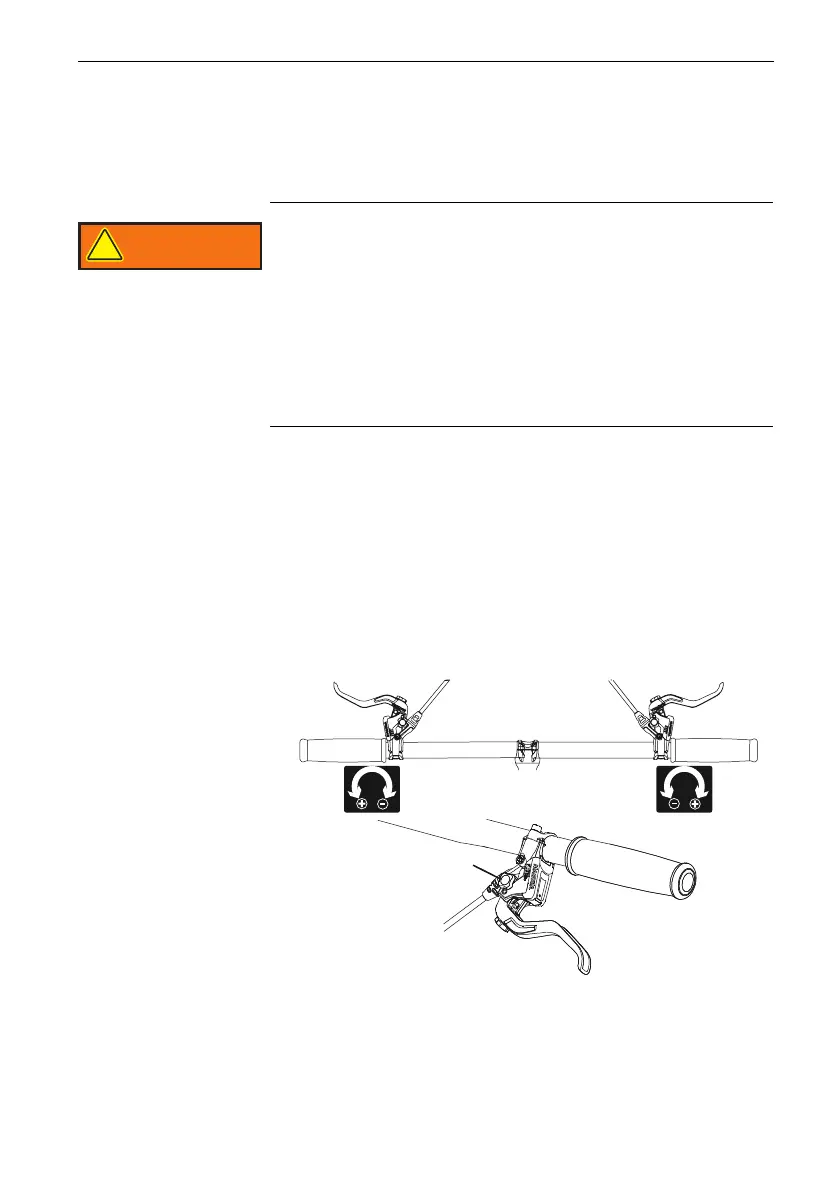

Figure 39: Using the twist knob (1) to adjust the pressure point
Brake failure due to incorrect setting
If the pressure point is set with brakes where the brake
lining and brake disc have reached their wear limit, the
brakes may fail and cause an accident with injury.
 Before you set the pressure point, ensure that the
brake lining and brake disc have not reached their
wear limit.
