Pegasus Piazza - Figure 37: Open (2) and Closed (1) Clamping Lever on the Stem

MY19-P073_1.0_09.11.2018
62
Before the first ride

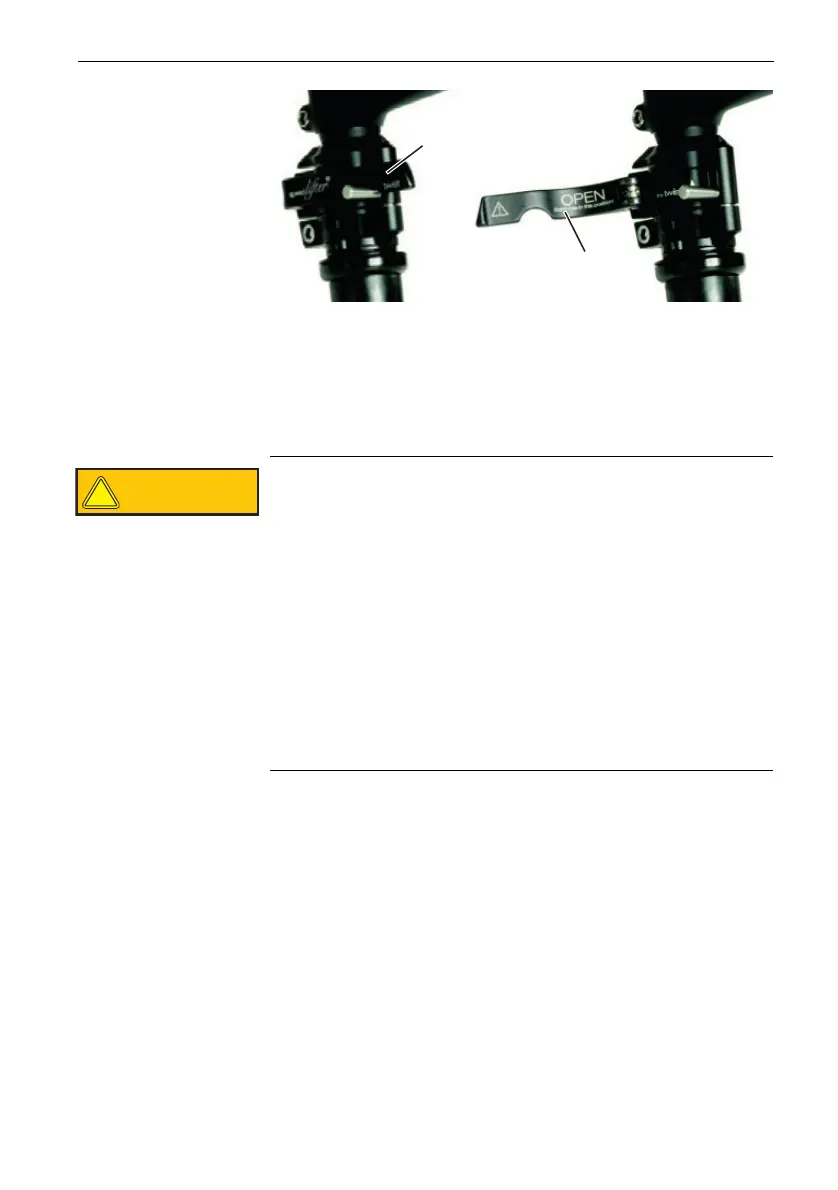

Figure 37: Open (2) and closed (1) clamping lever on the stem; by.schulz
speedlifter used as an example
6.2.2 Turning the handlebars to the side
Alternative
 Open the clamping lever.
 Pull the locking lever on the stem up, and
simultaneously pivot the handlebars into the
desired position.
 You feel the locking lever click into place.
 Pull out the handlebars to the required height.
 Lock the quick release.
1
2
Crash caused by incorrectly set clamping force
Excessively high clamping force will damage the quick
release and cause it to lose its function.
Insufficient clamping force will cause a detrimental
transmission of force. This will result in a crash and
injuries.
 Never fasten a quick release using a tool (e.g.
hammer or pliers).
 Only use the clamping lever with the specified set
clamping force.
CAUTION
!
