Transportation, storage and assembly
 Check the position and clamping force of the quick
release lever. The quick release lever must be flush
with the lower housing. You must be able to see a
slight impression on the palm of your hand when
you close the quick release lever.

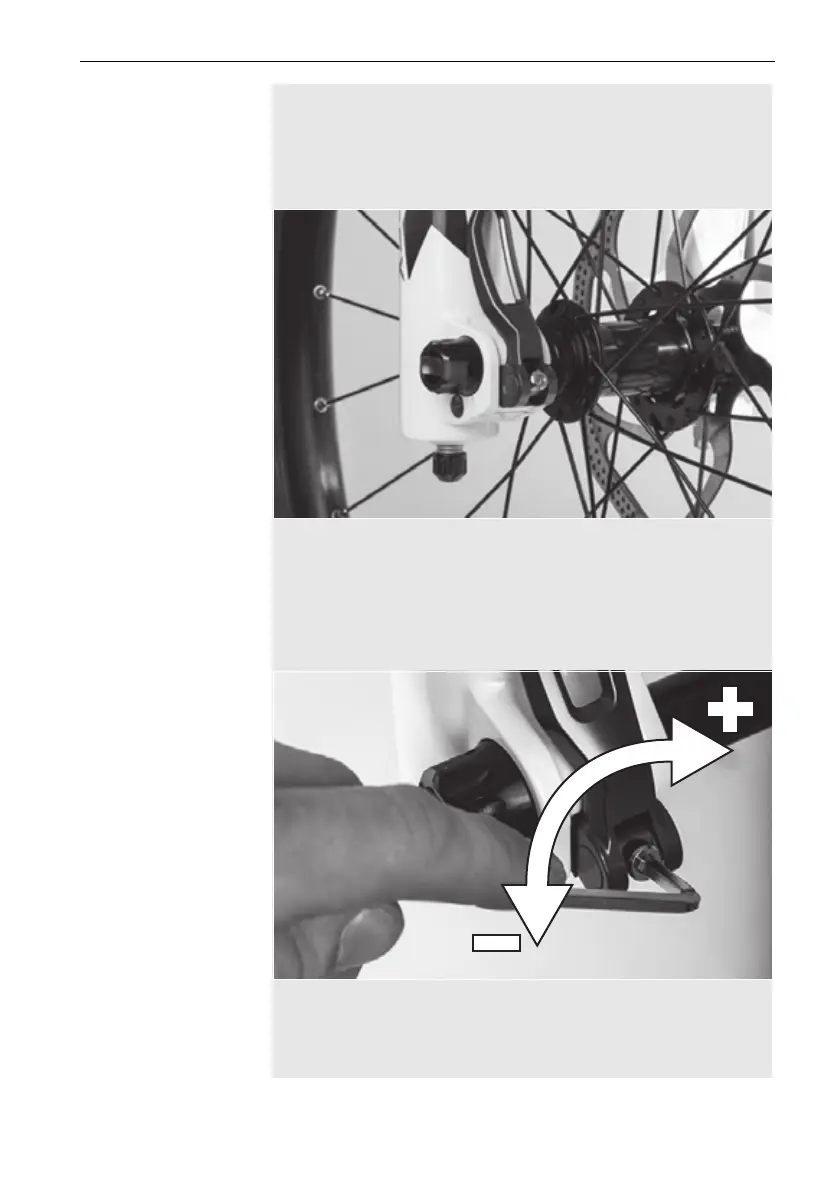

Figure 25: Perfect position for the clamping lever
 Use a 4 mm hexagon socket spanner to adjust the
clamping lever clamping force if required.
Afterwards, check the quick release lever position
and clamping force.
Figure 26: Adjusting the quick release clamping force
