Pegasus Piazza - Figure 12: Brake System with a Back-Pedal Brake, Example

MY19-P073_1.0_09.11.2018
33
Description
1Brake disc
2 Brake calliper with brake linings
3 Handlebars with brake levers
4 Front wheel brake disc
5 Rear wheel brake disc
On a bicycle with a disc brake, the brake disc is
screwed permanently to the hub of the wheel.
The brake lever is pulled to increase brake pressure.
The brake fluid is used to transfer pressure through
the brake lines to the cylinders in the brake calliper.
The braking force is boosted by a speed reduction and
applied to the brake linings. These apply the brake
disc mechanically. If the brake lever is pulled, the
brake linings are pressed against the brake disc, and
the movement of the wheel is decelerated until it
comes to a stop.
3.4.3 Back-pedal brake
Alternative

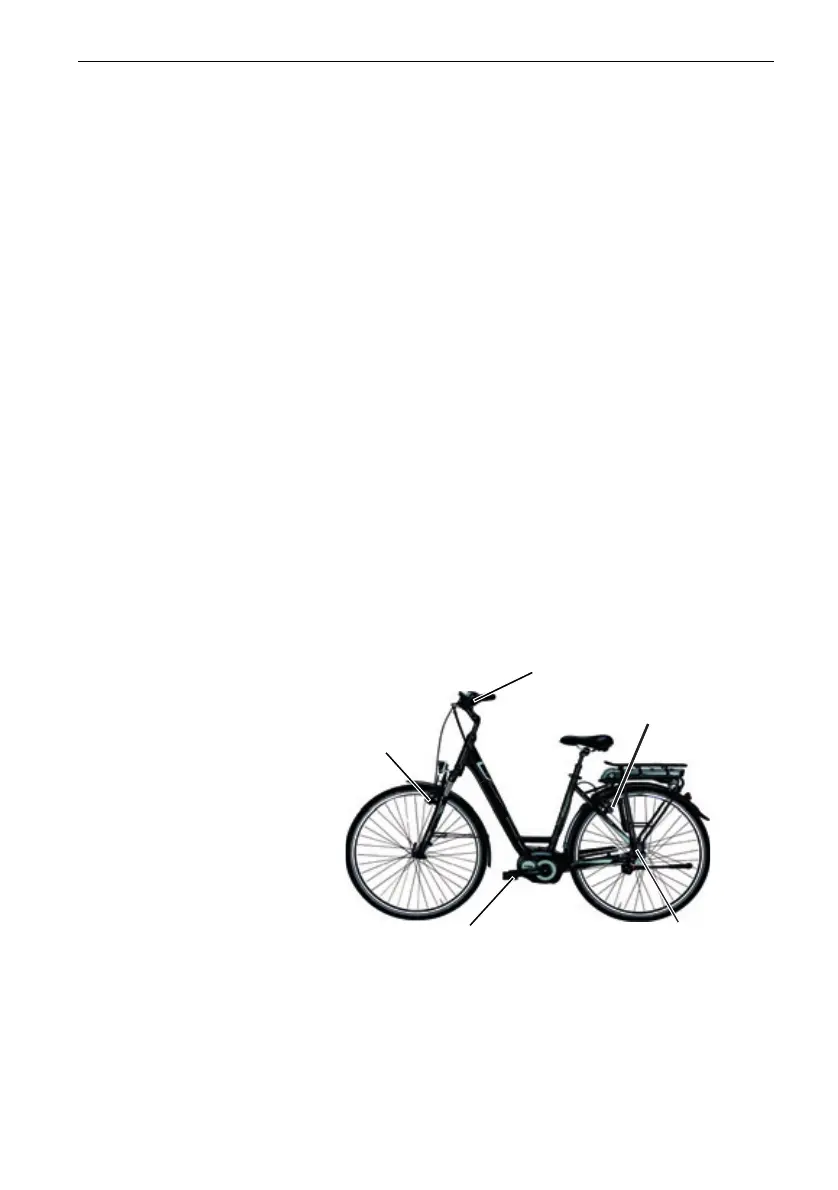

Figure 12: Brake system with a back-pedal brake, example
1 Rear wheel rim brake
2 Handlebars with brake levers
5
2
3
4
1
