PEP Modular Computers Modular Computers RS485 - Weights & Measures

SMART I/O User’s Manual
March 12, 1996
©1996 PEP Modular Computers GmbH
Page 1 - 4
Introduction
Weights & Measures

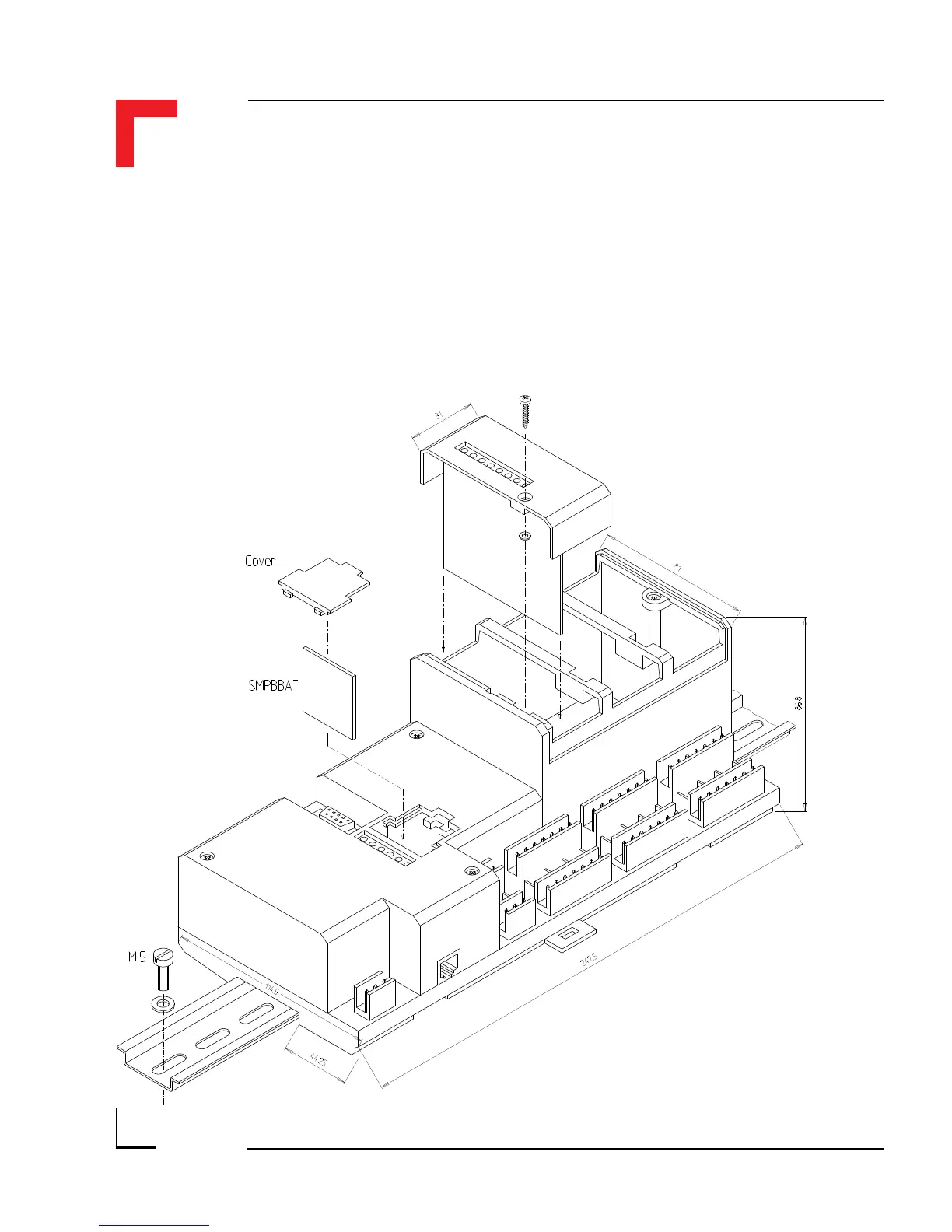

The following line drawings serve to illustrate the method of fixing the
controller to a DIN rail or brackets for wall/cabinet mounting. Note that all
measurements are in millimetres.
DIN Rail Mounting
