Chapter 4 Digital Modules
Connection

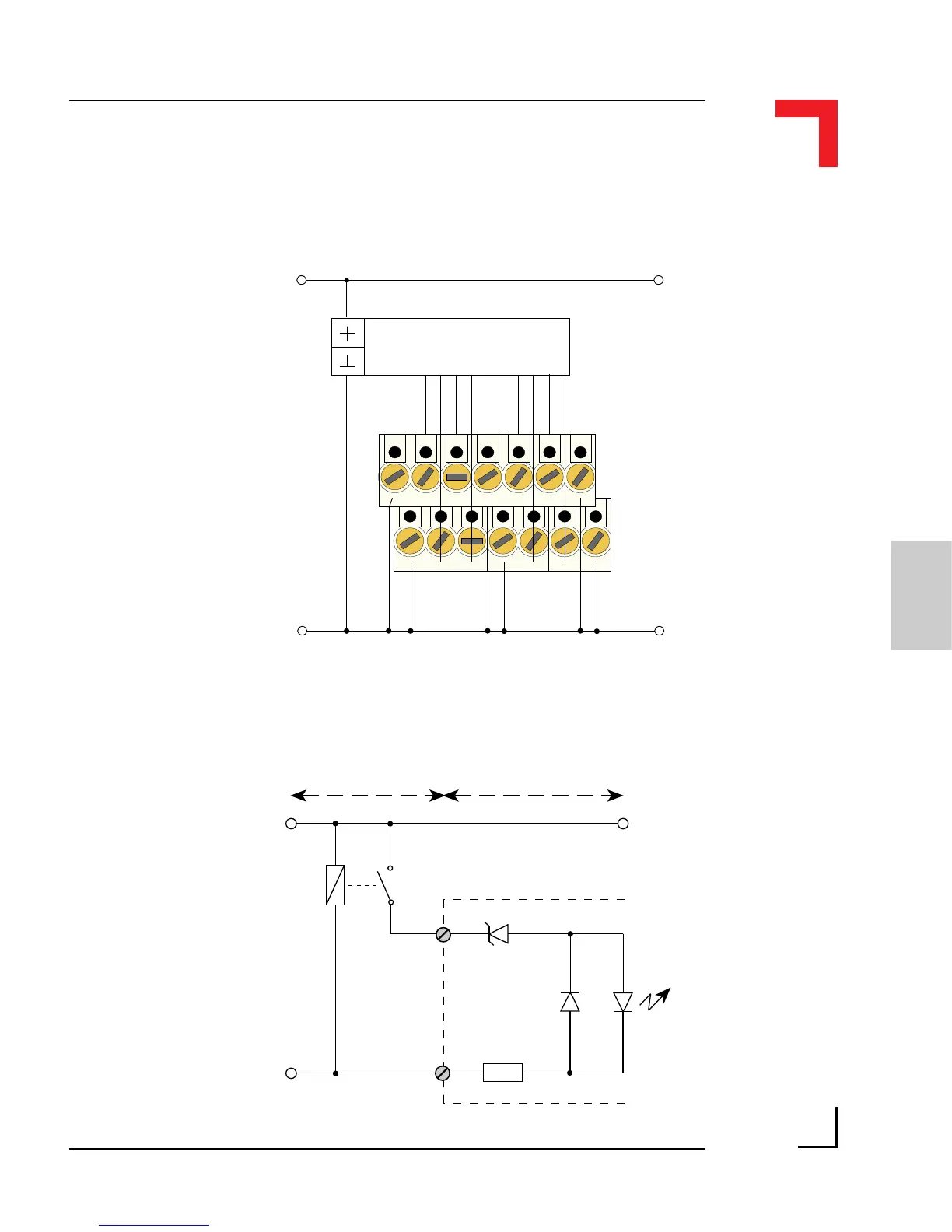

Input Circuit
+Vcc (24V)
Gnd (0V)
IN0
G0EXT
K1
5K1
8V2
Typ: Common GND
LL4448
System Interface
User/Input
Interface
+Vcc (24V)
Gnd (0V)
G0EXT G4EXT G1EXT G5EXT G23EXT G67EXT
IN7
IN3
IN6 IN2 IN5 IN1 IN4 IN0
Digital Sensors
Pin 1
Pin 2
Pin 13
Pin 14
